Volume Air Flow Sensor

Measurement Method
1. Disconnect the volume air flow sensor connector, and connect the special tool (test harness: MB99i 348) in between. (All terminals should be connected.)

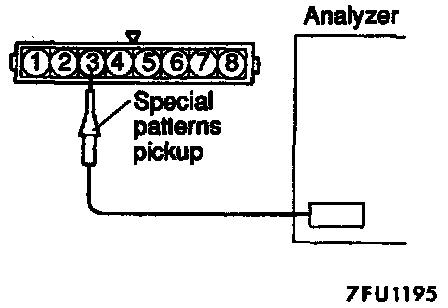

2. Connect the analyzer special patterns pickup to volume air flow sensor connector terminal 3.

Alternate method (Test harness not available)
1. Connect the analyzer special patterns pickup to Electronic Control Module terminal 70.

Standard Wave Pattern (Observation Conditions)
Function Special Patterns
Pattern Height Low
Pattern Selector Display
Engine RPM idle

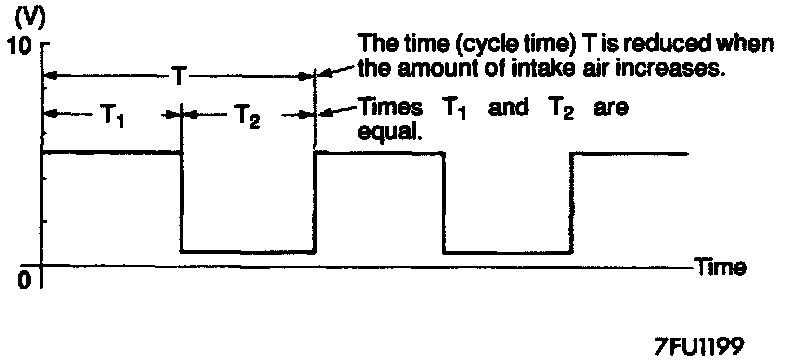

Standard Wave Pattern




Wave Pattern Observation Points
Check to be sure that cycle time T becomes shorter and the frequency increases when the engine speed is increased.






Examples Of Abnormal Wave Patterns
- Example 1
Cause of Problem
Sensor interface malfunction.
Wave Pattern Characteristics
Rectangular wave pattern is output even when the engine is not started.

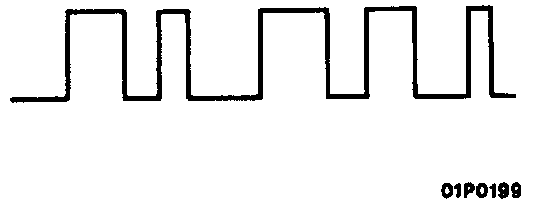

- Example 2
Cause of Problem
Damaged rectifier or vortex generation column
Wave Pattern Characteristics
Unstable wave pattern with non-uniform frequency. However, when an ignition leak occurs during acceleration, the wave pattern will be distorted temporarily, even if the volume air flow sensor is normal.
