General Specifications

FEDERAL MODELS
Fuel System MFI
Bore & Stroke 3.41 x 3.94
Compression Ratio 9.5
Maximum Net H.P. @ RPM 141 @ 5500
Maximum Torque Ft. Lbs. @ RPM 148 @ 3000
Normal Oil Pressure, Psi. [01] 11.4

CALIFORNIA MODELS
Bore & Stroke 3.41 x 3.94
Compression Ratio 9.5
Maximum Net H.P. @ RPM 138 @ 5500
Maximum Torque Ft. Lbs. @ RPM 148 @ 3000
Normal Oil Pressure, Psi. [01] 11.4

[01]-- Minimum at idle speed w/oil temperature between 167 to 194°F.

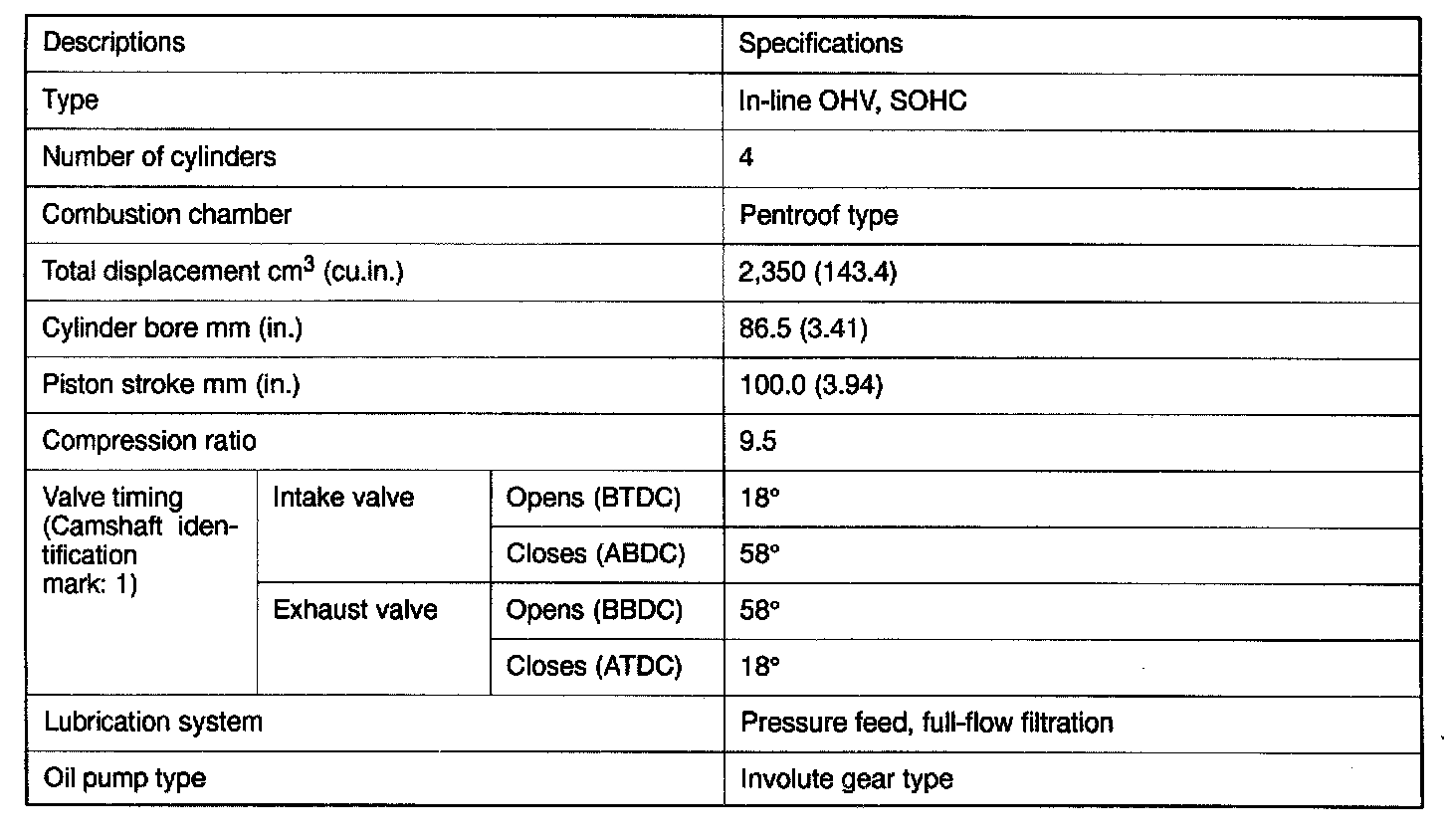

GENERAL SPECIFICATIONS

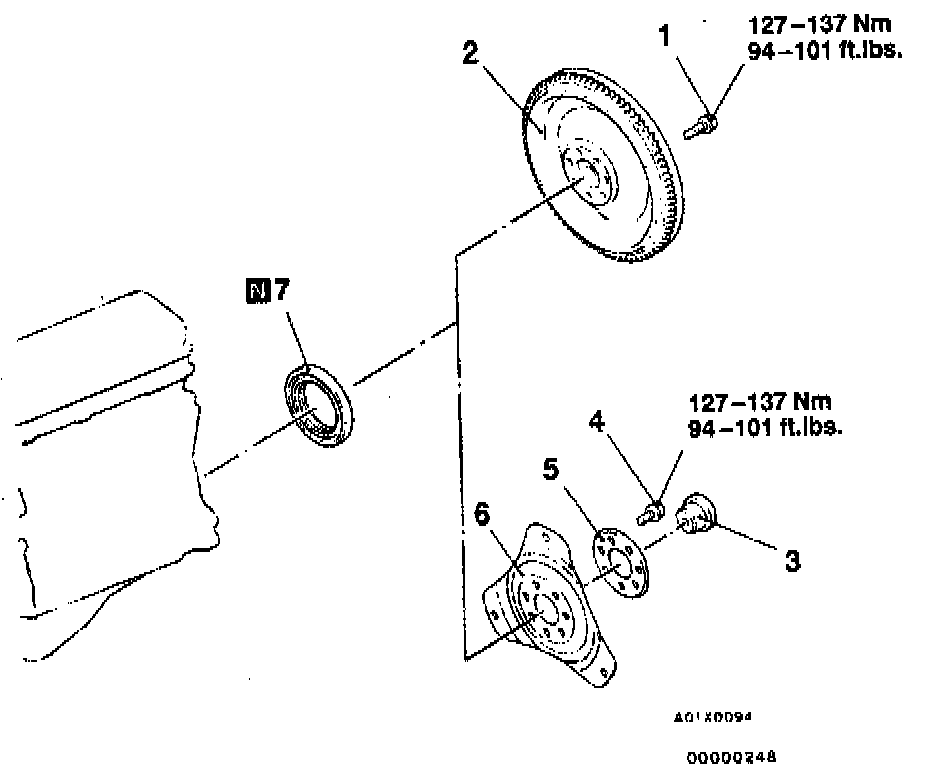

FLEX (DRIVE) PLATE TORQUE

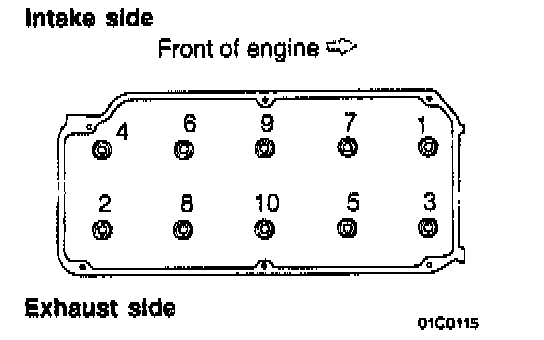

CYLINDER HEAD REMOVAL PATTERN

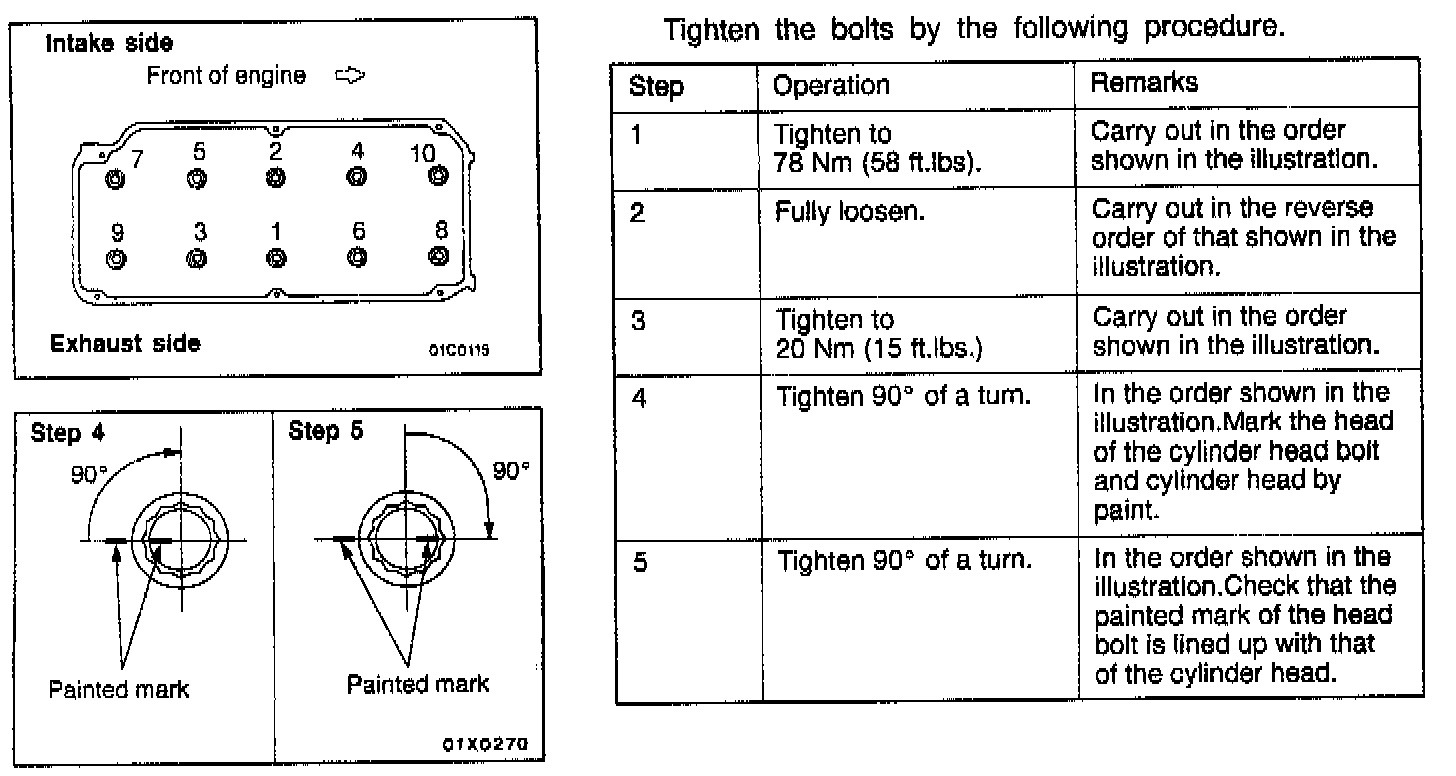

CYLINDER HEAD INSTALLATION
