Home >> Mitsubishi >> 1994 >> Mirage L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Drive Belt

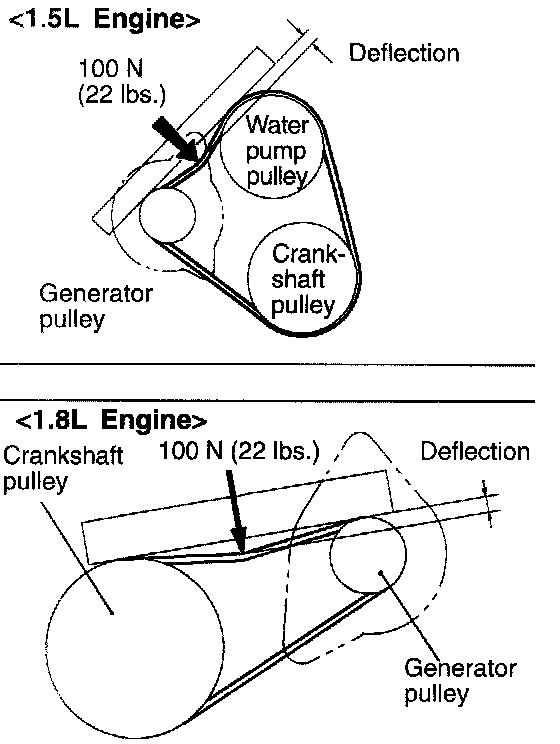

Drive Belt

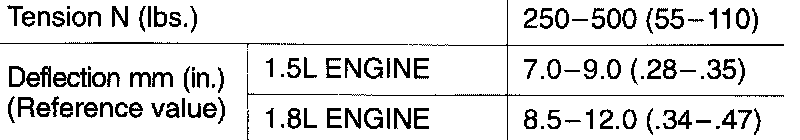

Standard value
