Coolant Temperature Sensor/Switch (For Computer): Service and Repair

INSTALLATION

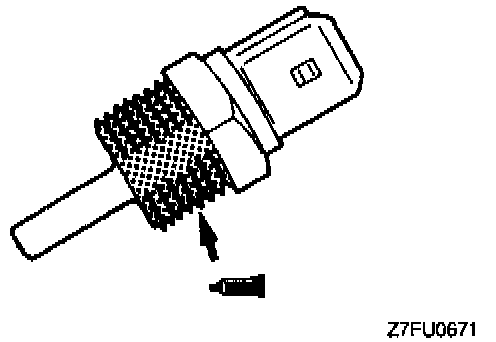

1. Apply sealant to threaded portion.

Specified sealant: 3M NUT locking Part No. 4171 or equivalent

2. Install engine coolant temperature sensor and tighten it to specified torque.

Sensor tightening torque: 30 Nm (22 ft.lbs.)

3. Fasten harness connectors securely.
