Engine Speed Sensor: Locations

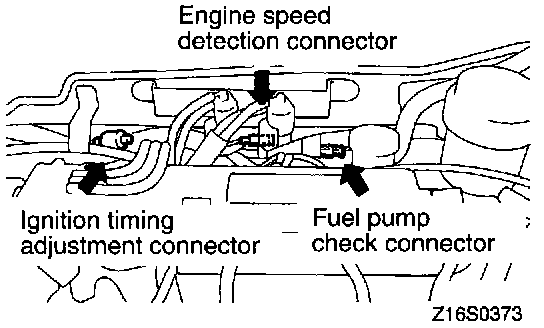

Ignition Timing Adjustment, Fuel Pump Check And Engine Speed Detection Connector:
