ECM Connector - Circuit Diagram Correction

NO:
TSB-98-13-006

DATE:
July, 1998

MODEL:
1994 Mirage 1.5L

SUBJECT:
CIRCUIT DIAGRAM CORRECTION (ENGINE CONTROL MODULE CONNECTOR) - SERVICE MANUAL REVISION

[TSB Revision TSB-98-13-008]

PURPOSE

This bulletin corrects the MFI system circuit diagram for the Idle Air Control Motor to Engine Control Module (ECM) connector.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
1994 Mirage 1.5L

AFFECTED SERVICE MANUALS
1993-96 Mirage Service Manual, Volume 2, Pages 106

SERVICE MANUAL REVISIONS





1993-96 Mirage Service Manual Volume 2, Page 106

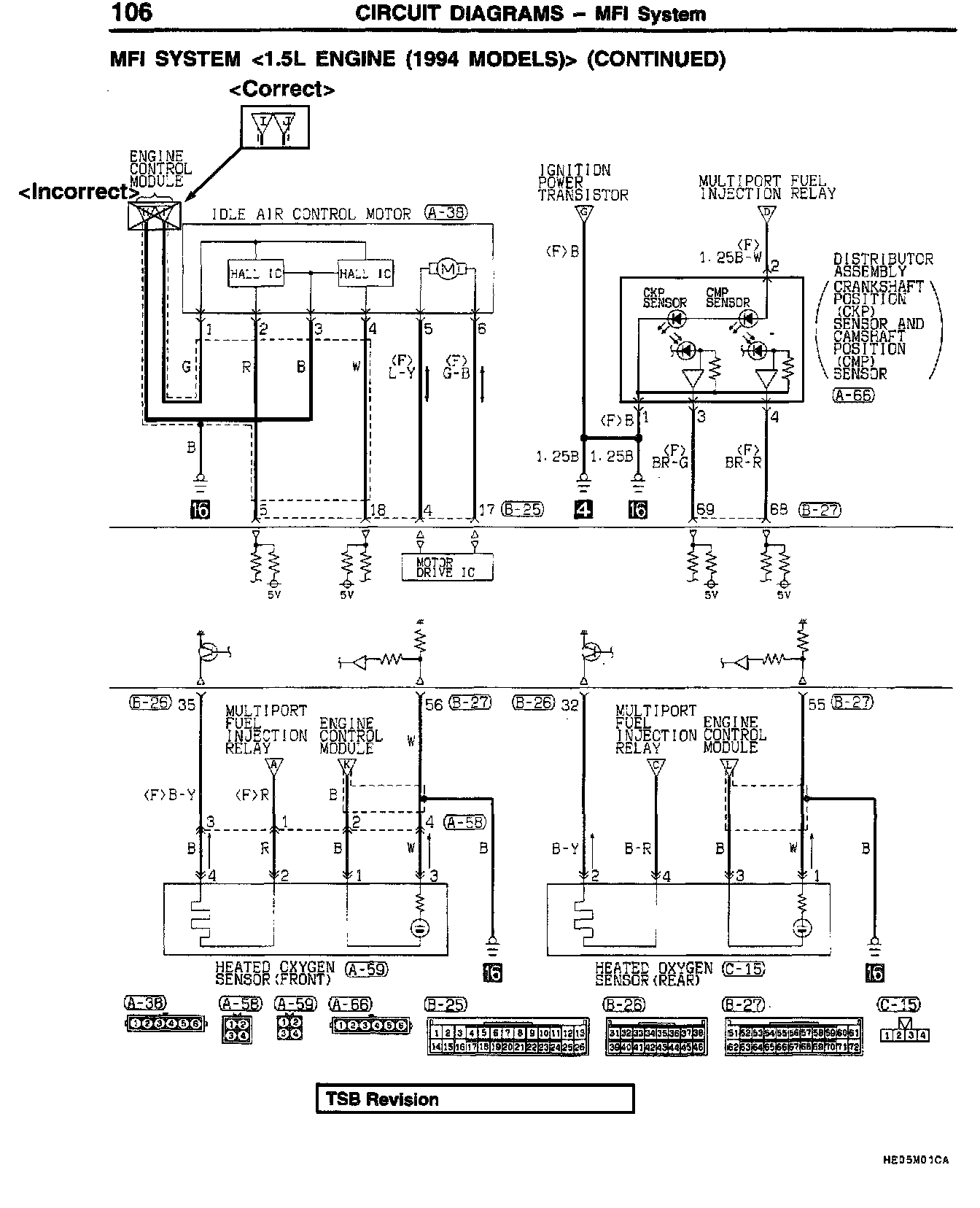

Correct the MFI system circuit as shown:
