Home >> Mitsubishi >> 1994 >> Mirage L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Federal Models

Federal Models

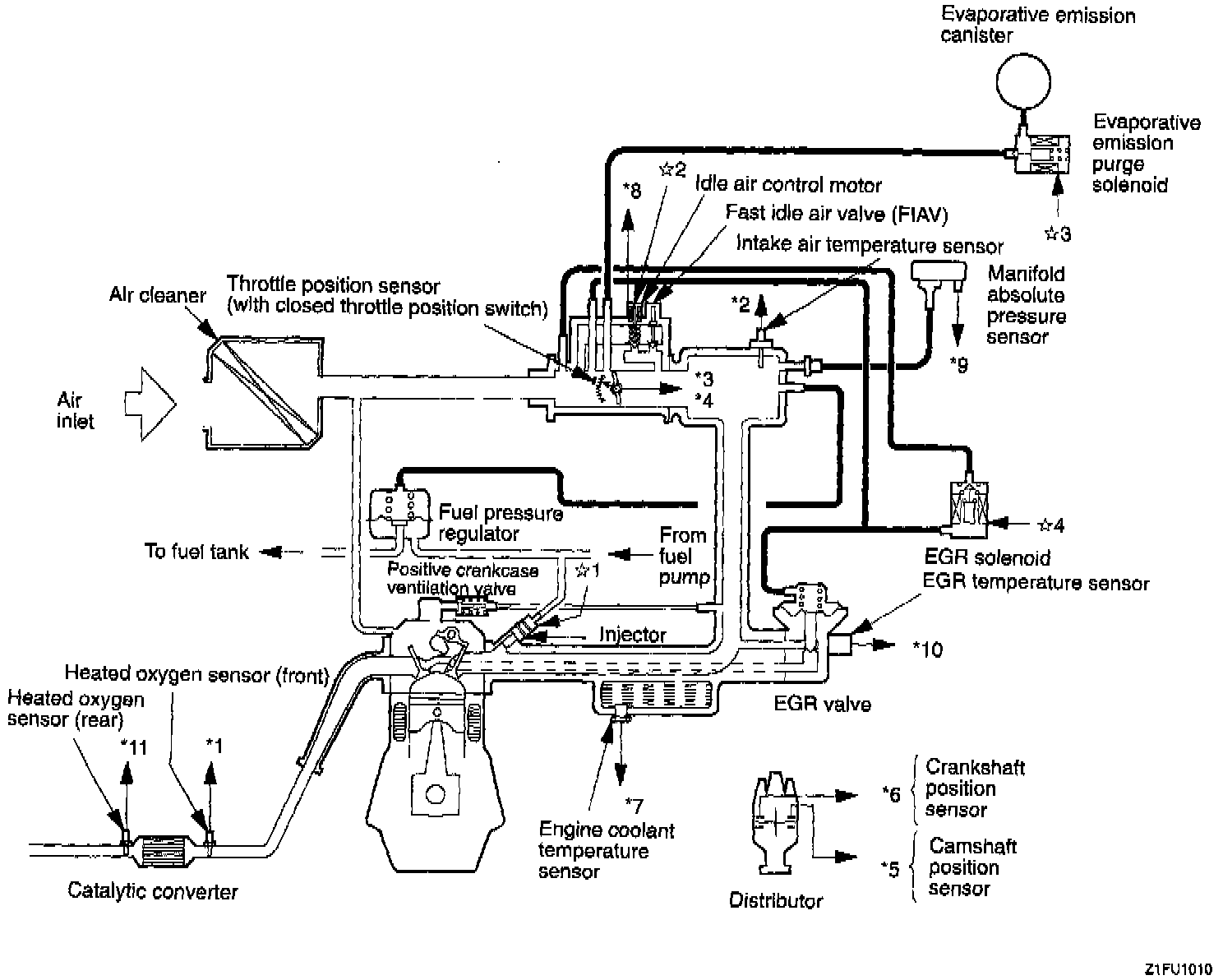

Federal - 94 - 95 Models, California - 93 - 94 Models:

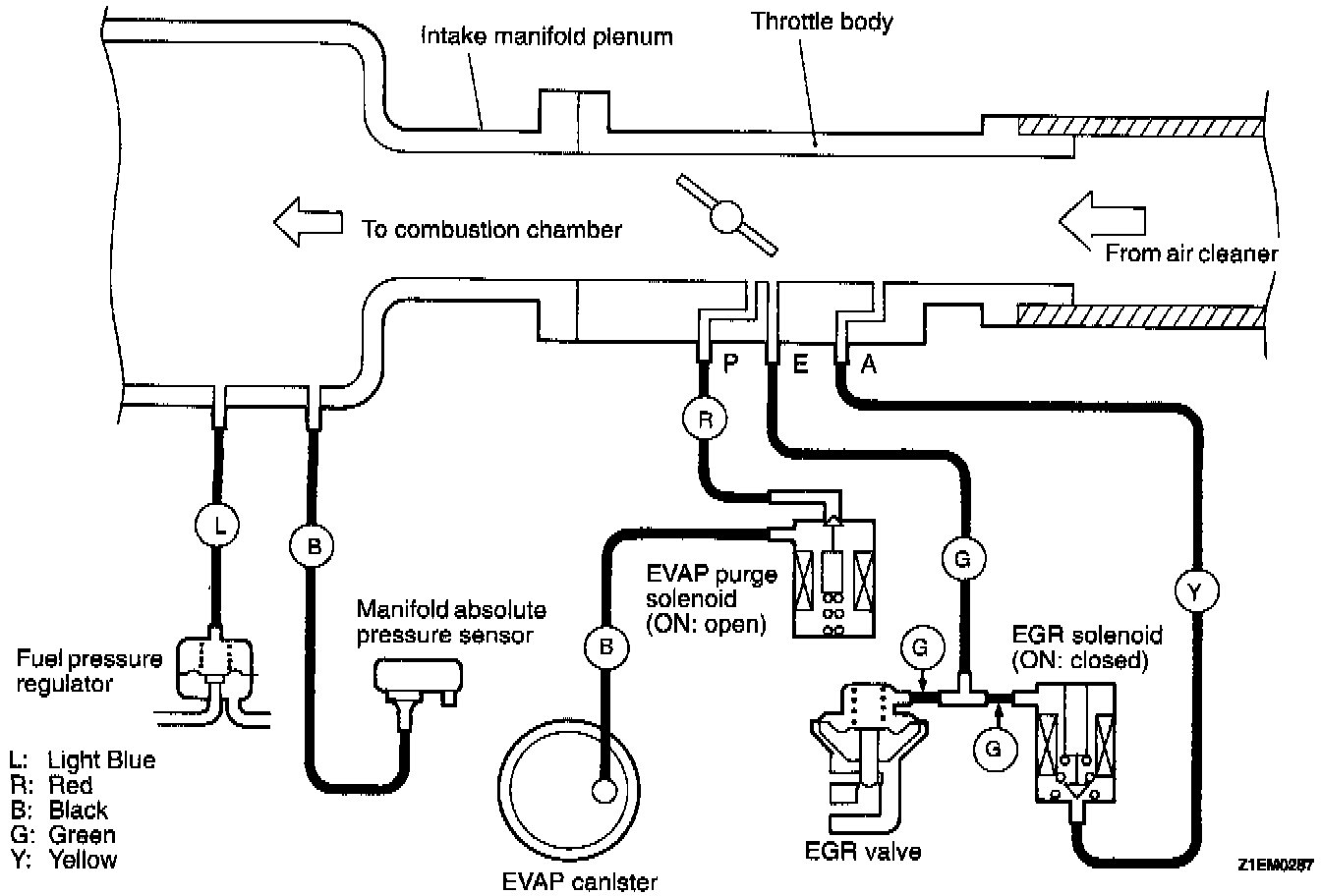

Fed: 94 - 95 Models; Ca: 93 - 94 Models:
