Disassembly and Reassembly Steps

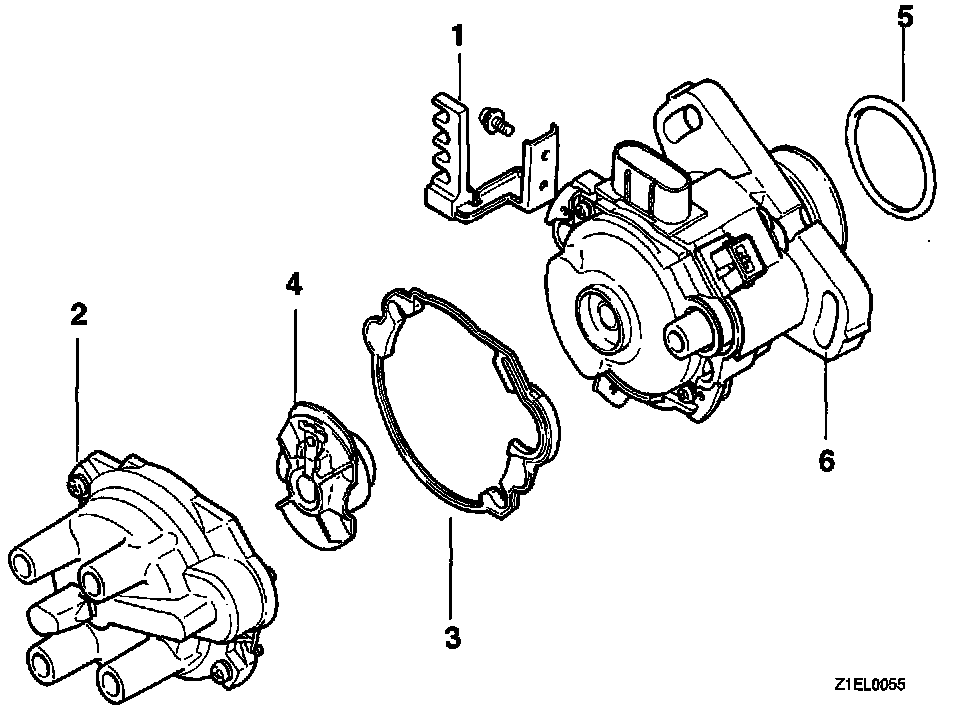

Distributor - Disassembly And Reassembly:

REMOVE
1. Cable clamp
2. Distributor cap
3. Packing
4. Rotor
5. O-ring
6. Distributor housing

INSTALL
1. Distributor housing
2. O-ring
3. Rotor
4. Packing
5. Distributor cap
6. Cable clamp
