Installation Service Points

1. Turn the crankshaft so that the No. 1 cylinder is at top dead center.

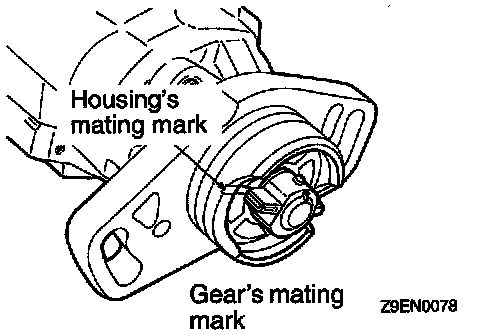

2. Align the distributor housing and gear mating marks.

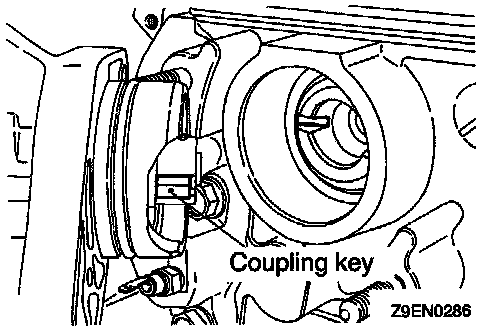

3. Install the distributor with the coupling key fitted in the keyway provided in the camshaft end.
