Ignition Switch: Service and Repair

Refer to Technician Safety Information for Air Bag Arming and Disarming.

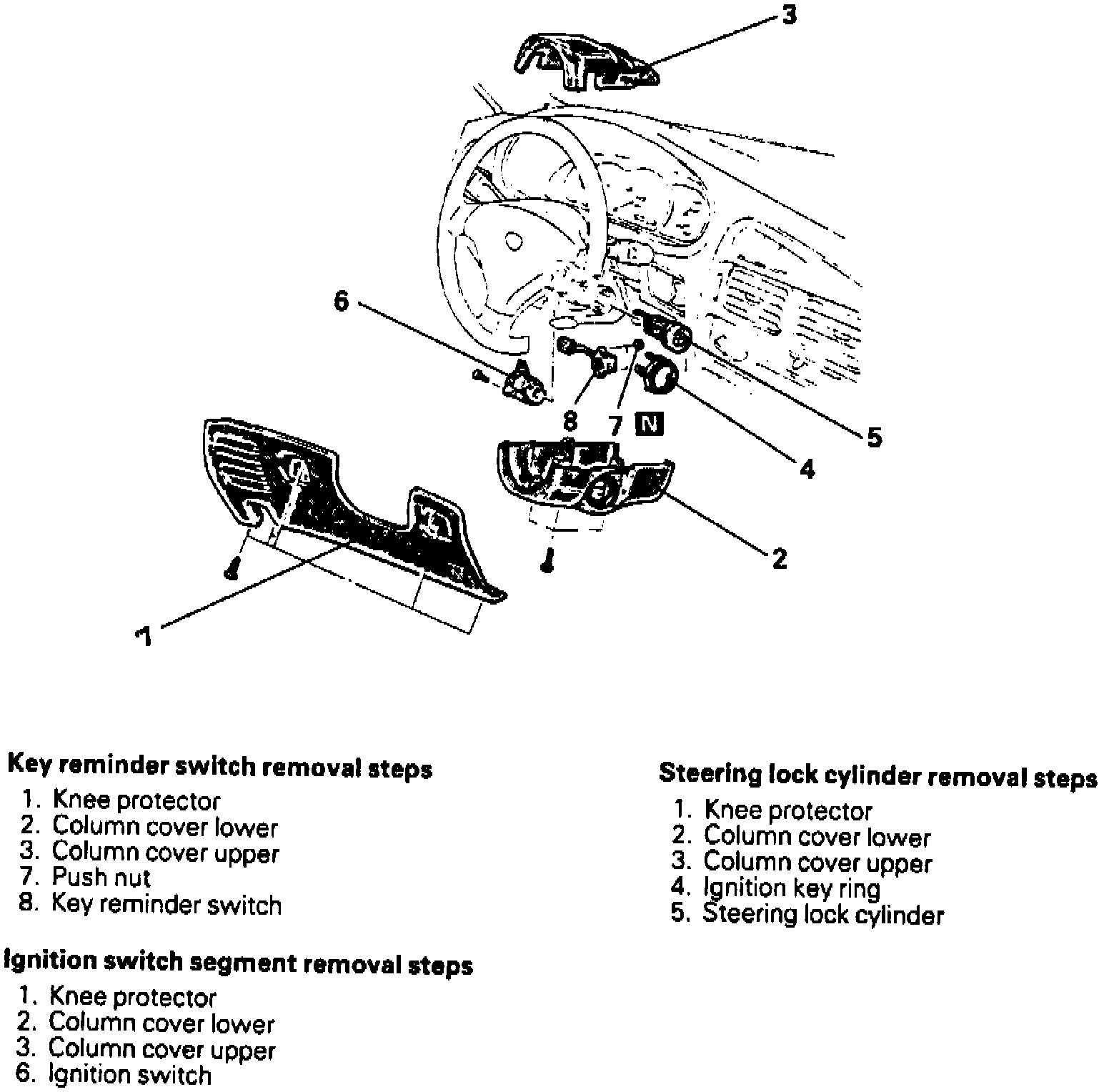

Fig. 3 Ignition Switch Replacement:

Remove components in order as shown, Fig. 3 noting following:
1. Disconnect battery ground cable.
2. Remove steering lock cylinder as follows:
a. Insert key in lock cylinder and turn to ACC position.

Fig. 7 Removing Lock Cylinder:

b. Using a small screwdriver, push lock cylinder lockpin in, Fig. 1, then remove lock cylinder.
3. Reverse procedure to install, noting following:

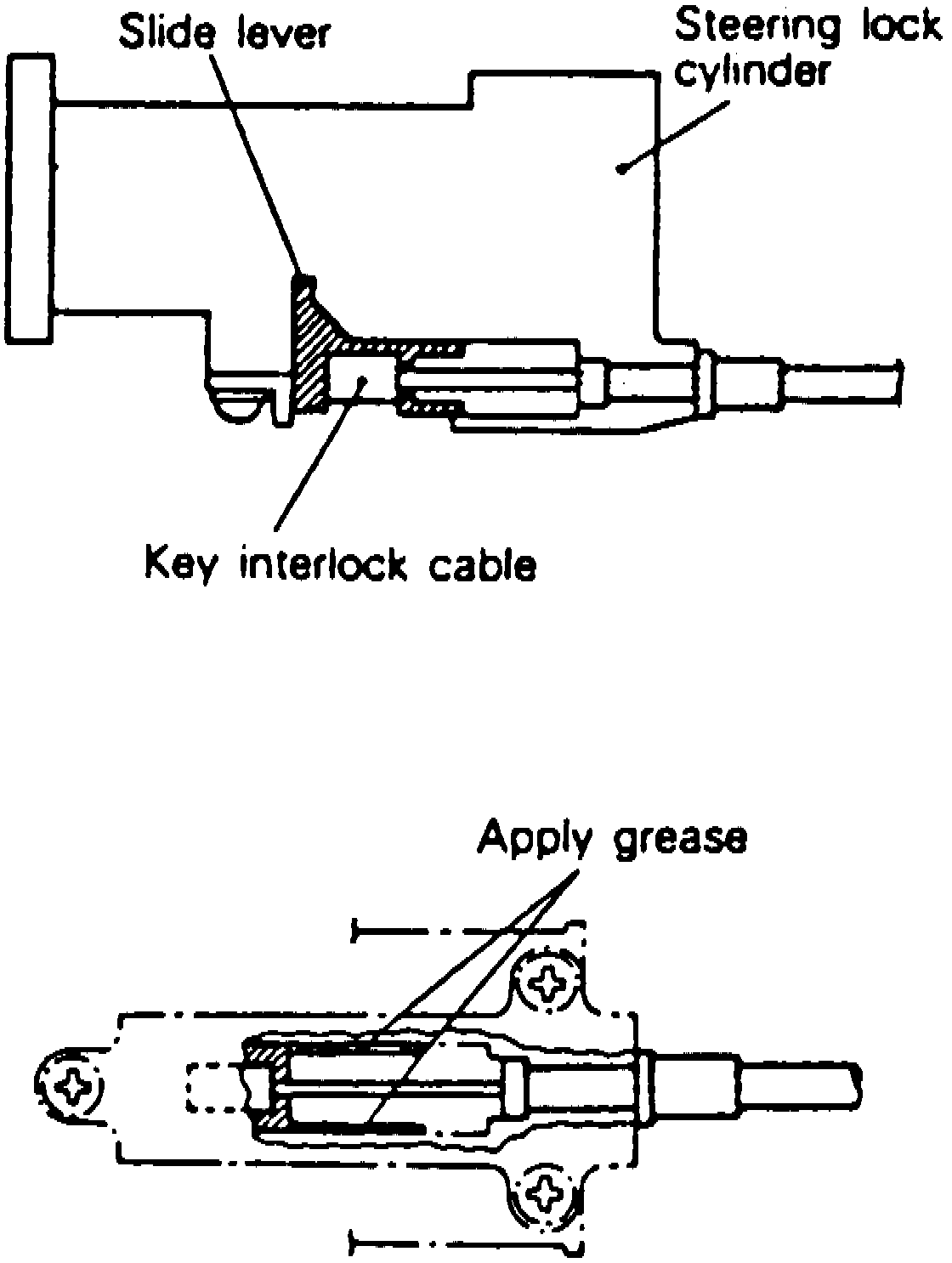

Fig. 4 Slide Lever Installation:

a. Connect key interlock cable to slide lever, Fig. 4.
b. Apply a light coat of multi-purpose grease as shown, Fig. 4.
c. With ignition switch Off or with key removed and brake pedal depressed, ensure shift lever cannot be moved from Park position.
d. Connect battery ground cable.
