Ignition Switch: Testing and Inspection

Ignition Switch Continuity Check:

1. Remove the knee protector, and the column cover.
2. Disconnect the wiring connector from the ignition switch, and connect an ohmmeter to the switch side connector.

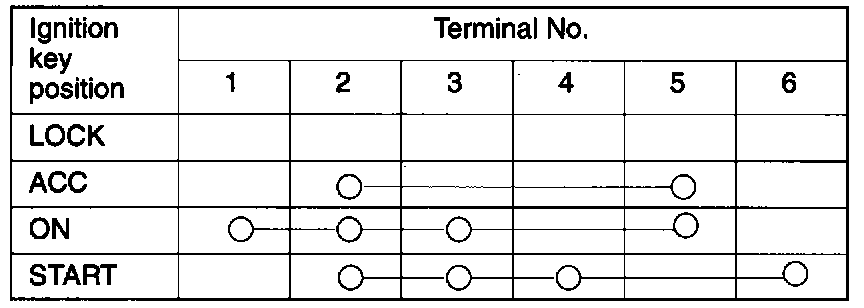

Ignition Switch Continuity Check Table:

3. Operate the switch, and check the continuity between the terminals.
