Firing Order: Specifications

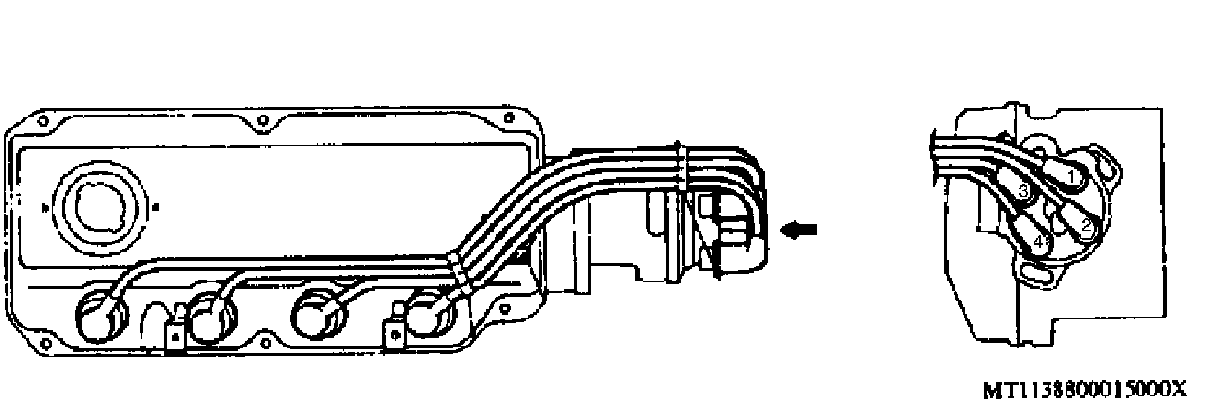

Firing Order
1-3-4-2
#1 cylinder is the first cylinder in front of the engine.
