Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

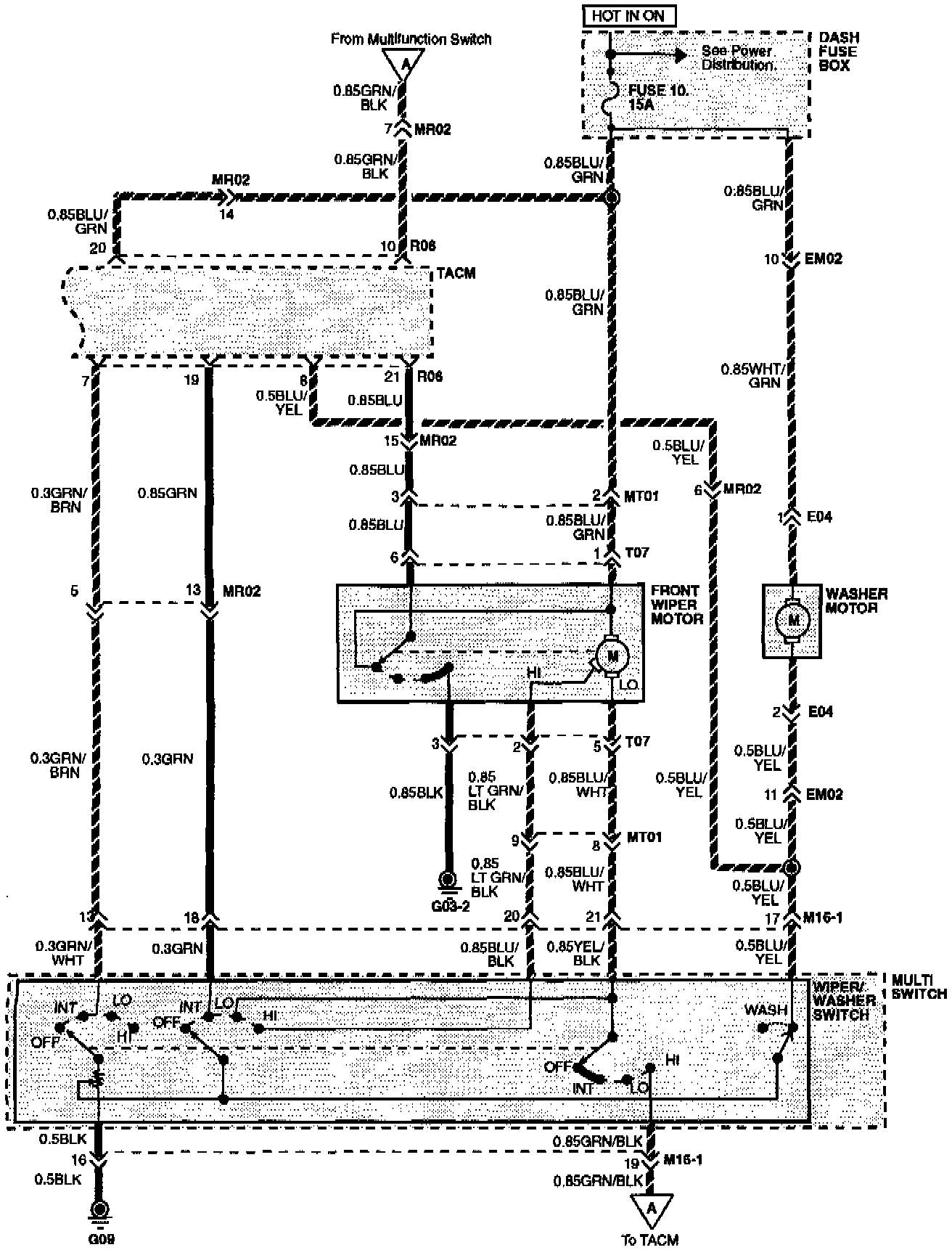

Time And Alarm Control (TAC) System Wiring Diagram:

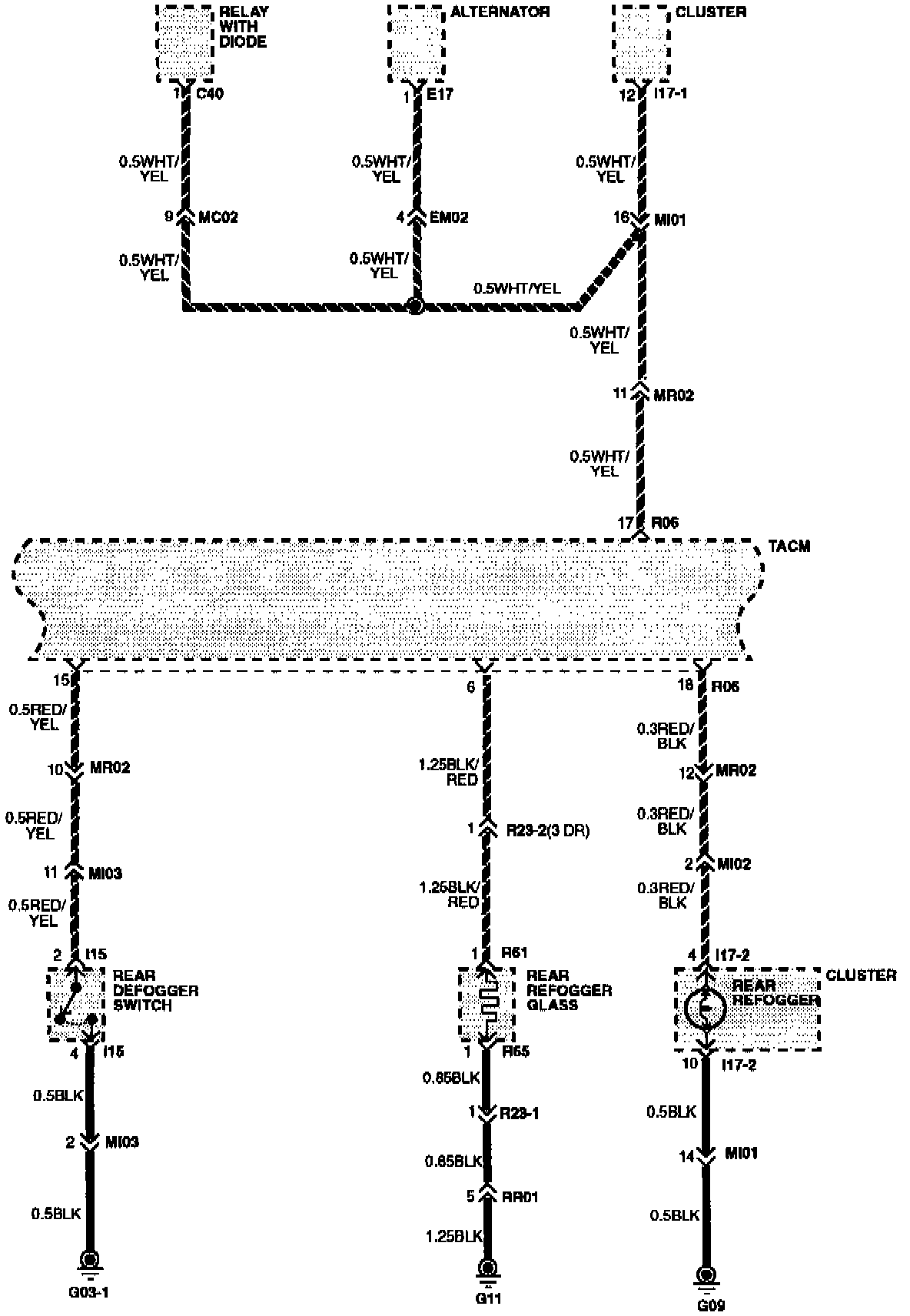

Time And Alarm Control (TAC) System Wiring Diagram:

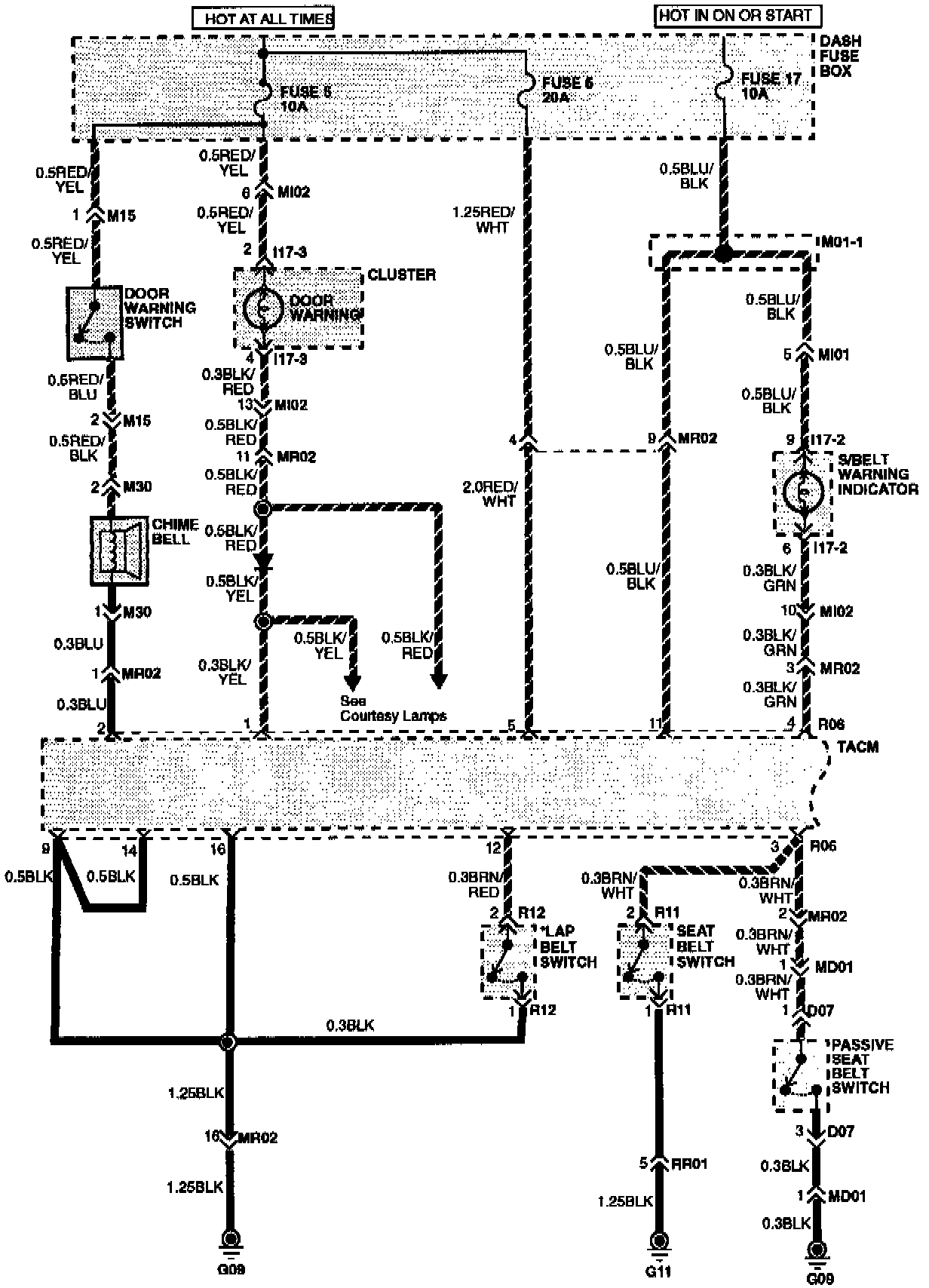

Time And Alarm Control (TAC) System Wiring Diagram:
