Mitsubishi
>>
1994
>>
Precis L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Relay Box In Passanger Compartment
Relay Box In Passanger Compartment

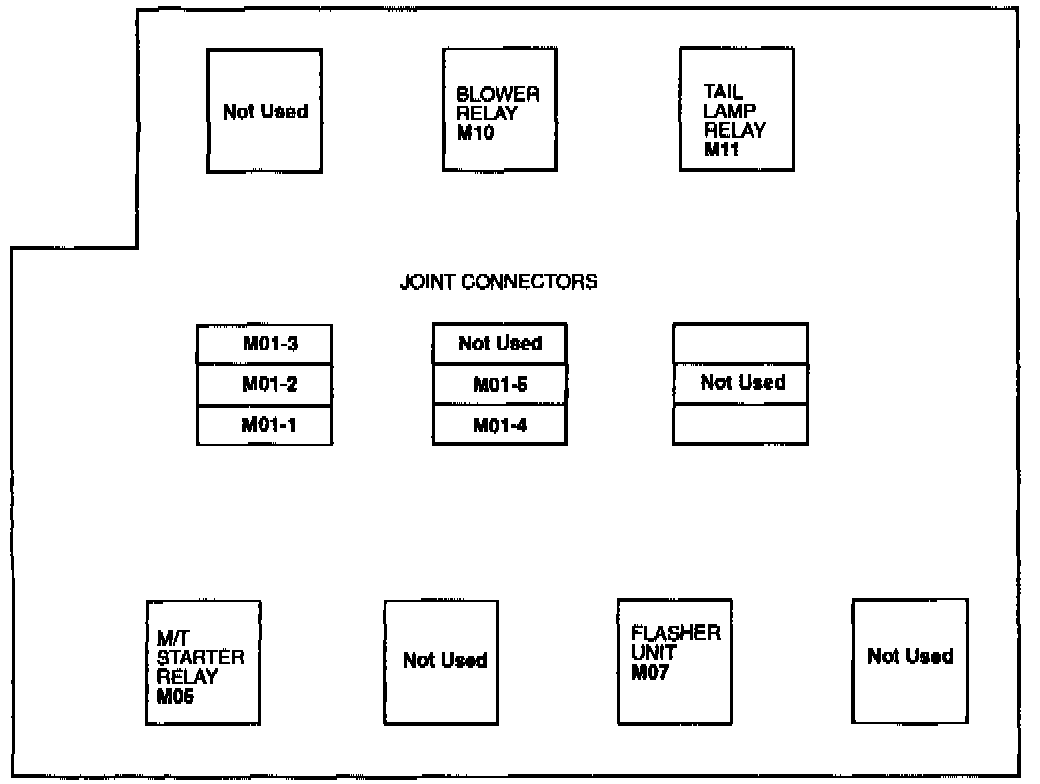

Fuse And Relay Information (Passenger Compartment Relay Box Layout):
