Electrical Diagrams

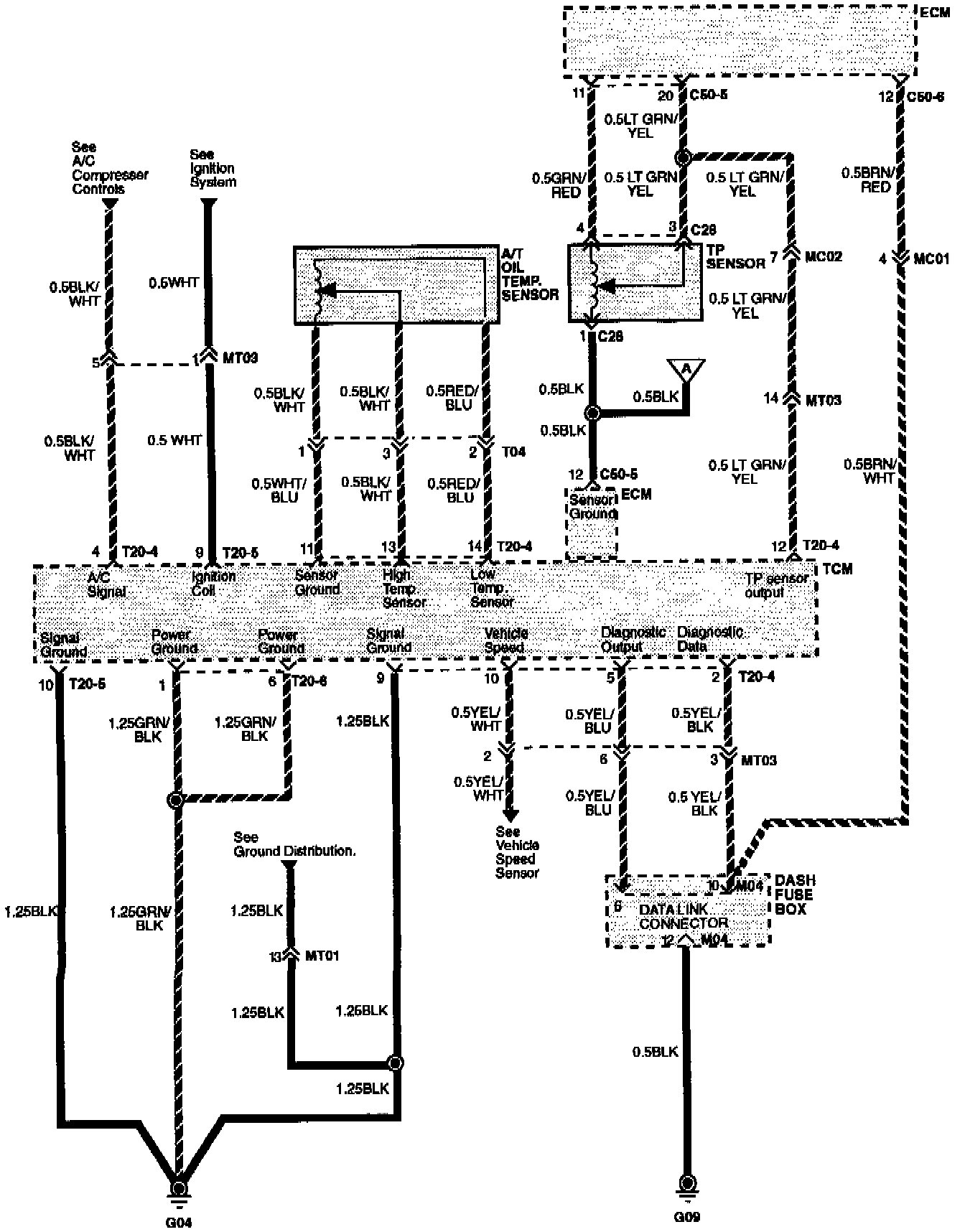

Electronic Transmission Lock Up Controls Wiring Diagram:

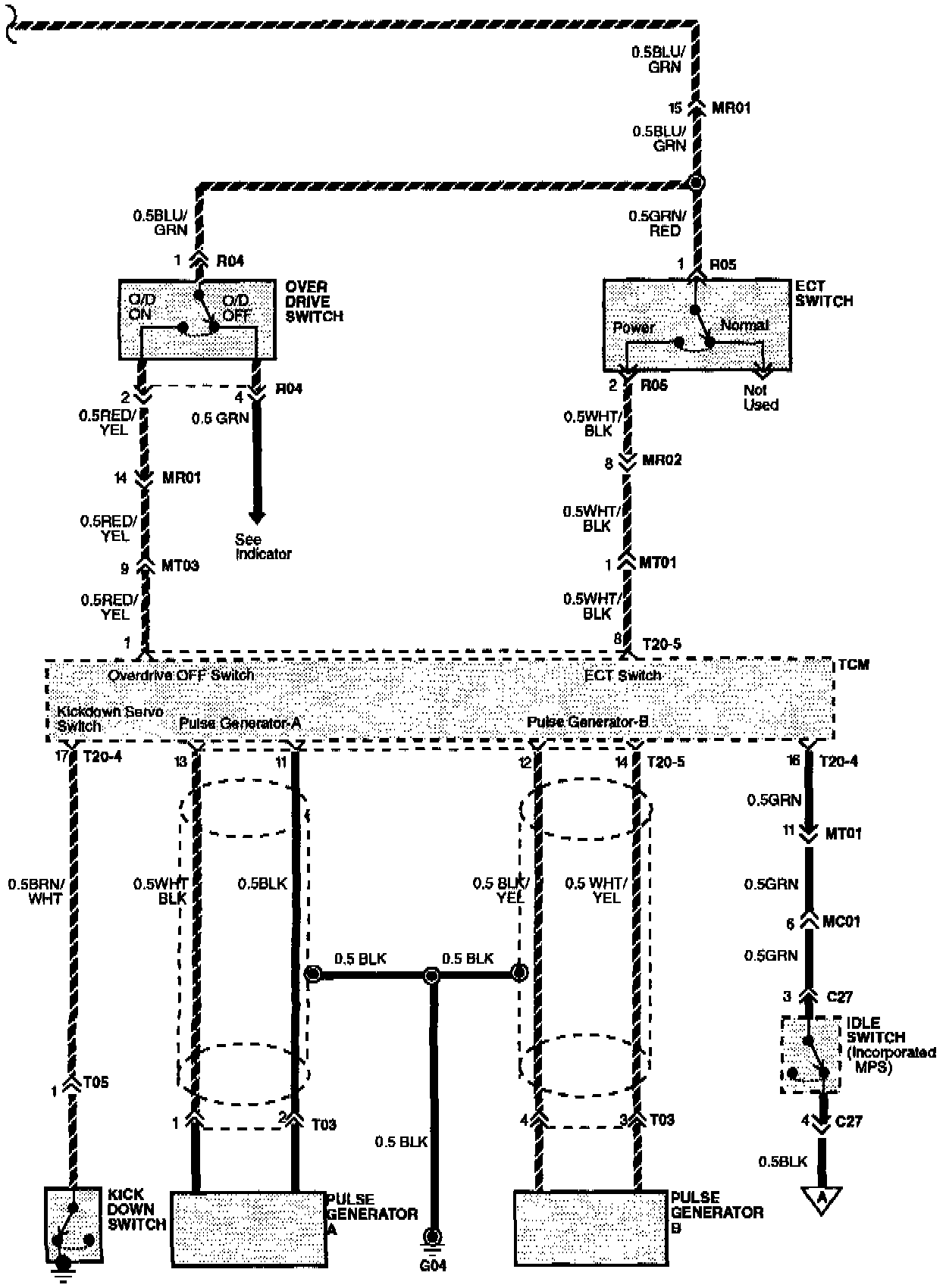

Electronic Transmission Lock Up Controls Wiring Diagram:

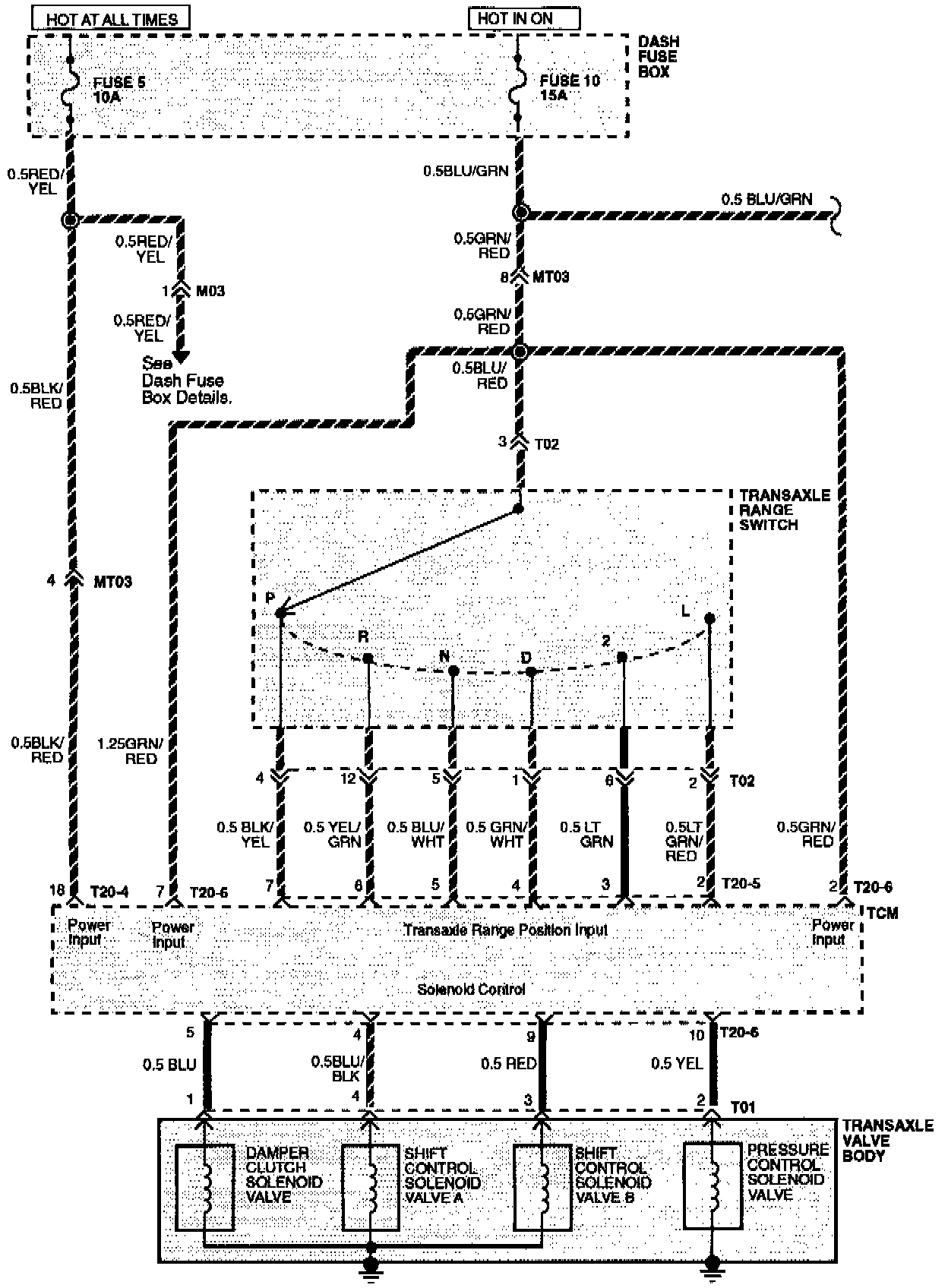

Electronic Transmission Lock Up Controls Wiring Diagram:
