Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1995
>>
Eclipse L4-1996cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Component Locations
Component Locations

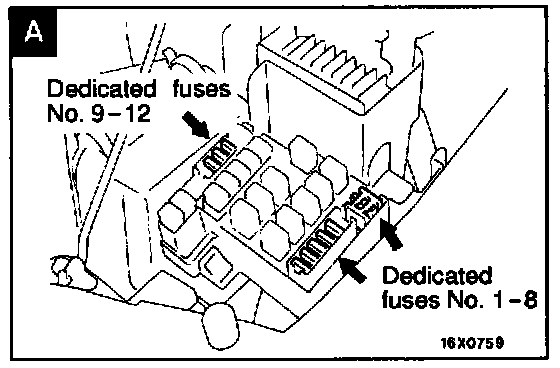

Dedicated Fuses 1 - 12:

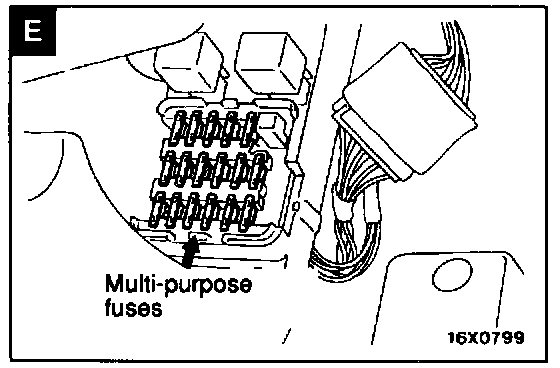

Multi-purpose Fuses:

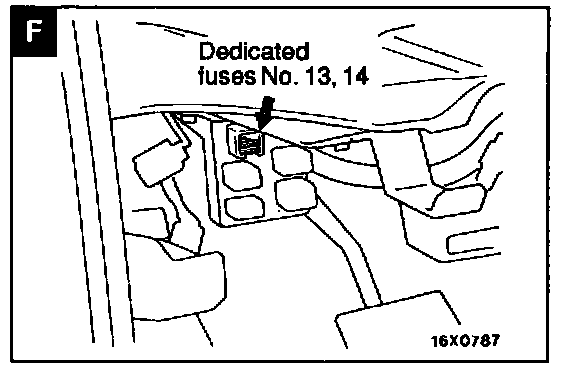

Dedicated Fuses No. 13 - 14:
