System Diagram





Engine Control Module:

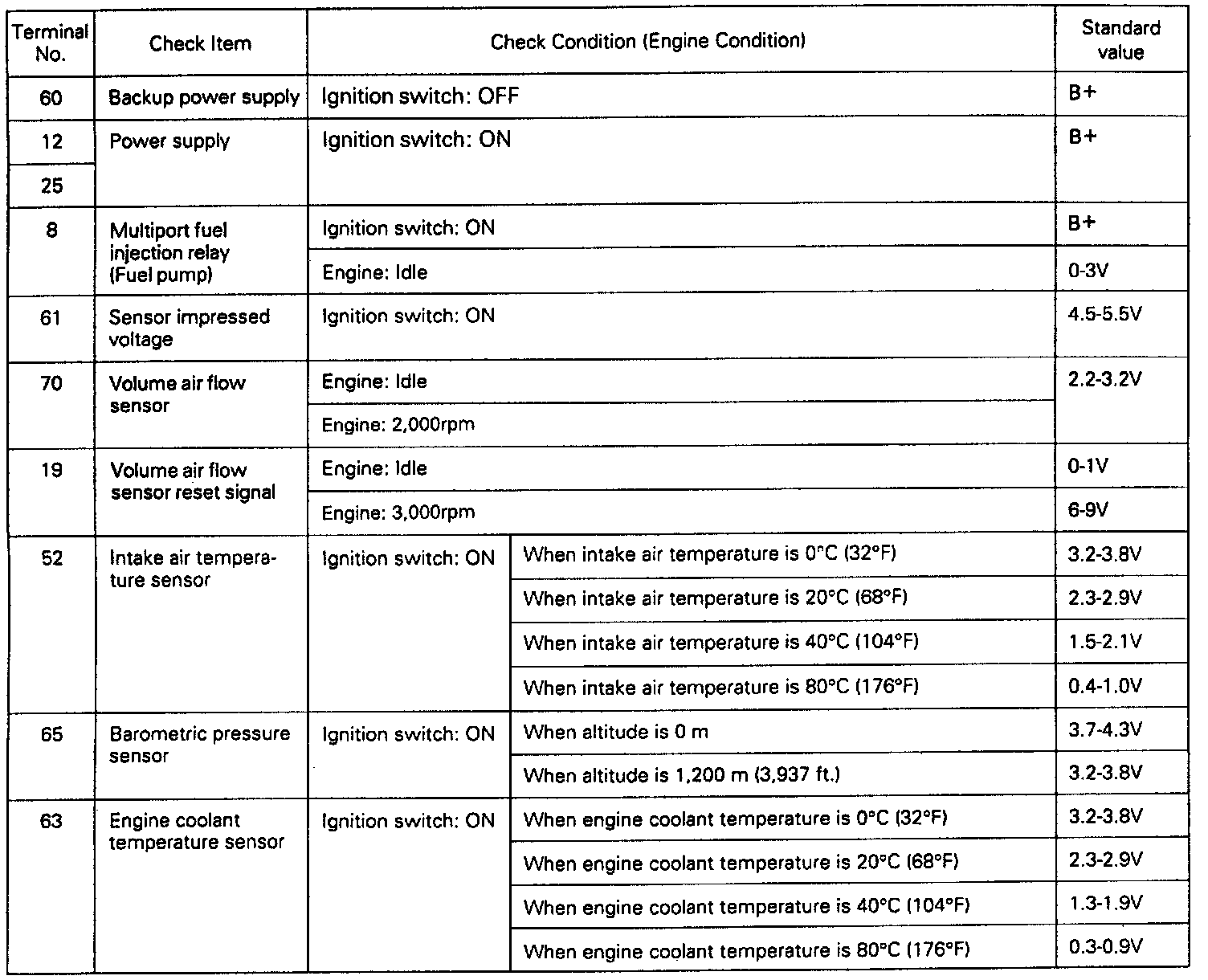

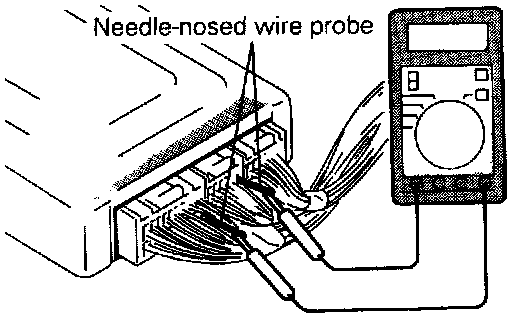

ECM Terminal Voltage Chart:

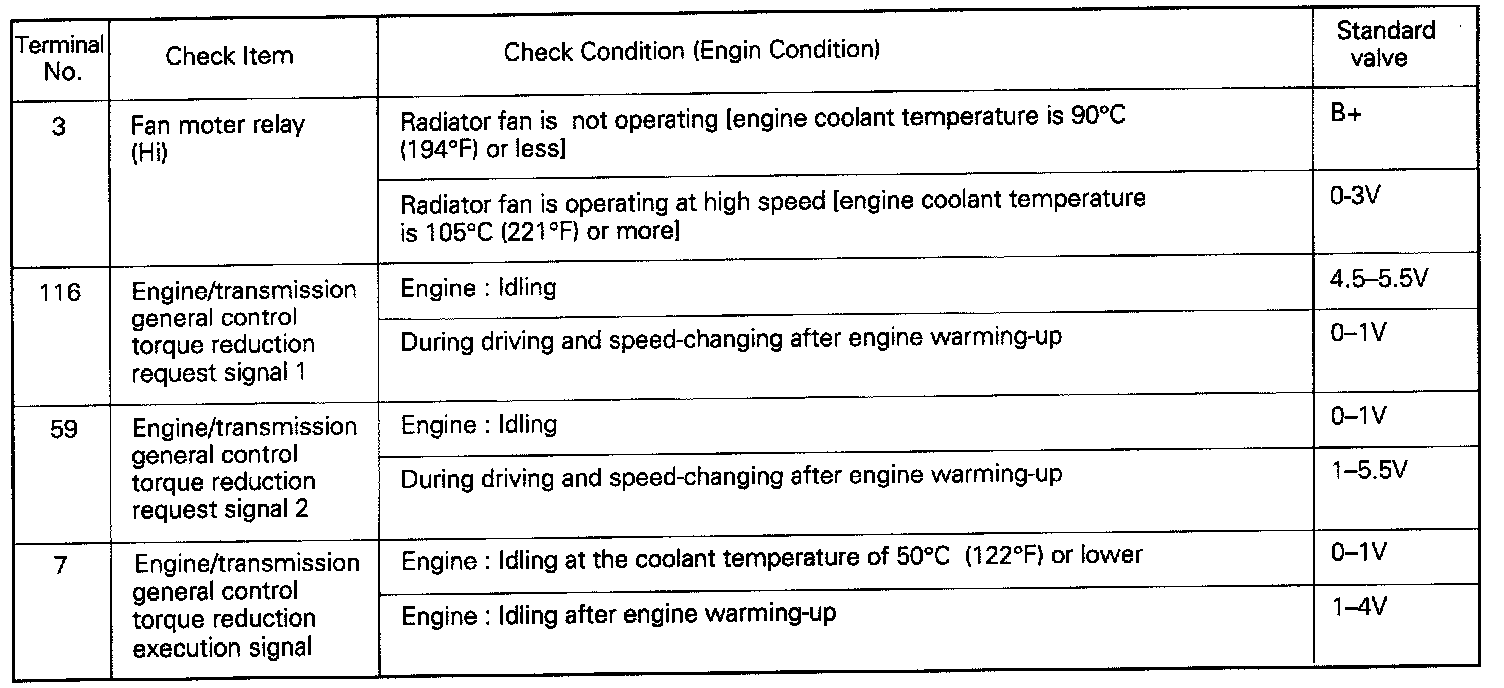

ECM Terminal Voltage Chart:

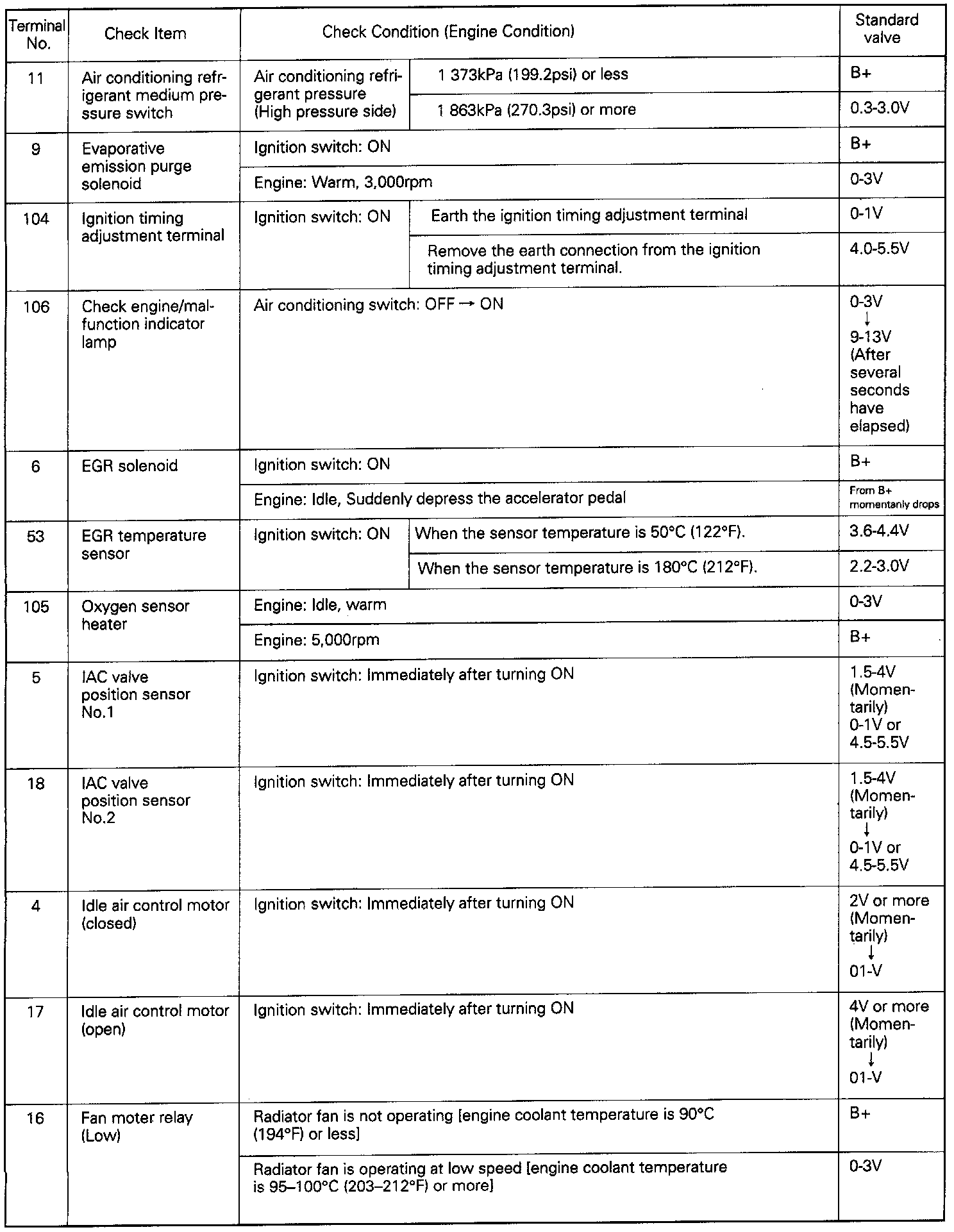

ECM Terminal Voltage Chart:

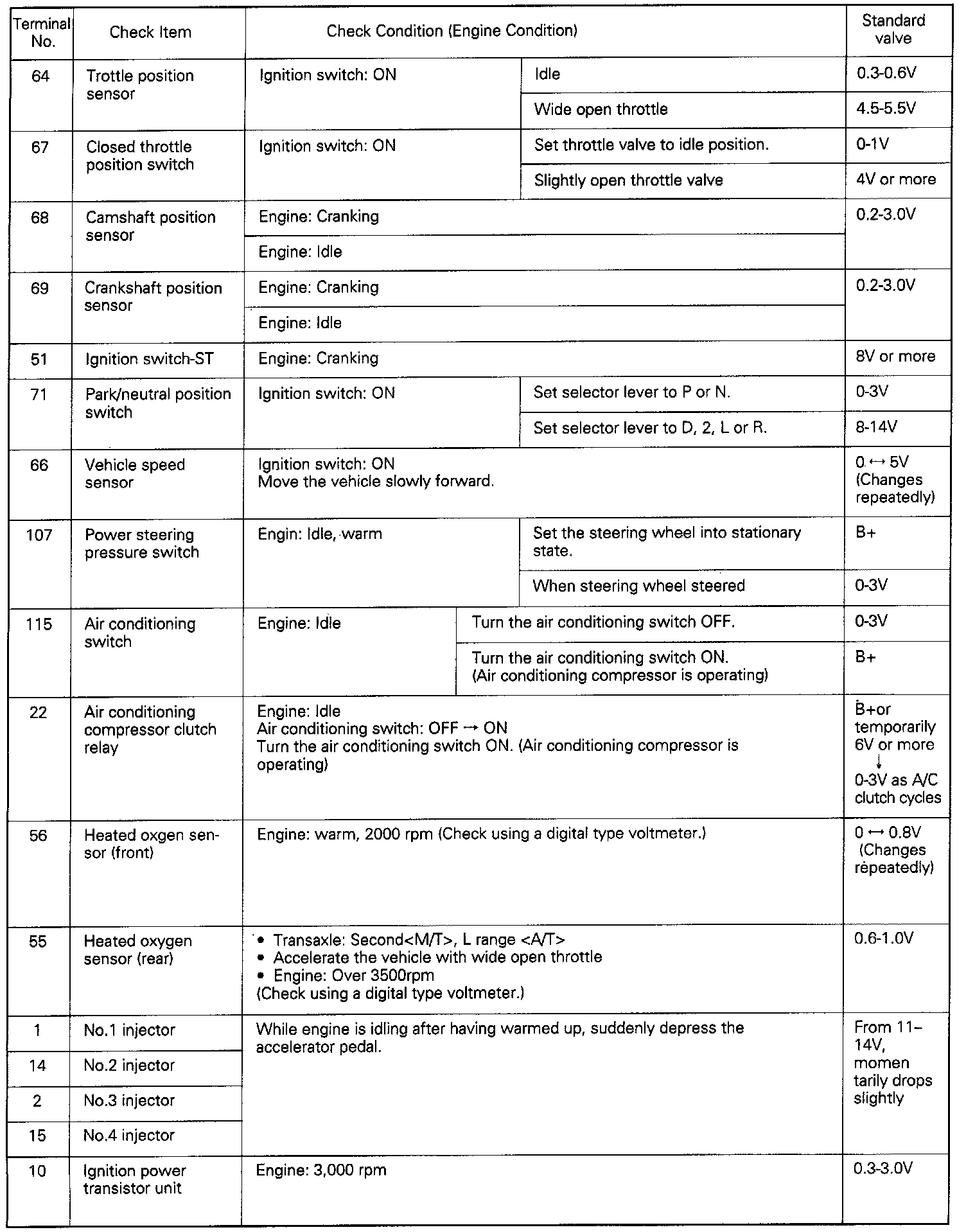

ECM Terminal Voltage Chart:
