Measurement Method

Measurement Method:

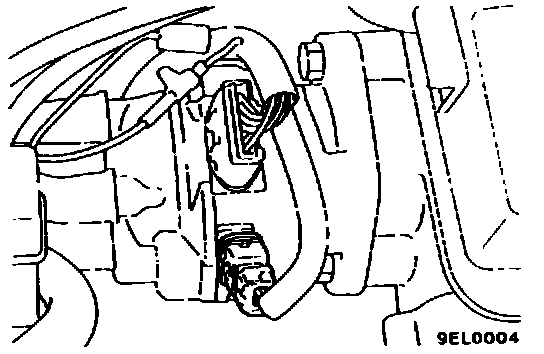

1. Disconnect the distributor 2 pin connector and connect the special tool (test harness: MB991348) in between. (All of the terminals should be connected.)

Measurement Method:

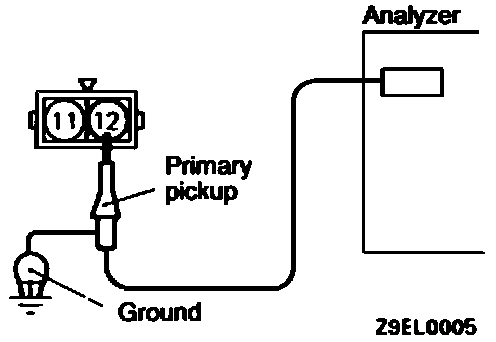

2. Connect the analyzer primary pickup to the distributor connector terminal No. 12.
3. Connect the primary pickup ground terminal.
4. Clamp the spark plug cable with the trigger pickup.

NOTE: The wave pattern of the cylinder damped to the trigger pickup will appear at the left edge of the screen.
