Standard Wave Form Observation Points
Standard Wave Form Observation Points

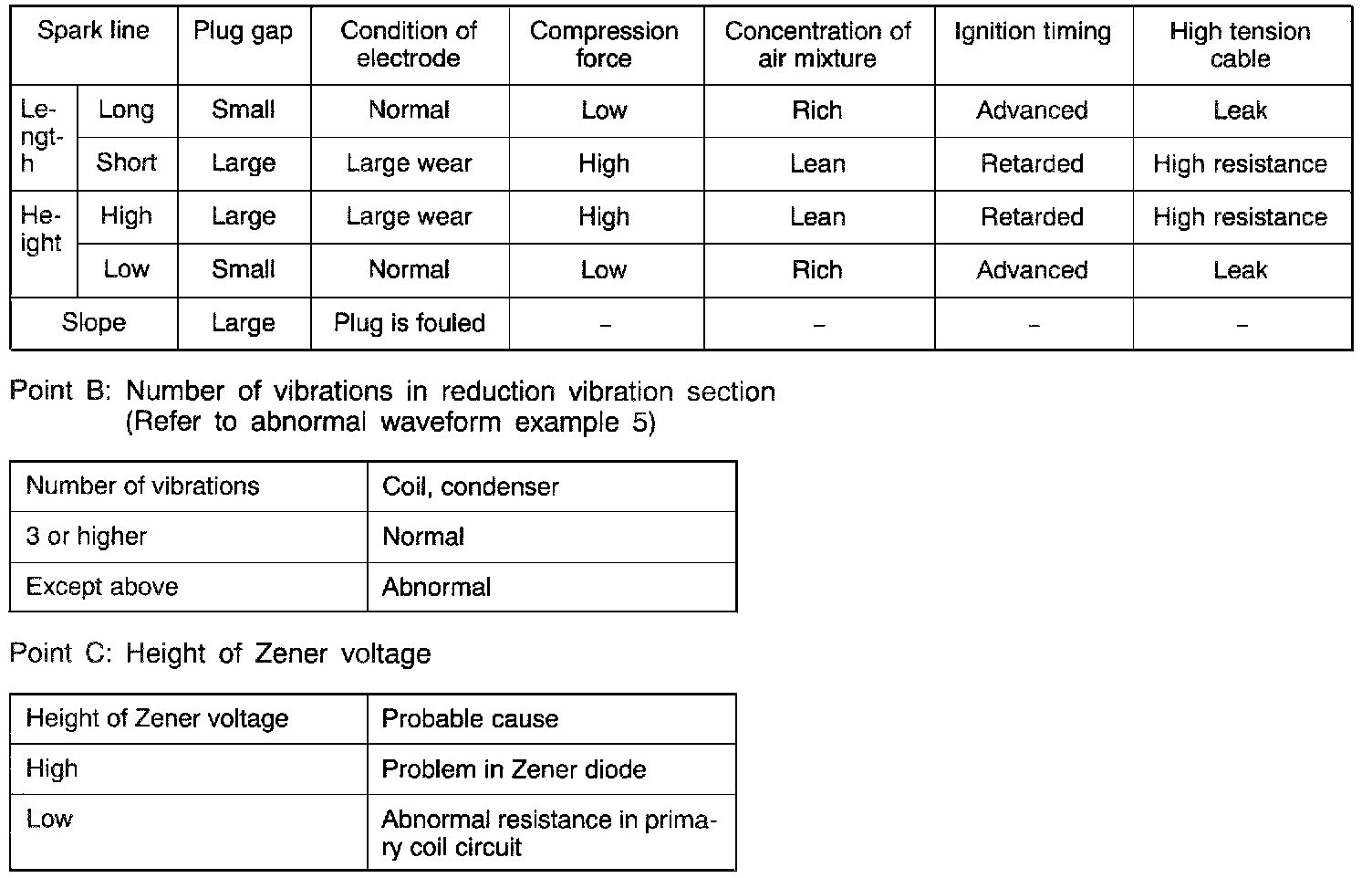

Waveform Observation Points:

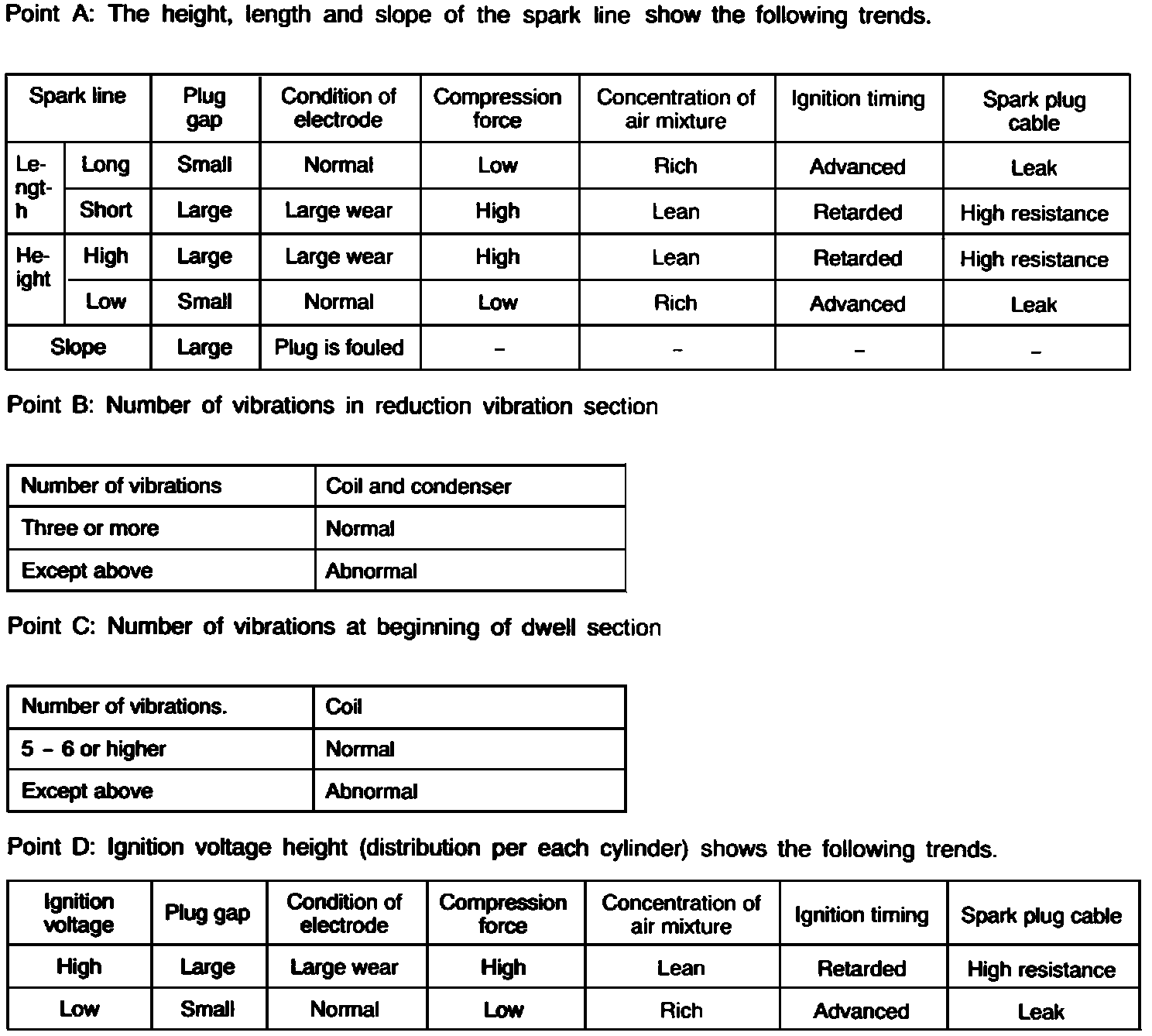

Waveform Observation Points:
