Exhaust Gas Recirculation System Check

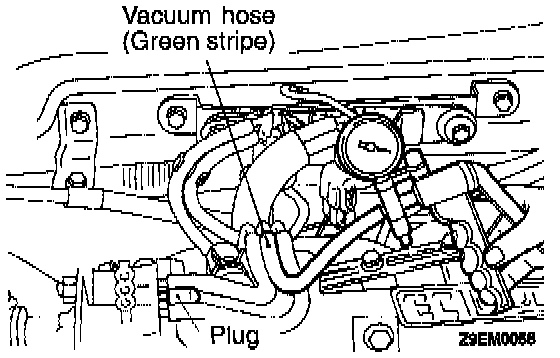

1. Disconnect the vacuum hose (green stripe) from the throttle body, and connect a hand vacuum pump to the vacuum hose.

2. Plug the nipple from which the vacuum hose was disconnected.

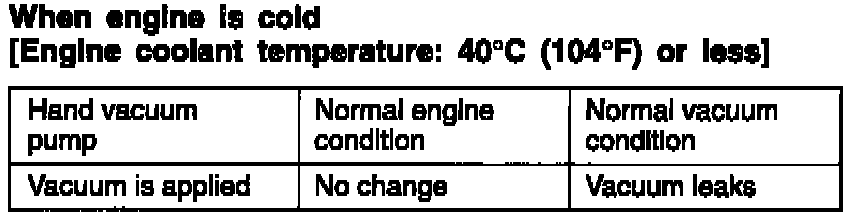

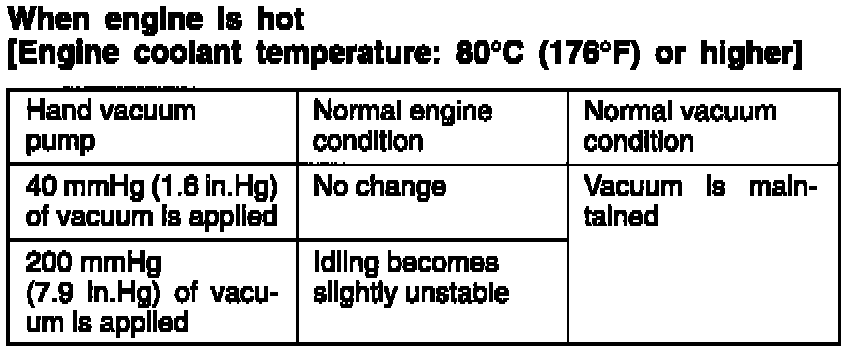

3. When the engine is cold and hot, apply a vacuum while the engine is idling, and check the condition of the engine and the vacuum.
