California Models

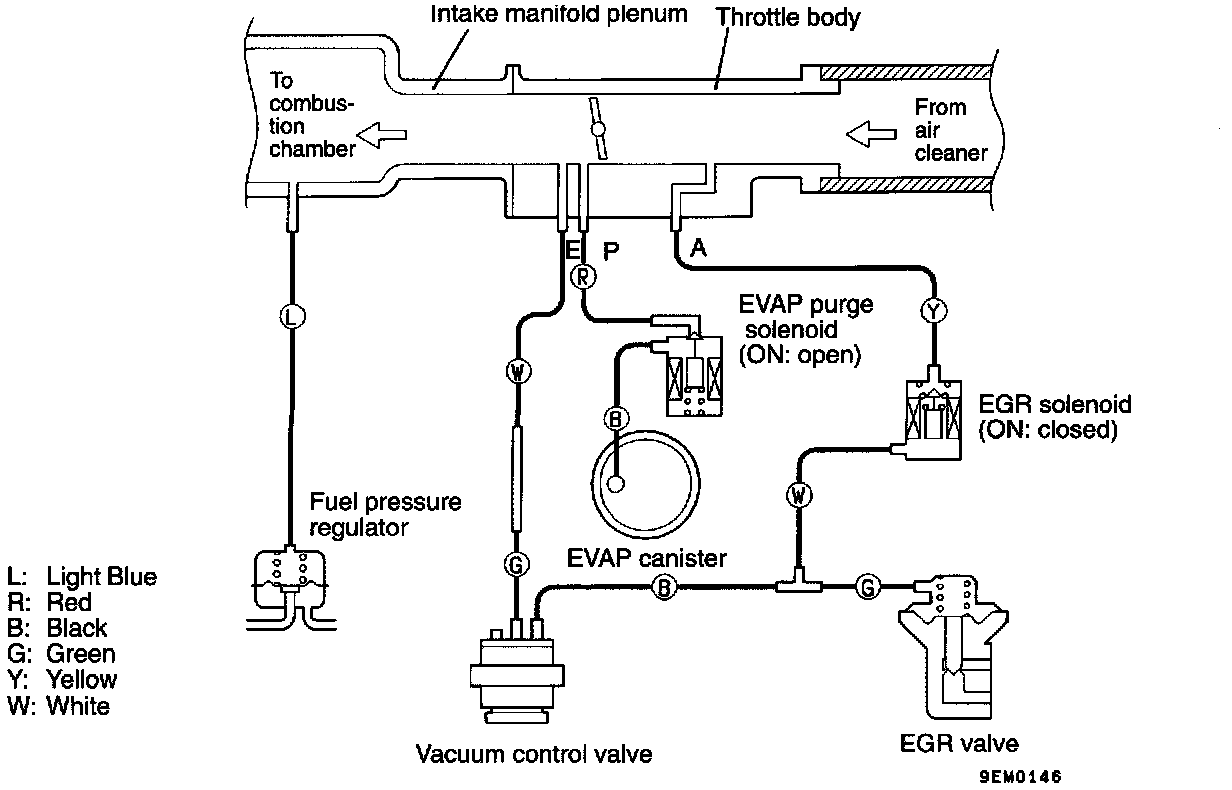

California: 95 - 96 Models:

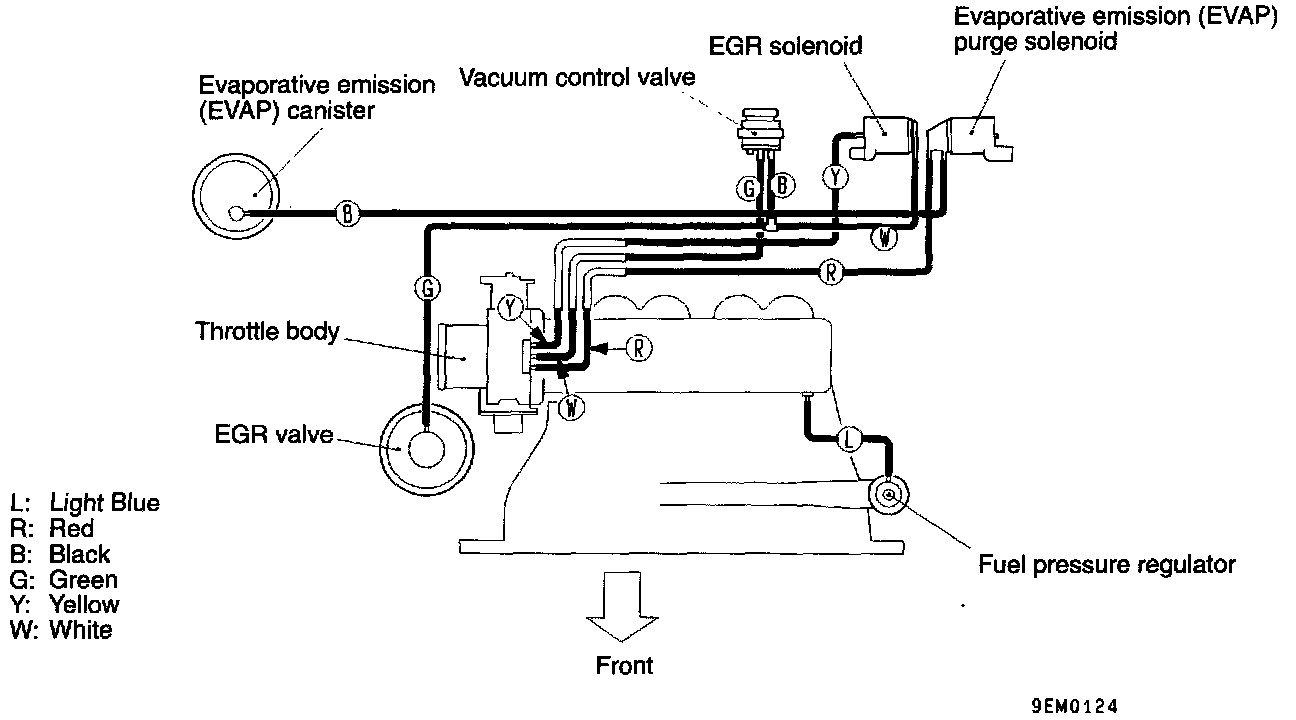

Fed: 94 - 95 Models; Ca: 93 - 94 Models:



Fed: 94 - 95 Models; Cal: 93 - 94 Models:

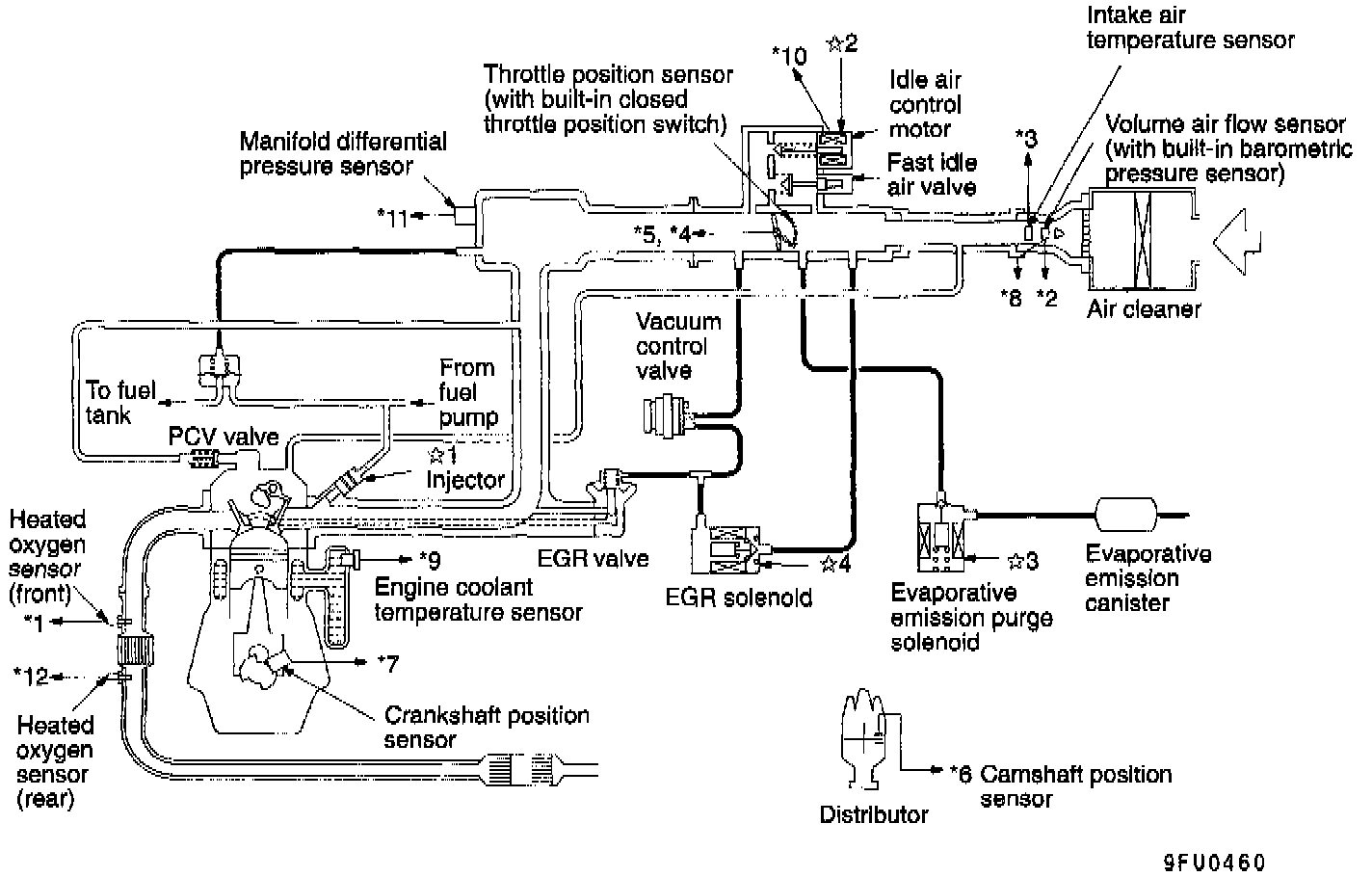

Federal: 96 Models: California: 95 - 96 Models:



Federal: 96 Models; California: 95 - 96 Models:
