Condenser Fan: Service and Repair

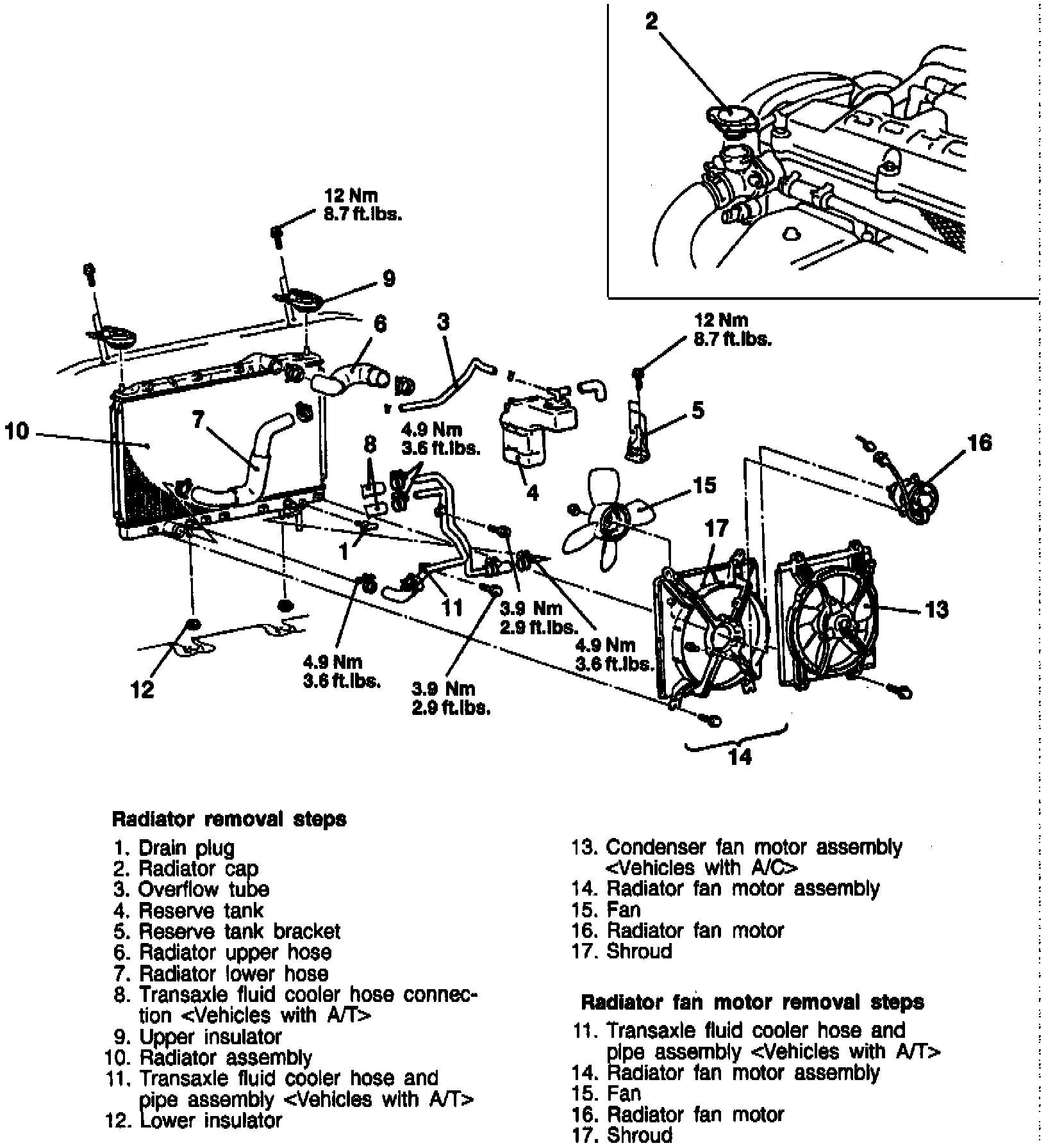

Fig. 42 Cooling Fan System Component Replacement:





Refer to Fig. 42 for component replacement.
