Solar Sensor: Locations

Overall Views A - R:

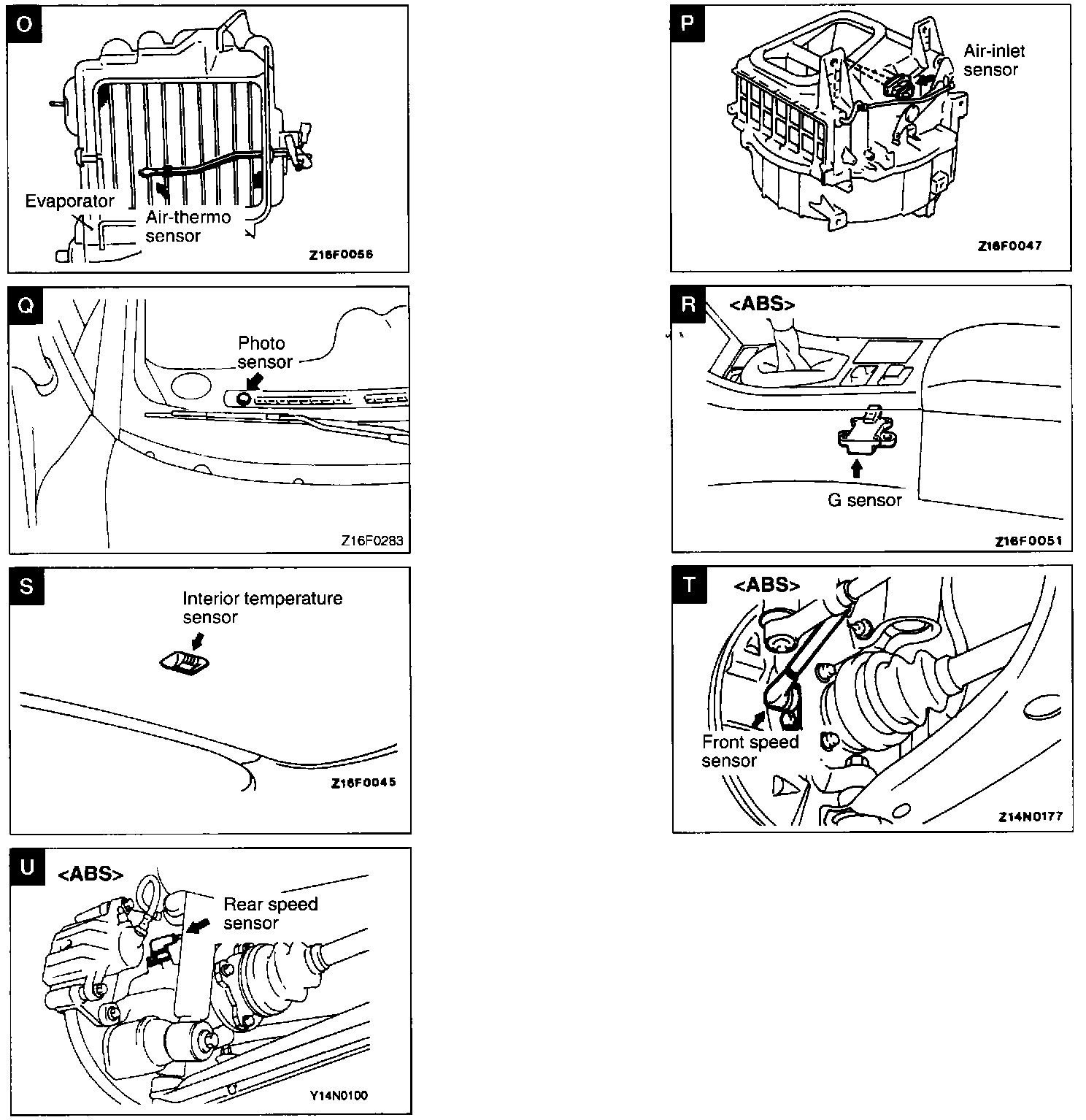

Component Views O - U:






SENSOR VIEW
Photo Sensor Q
