Component View

Overall Views Of Relay - Locations:

Views A - J:

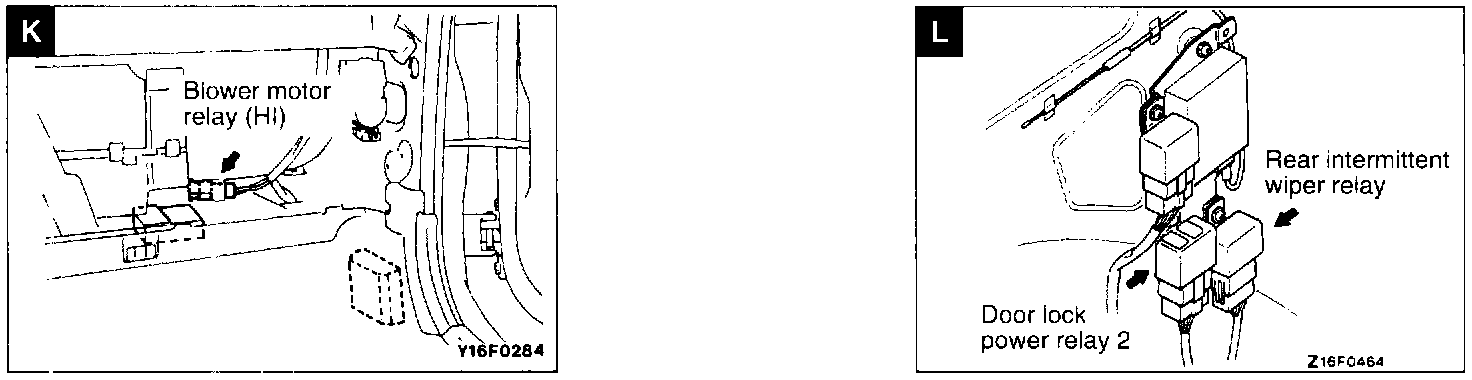

Views K - L:

RELAY VIEW
Auto-Cruise Control I
Blower Motor E
Blower Motor (HI) K
Condenser Fan Motor (HI) D
Condenser Fan Motor (LO) D
Defogger F
Door Lock Power 1 F
Door Lock Power 2 L
Fog Light A
Fuel Pump C
Generator A
Headlight A
Horn A
Magnetic Clutch D
MFI J
Motor (ABS Hydraulic Unit) B
Power Window F
Rad. Fan Motor (LO & HI) A
Rear Intermittent Wiper L
Starter A
Taillight A
Theft-Alarm Horn E
Theft-Alarm Starter H
Turn-Signal/Hazard Flasher G
Valve (ABS Hydraulic Unit) B
