Emission Control Systems: Service and Repair

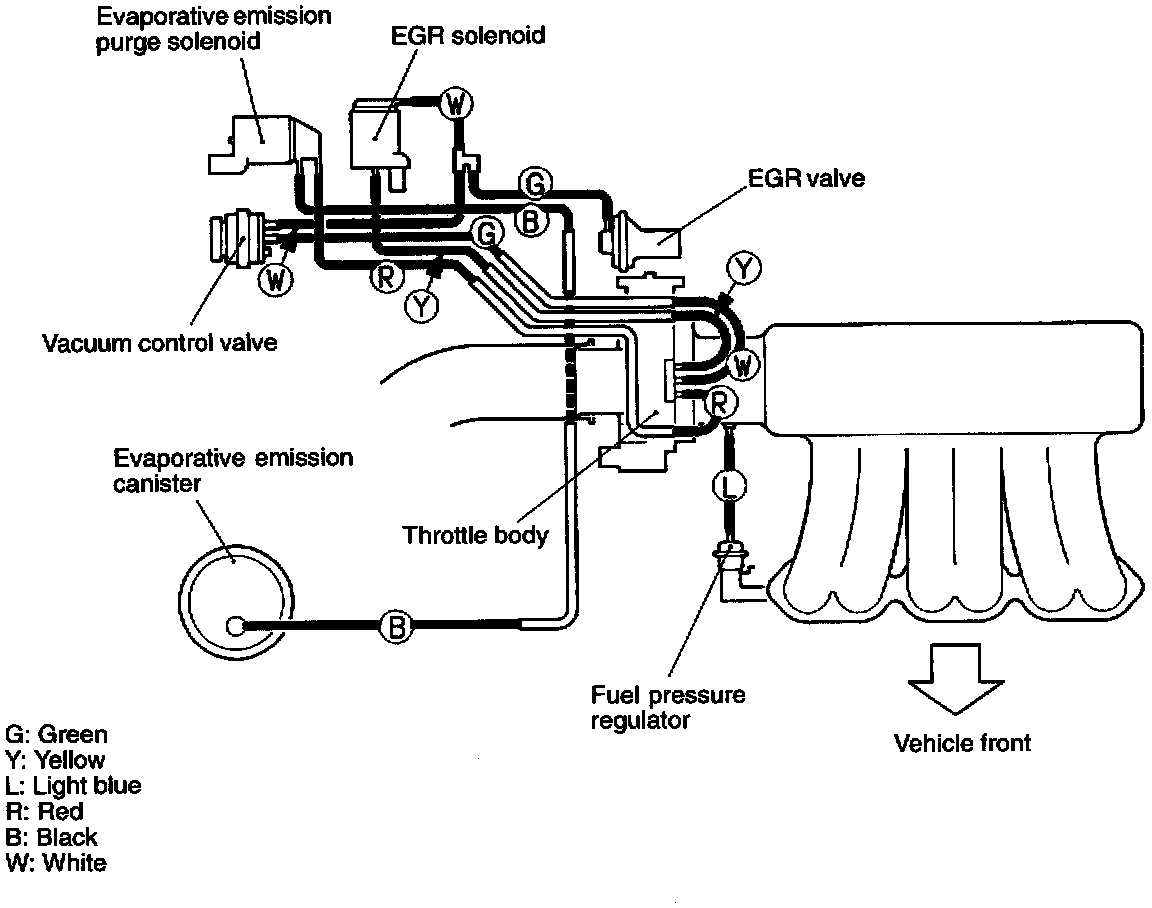

Non-Turbo Vacuum Hoses Routing
1. When connecting a hose, firmly press it onto the nipple.
2. Referring to the VACUUM HOSES ROUTING, connect the hoses correctly.

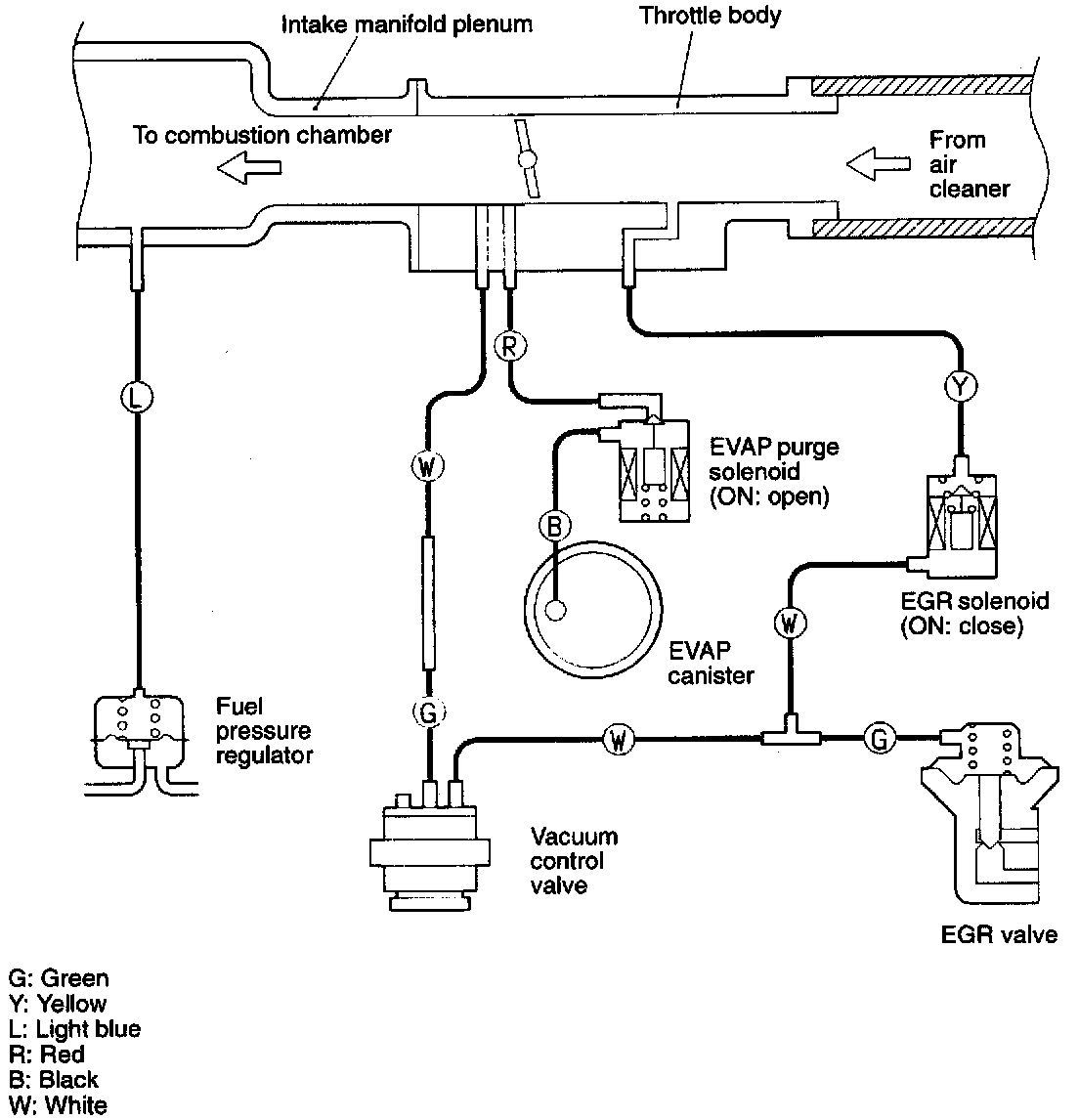

Non-Turbo Vacuum Circuit Diagram
