Torque Specifications
Torque Sequence:

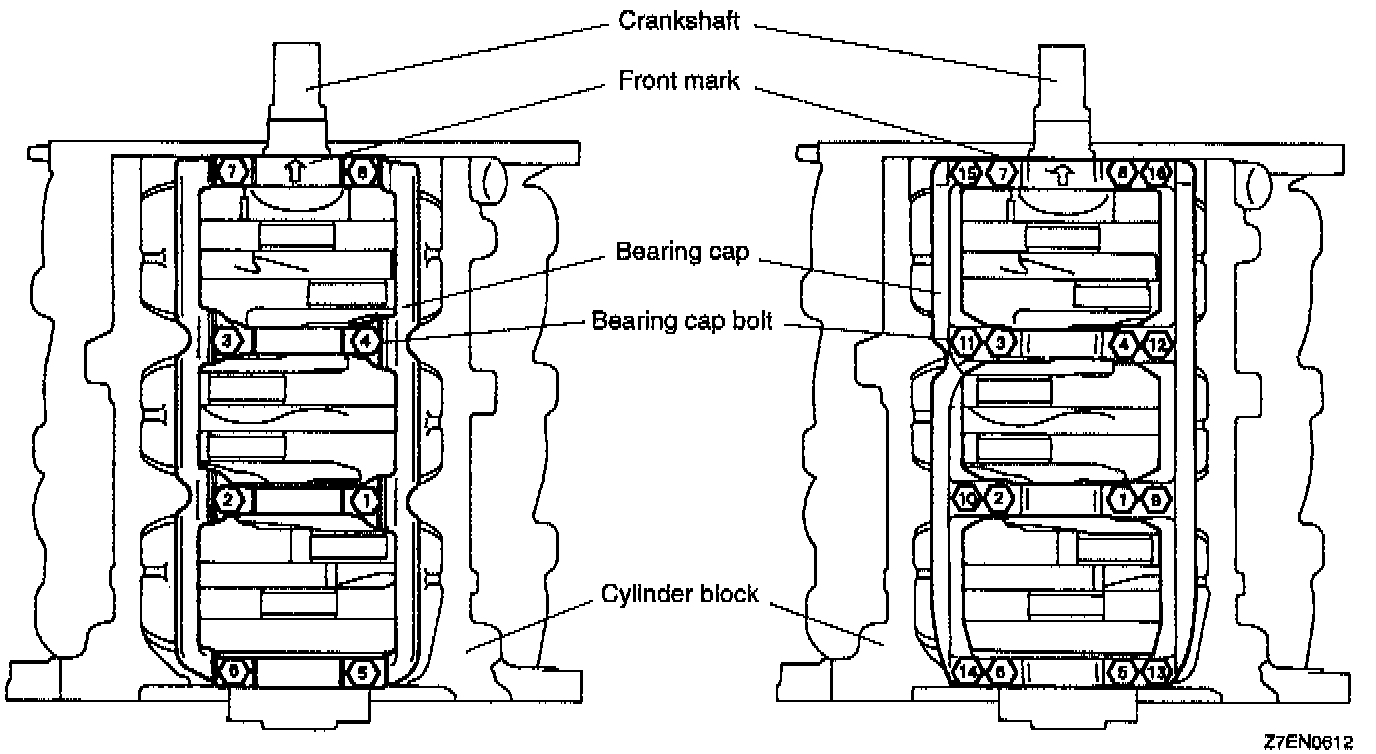

1. Attach the bearing cap on the cylinder block as shown.
2. Tighten the bearing cap bolts to 79 Nm (59 ft. lbs.) in the sequence shown.
3. Check that the crankshaft rotates smoothly.
1. Attach the bearing cap on the cylinder block as shown.
2. Tighten the bearing cap bolts to 79 Nm (59 ft. lbs.) in the sequence shown.
3. Check that the crankshaft rotates smoothly.
