M/T Technical Data

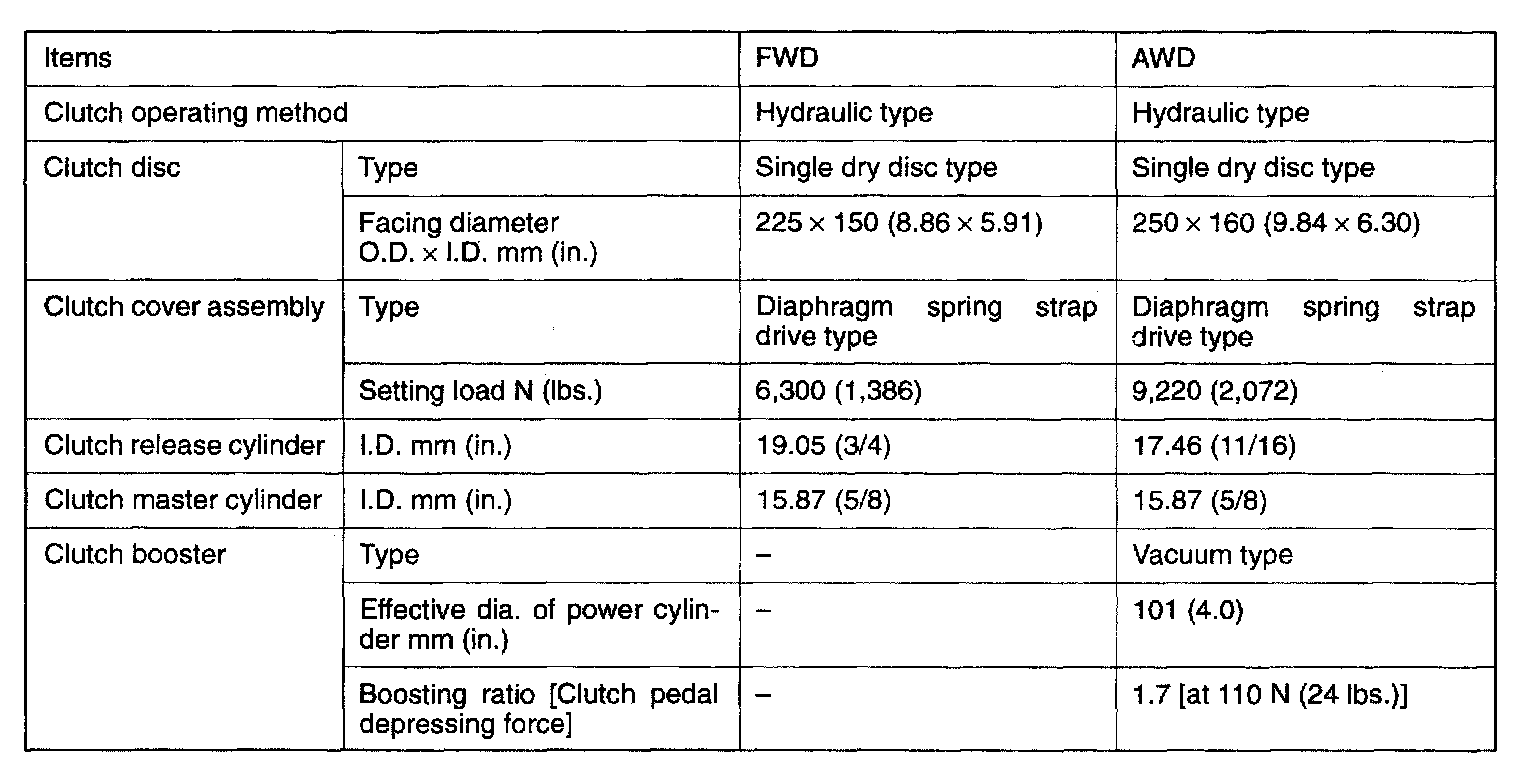

F5M33 5-spd M/T, Clutch Dimensions:

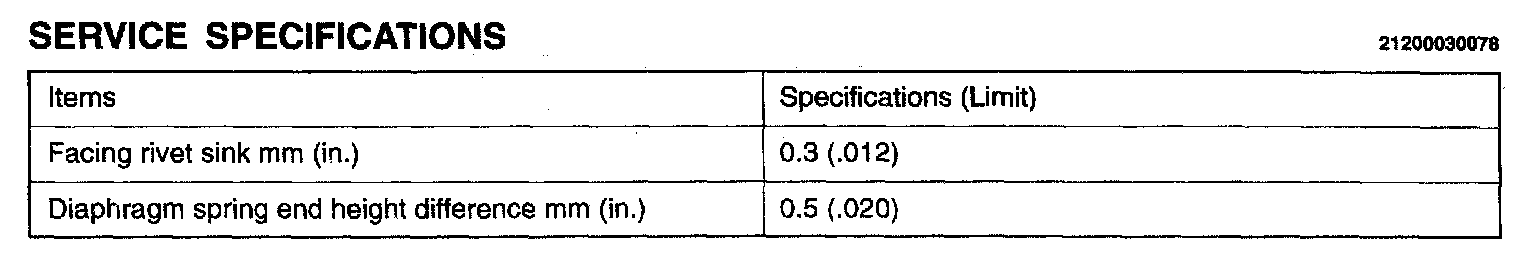

F5M33 5-spd M/T, Clutch Limits:

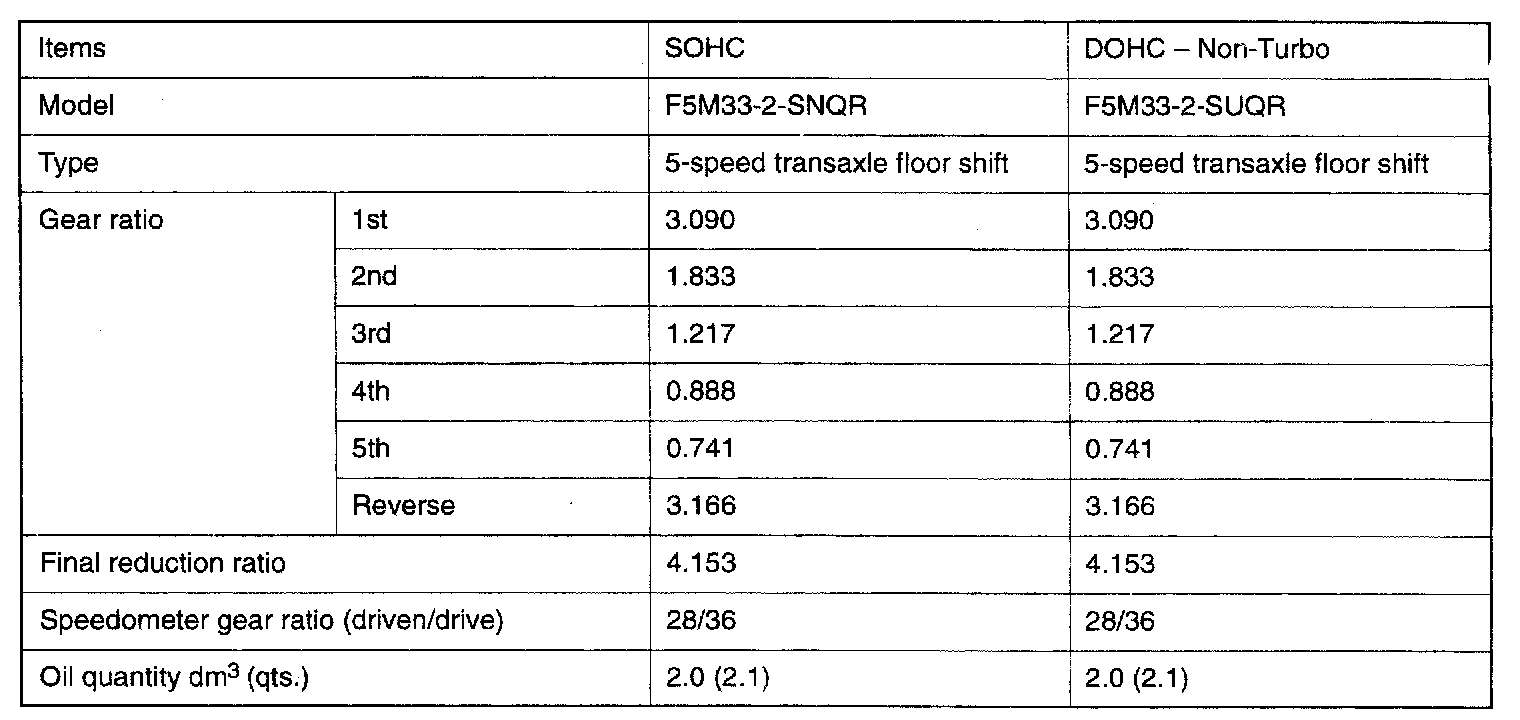

F5M33 5-spd M/T, Gear Ratios:

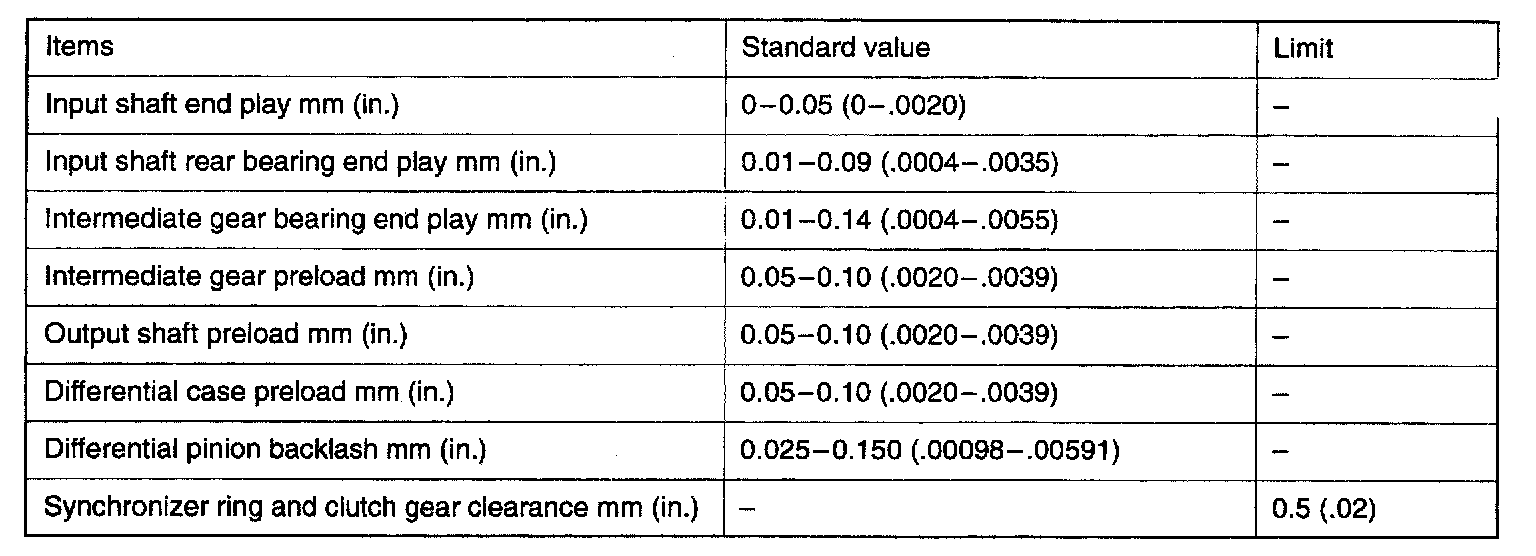

F5M33 5-spd M/T, Standard Values & Limit:

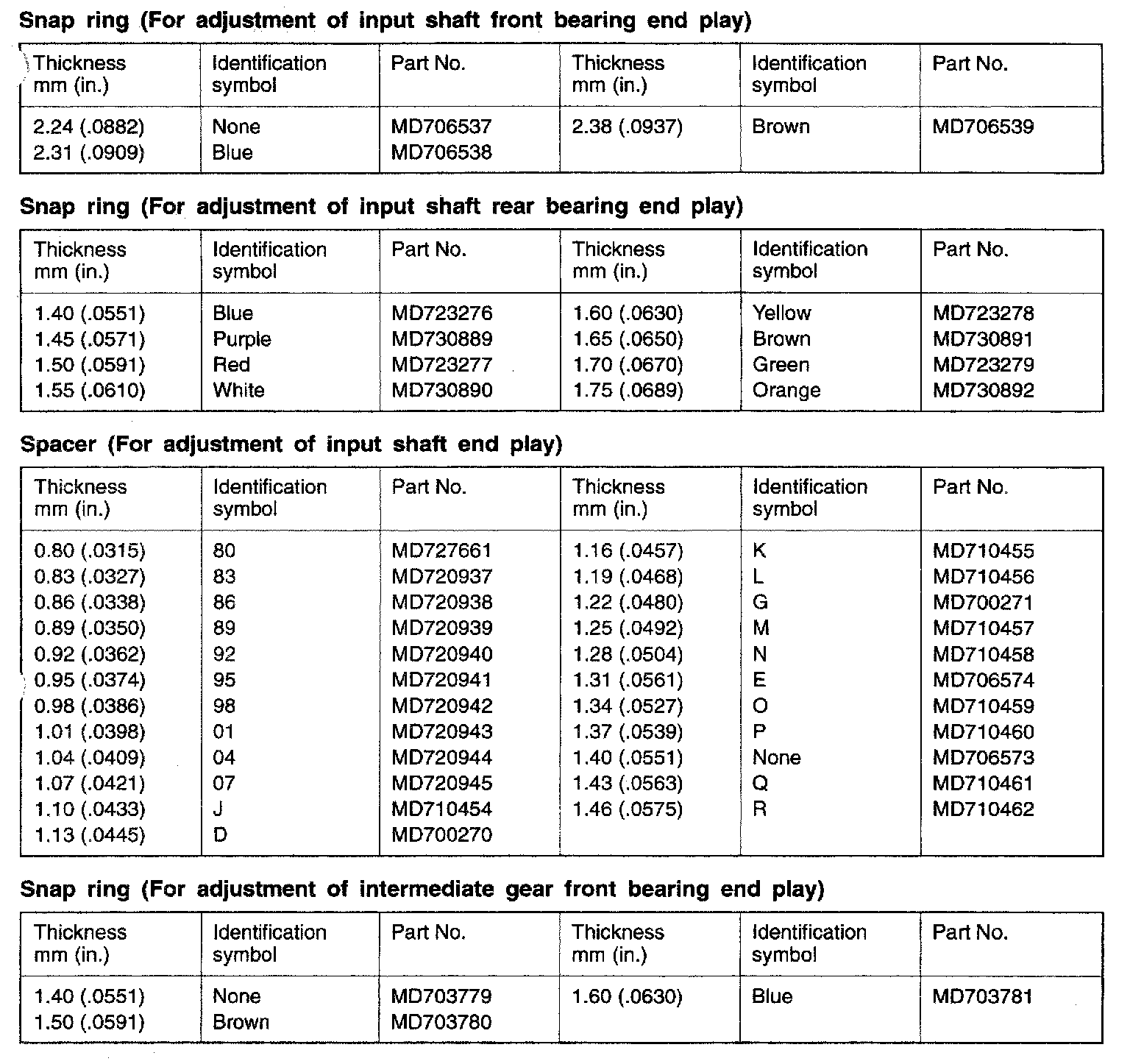

F5M33 5-spd M/T, Input Shaft & Intermediate Bearing End Play:

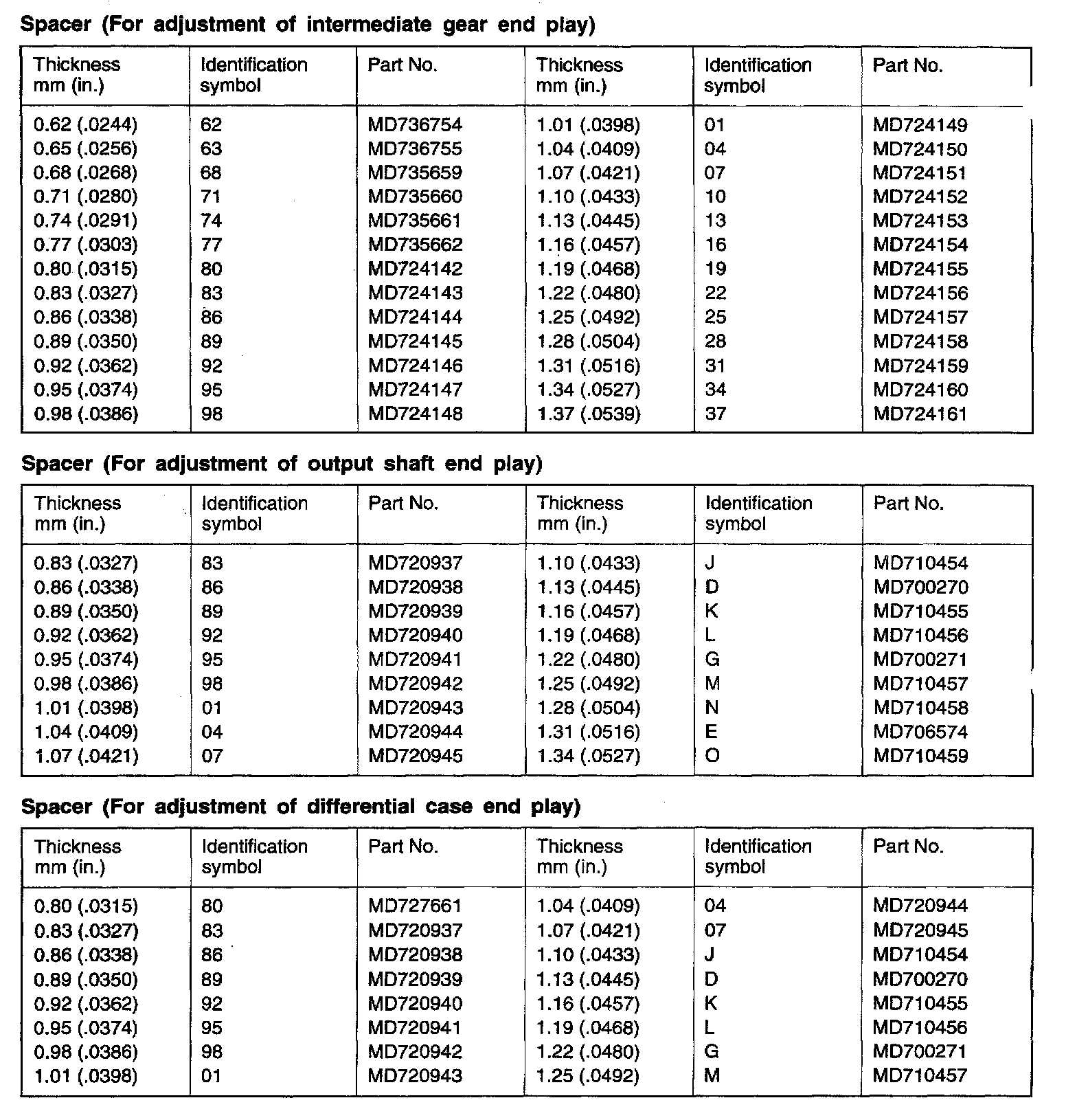

F5M33 5-spd M/T, Intermediate Gear, Output Shaft & Differential Play:

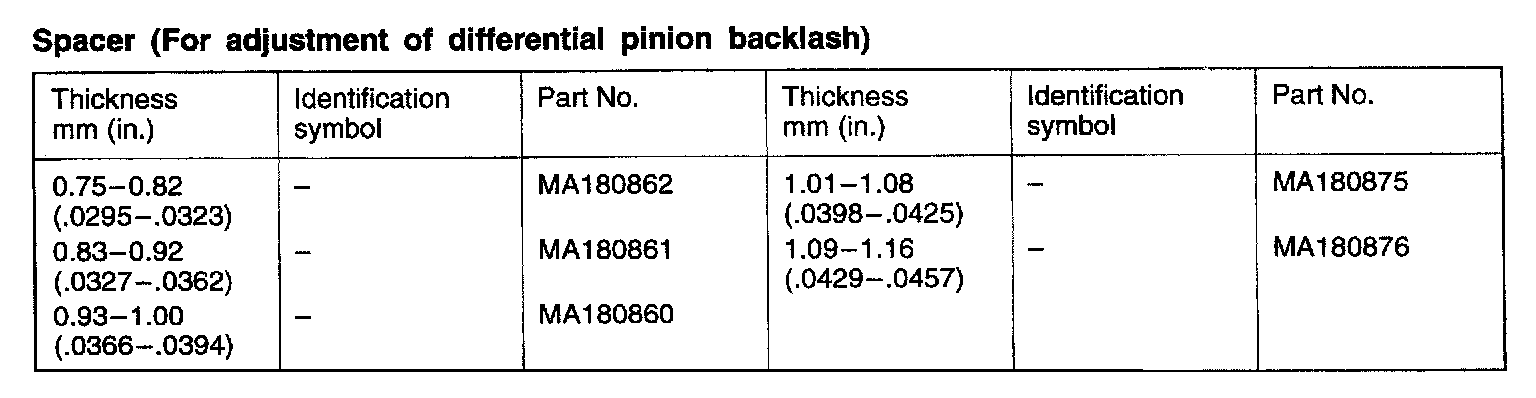

F5M33 5-spd M/T, Differential Pinion Backlash:

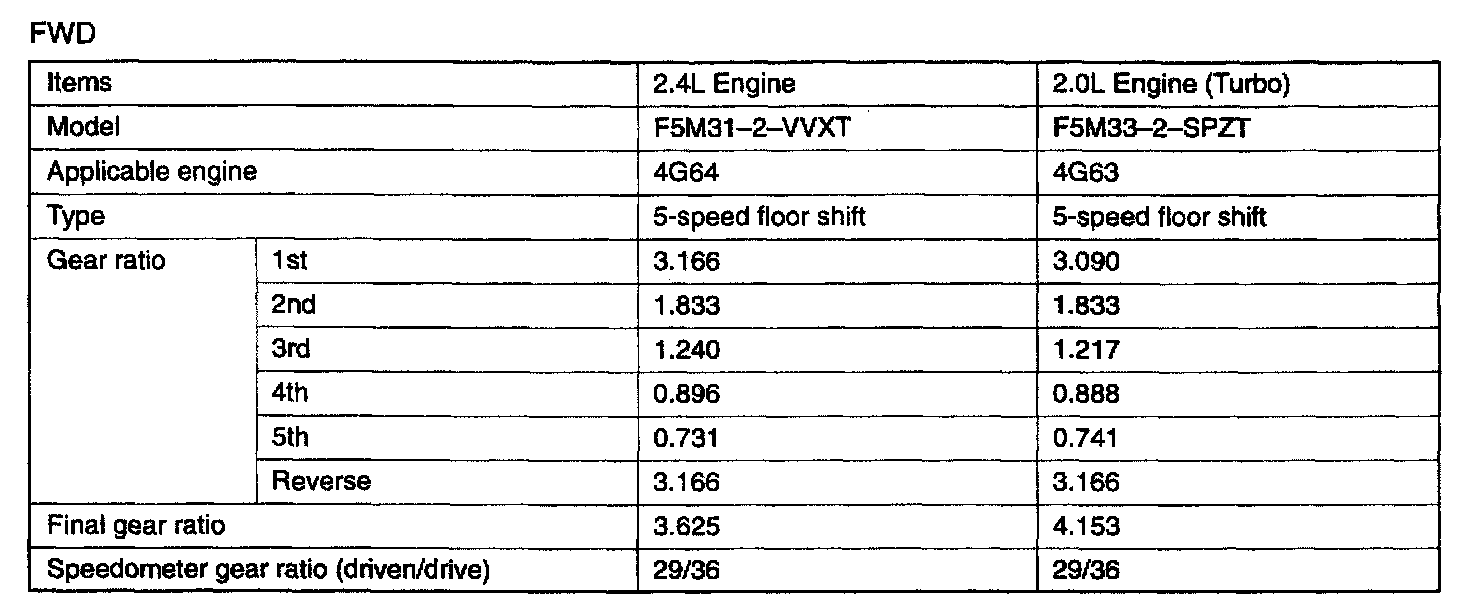

F5M31/F5M33 5-spd M/T, Gear Ratios:

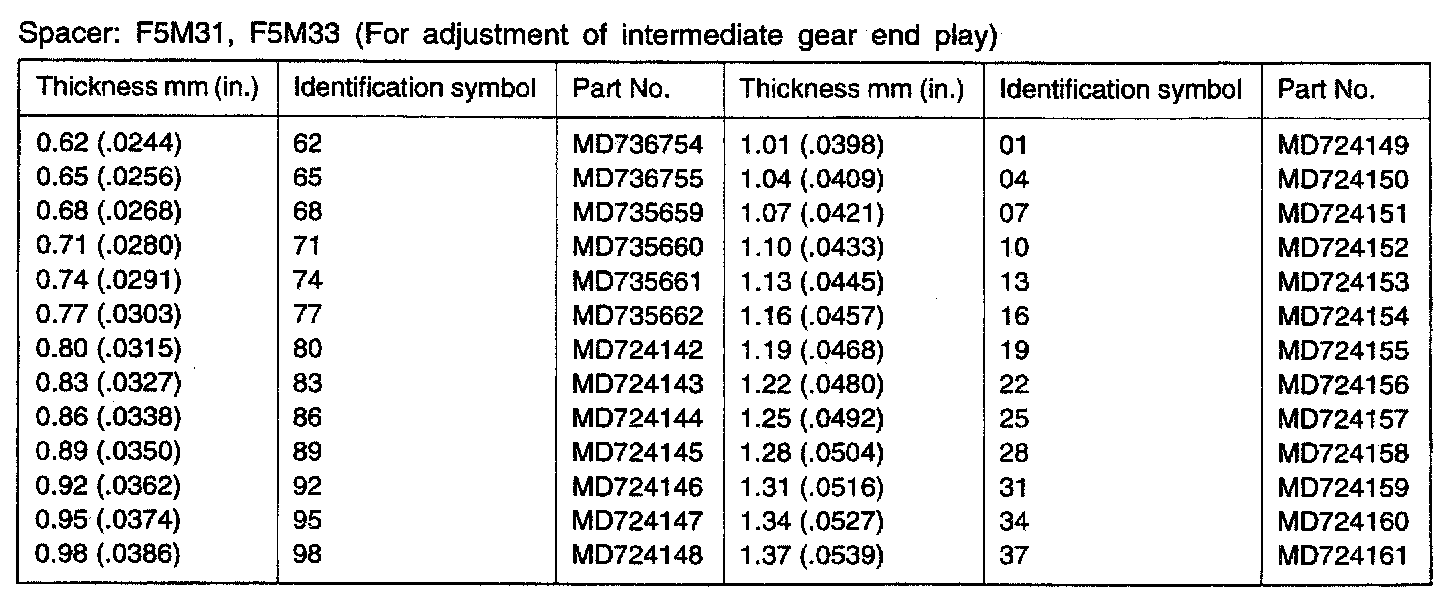

F5M31/F5M33 5-spd M/T, Intermediate Gear End Play:

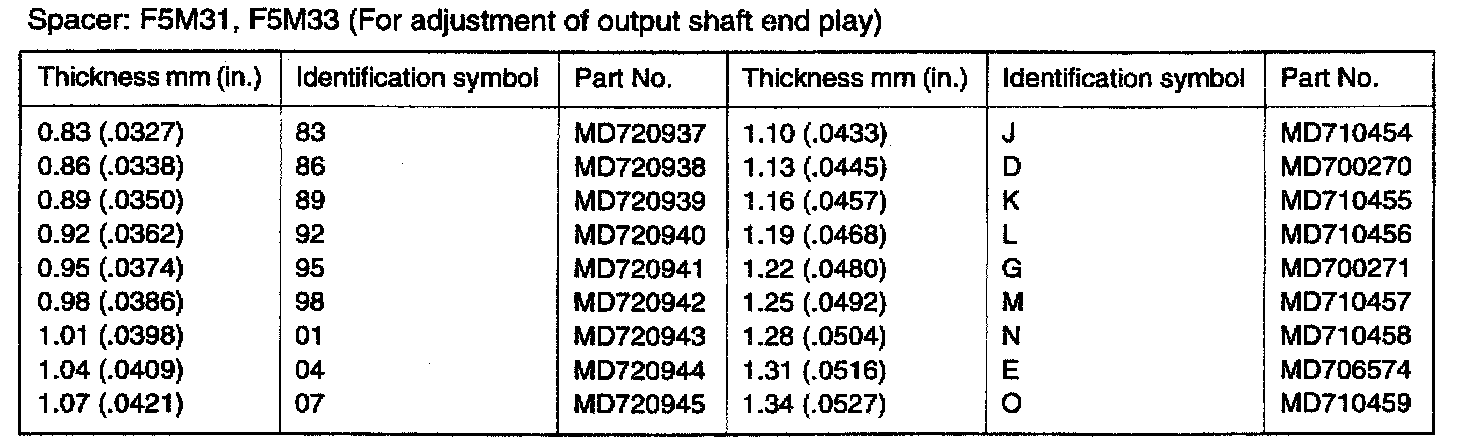

F5M31/F5M33 5-spd M/T, Output Shaft End Play:
