Home >> Mitsubishi >> 1997 >> 3000GT V6-3.0L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Testing and Inspection

Control Module: Testing and Inspection

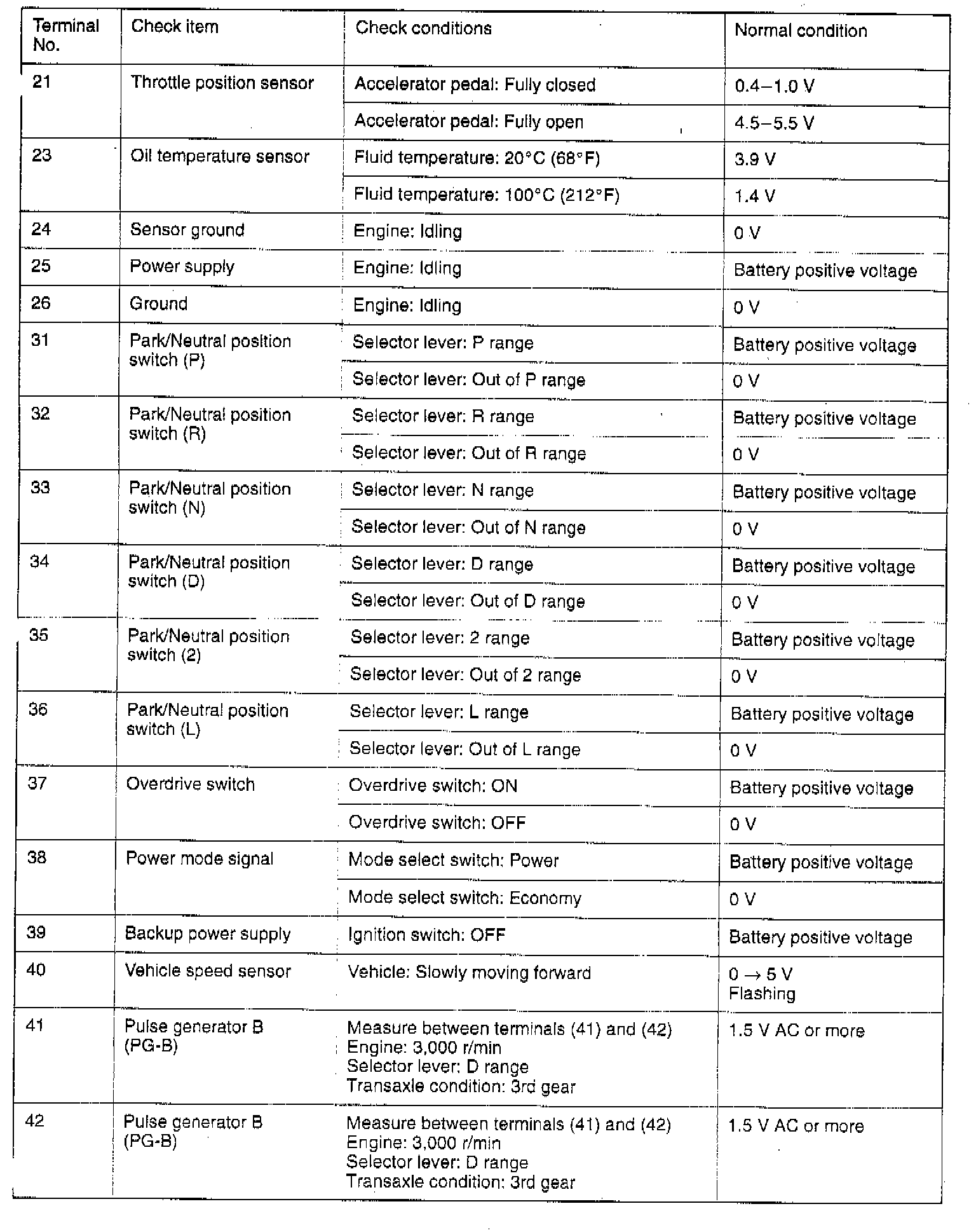

Chart 1 Of 3:

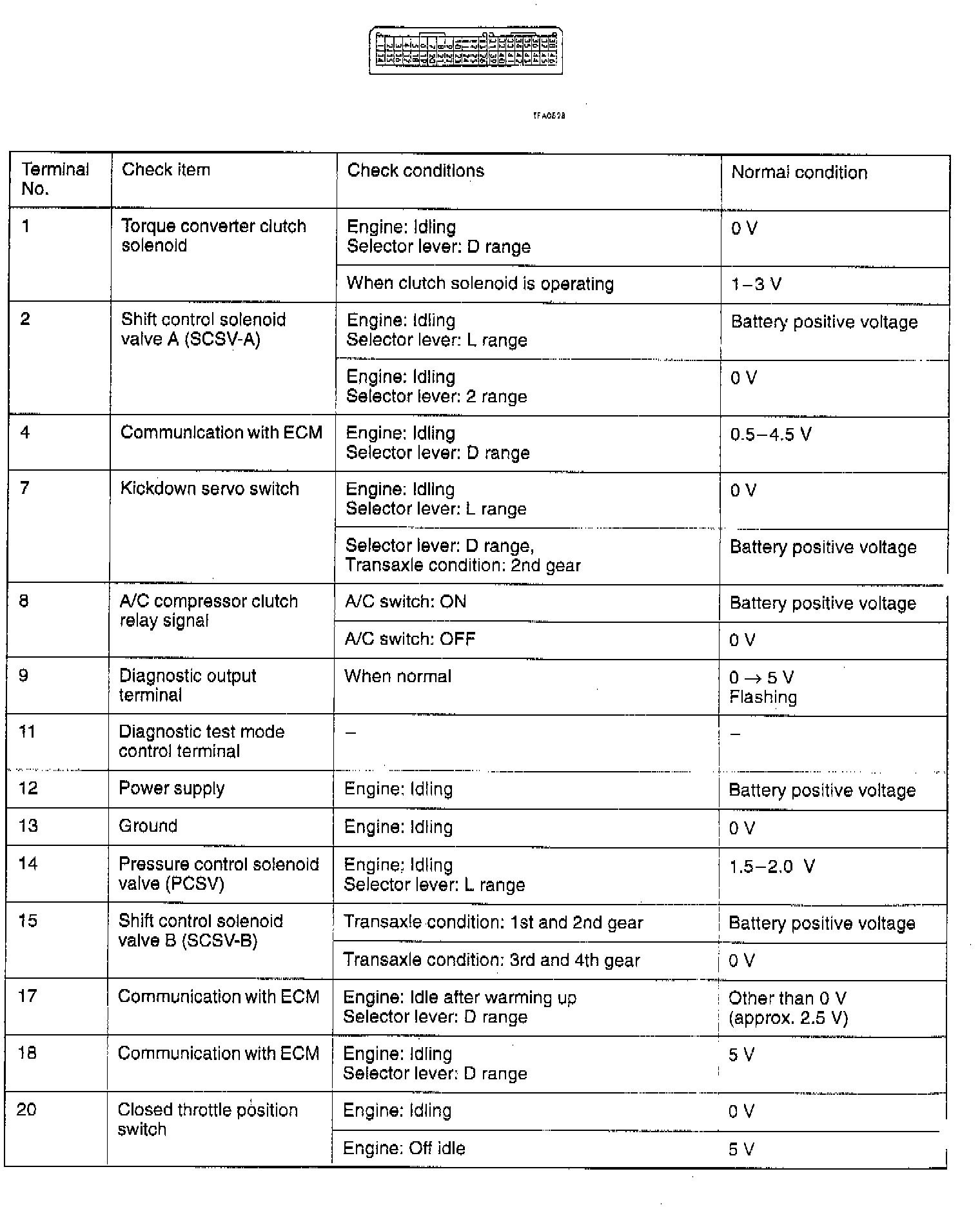

Chart 2 Of 3:

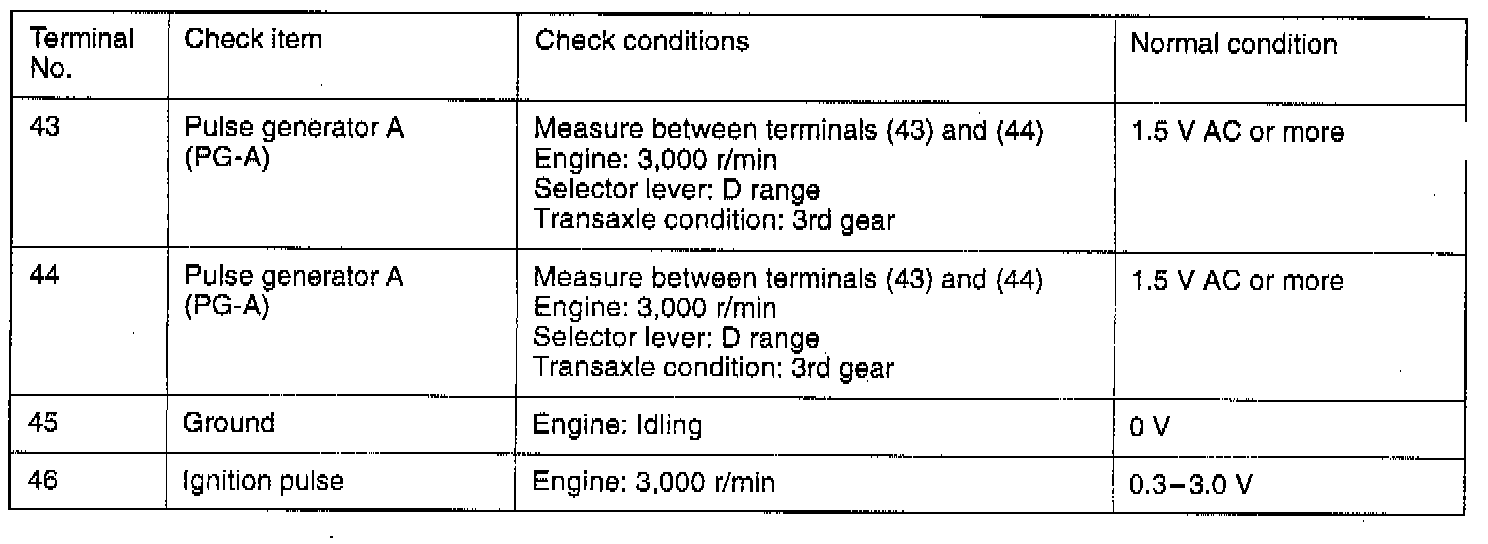

Chart 3 Of 3:
