Round Waterproof Connector

Foreword
Connectors that engage loosely can be repaired by removing the female terminal from the connector housing and raising its lance to establish secure engagement. Removal of the connector terminal used for MFI and 4 A/T control circuit can be done in the following manner.




1. Remove the waterproof cap by using a screwdriver.

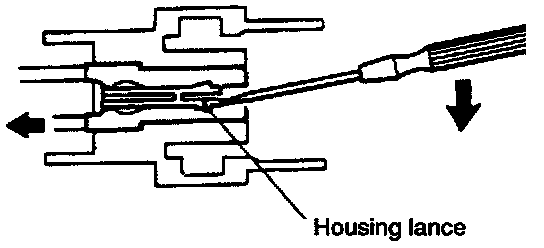

2. Insert the tip of the screwdriver [1.4 mm (.06 in.) or 2.0 mm (.08 in.) width] into the connector as shown in the figure, raise the housing lance slightly with it, and pull out harness.




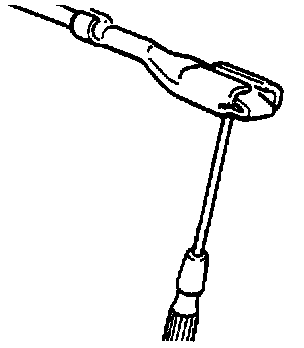

3. Insert a screwdriver through the hole provided on the terminal and raise the contact point of the male terminal.
