Home >> Mitsubishi >> 1999 >> 3000GT V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cross-Member

Cross-Member

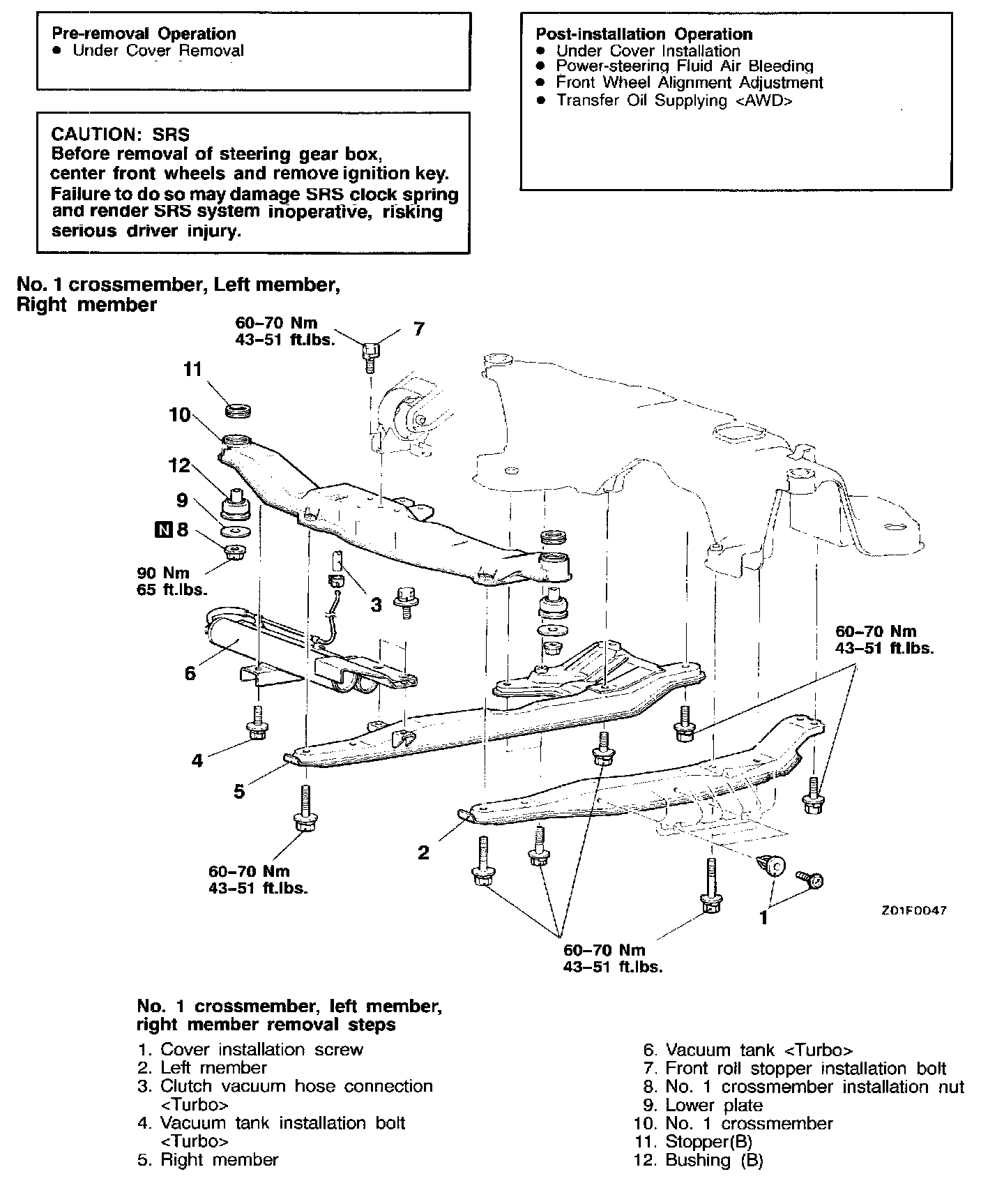

PART 1 OF 2

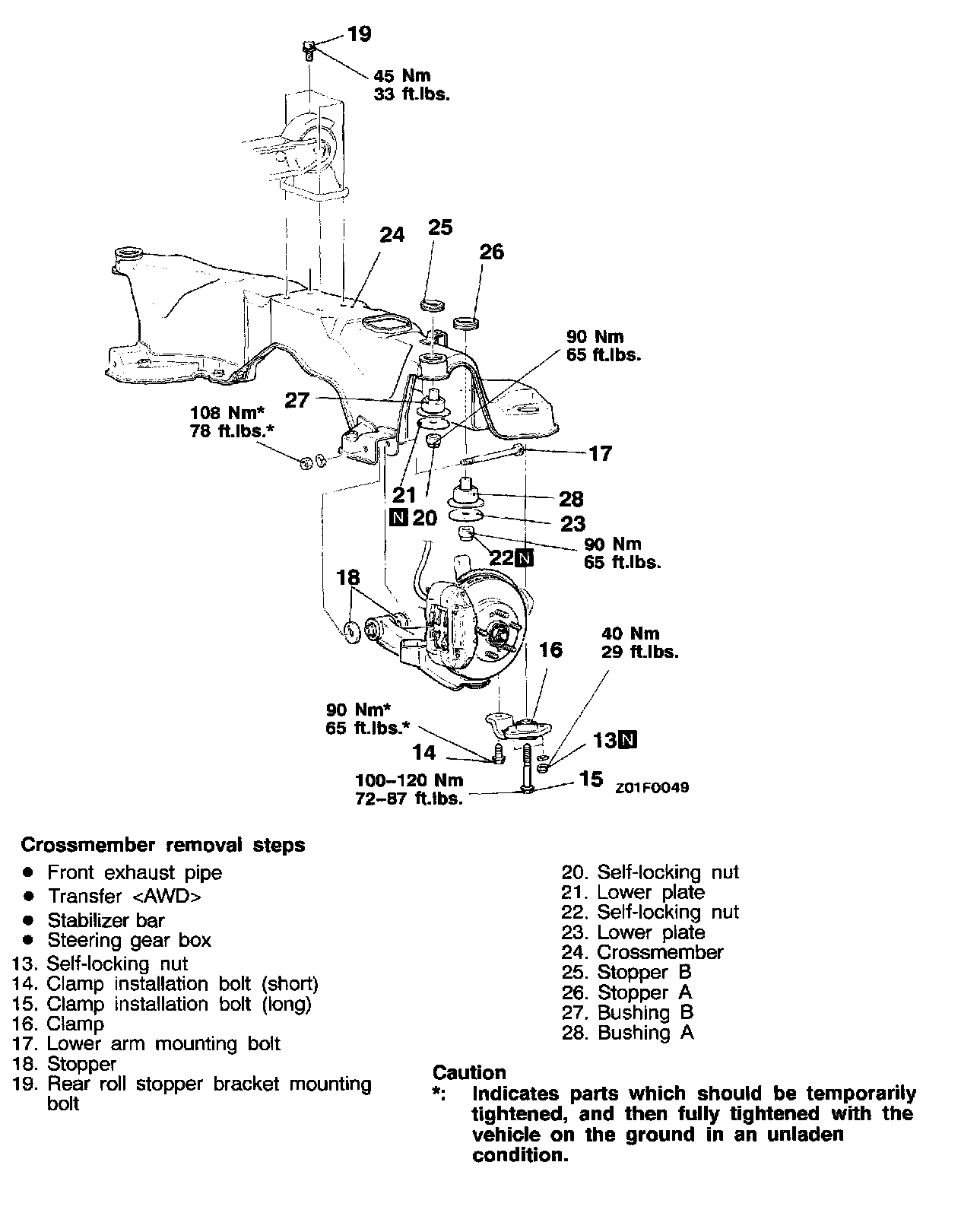

PART 2 OF 2
