Park/Neutral Position Switch Continuity Check
Park/Neutral Position Switch Continuity Check

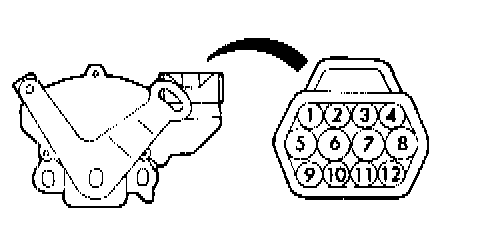

Connector View:

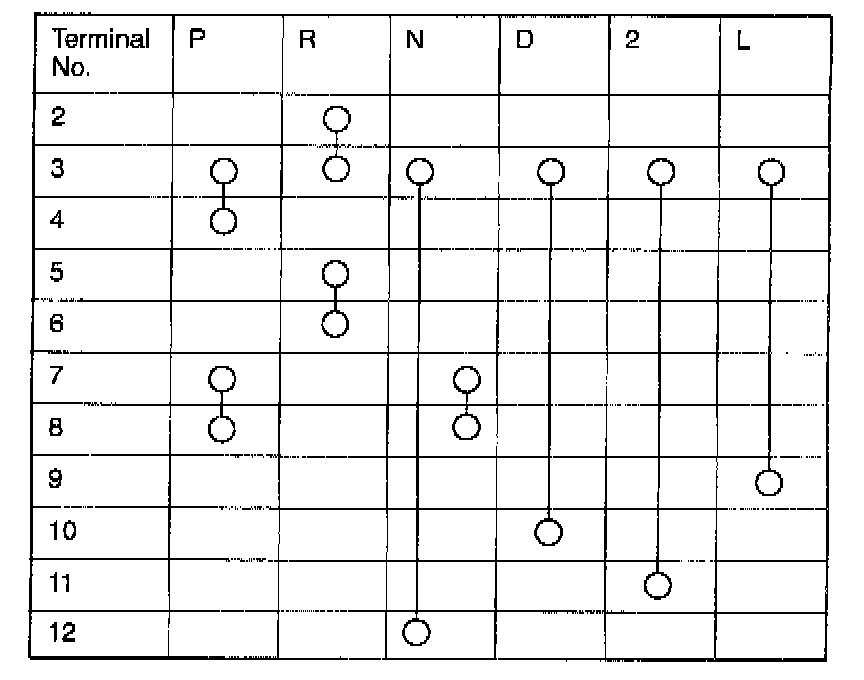

Continuity Chart:
PARK/ NEUTRAL POSITION SWITCH CONTINUITY CHECK
