Headlamp Control Module: Testing and Inspection

LIGHT AUTOMATIC SHUT-OFF UNIT CHECK
1. Remove the quarter trim.

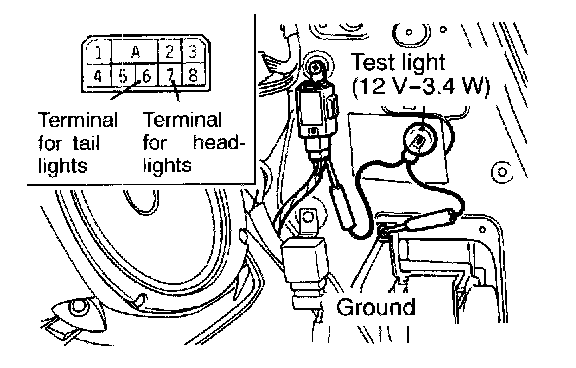

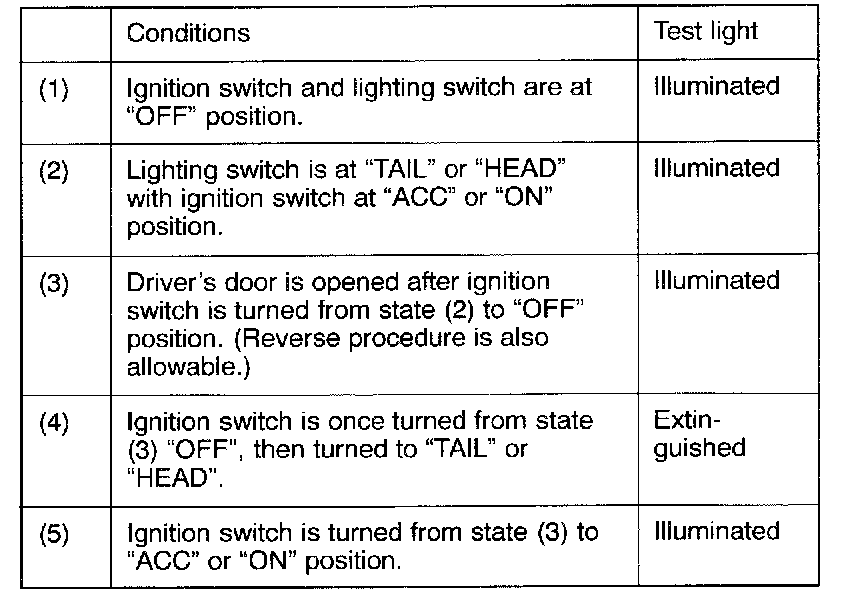

2. Keeping the connector connected to the light automatic shut-OFF unit, connect the test light (12 V - 3.4 W) from the harness side to terminal No.6 (for tail lights) or No.7 (for headlights). Under the following conditions, check the operation of the test light.
