EGR Control Solenoid: Locations

Solenoid And Solenoid Valve:

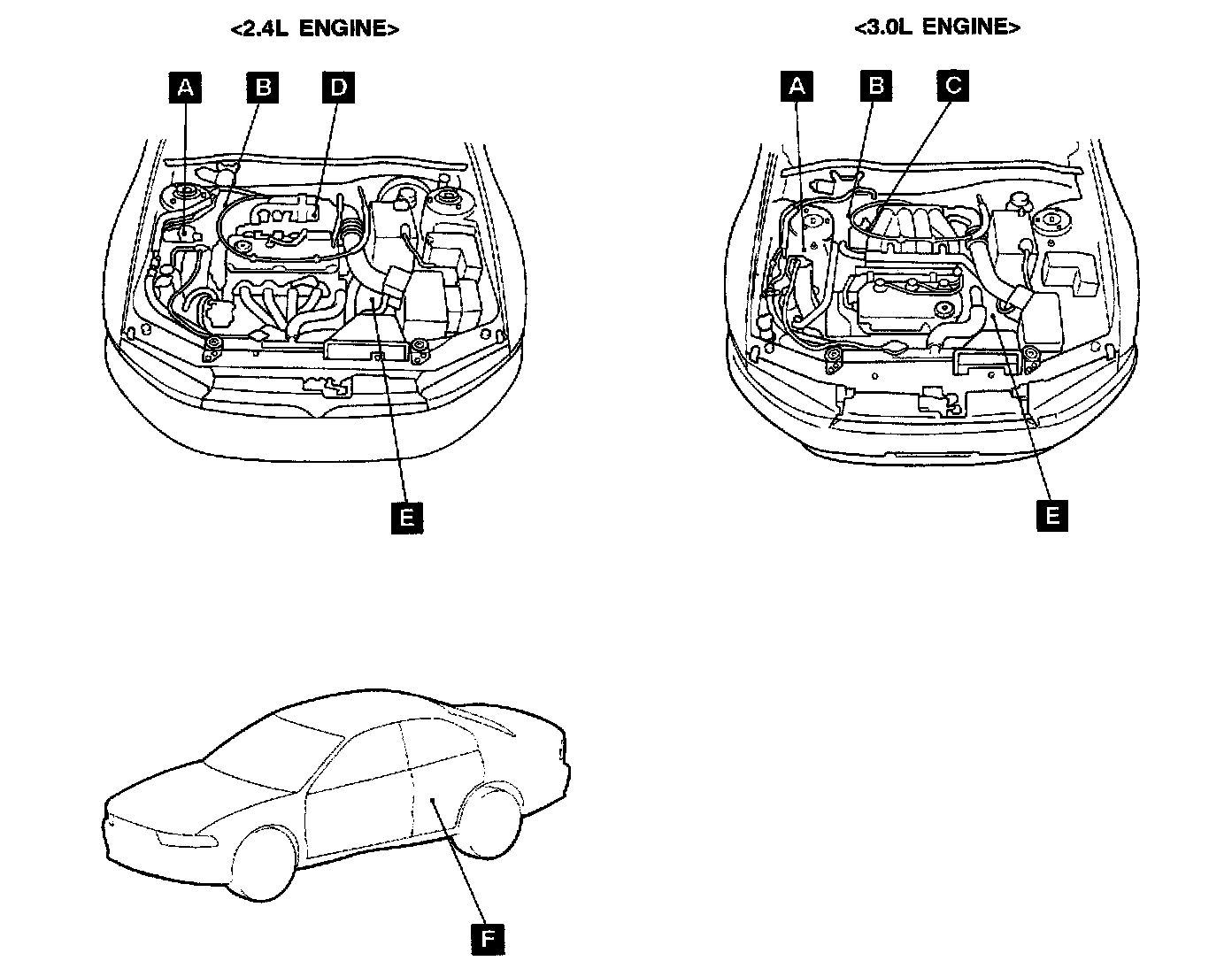

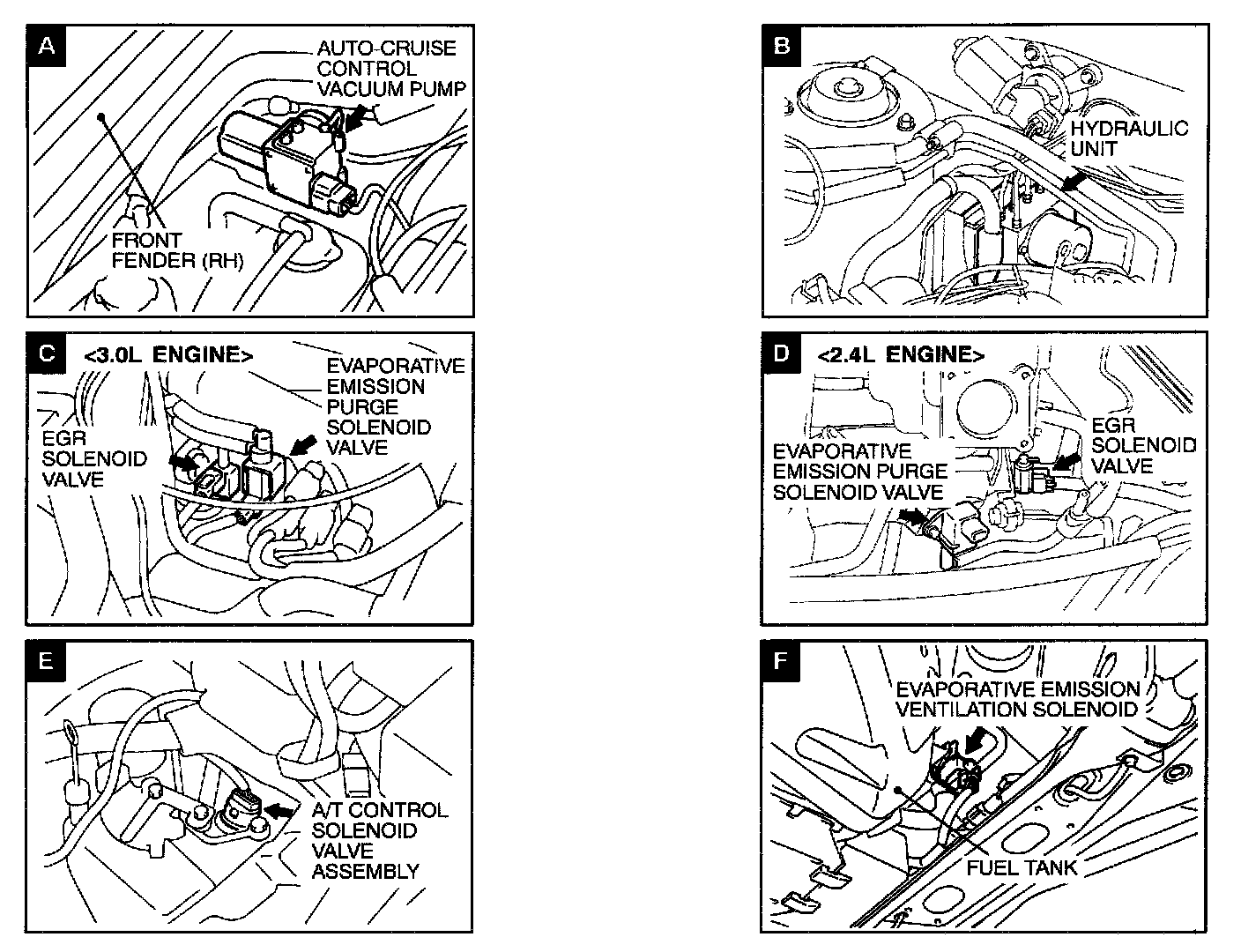

Solenoid And Solenoid Valve Location Views A - F:








NAME SYMBOL
EGR Solenoid Valve C
