Engine Control Module

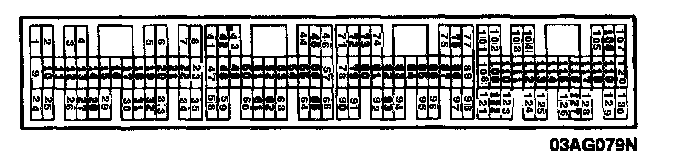

Powertrain Control Module (PCM) Connector Terminal Arrangement:

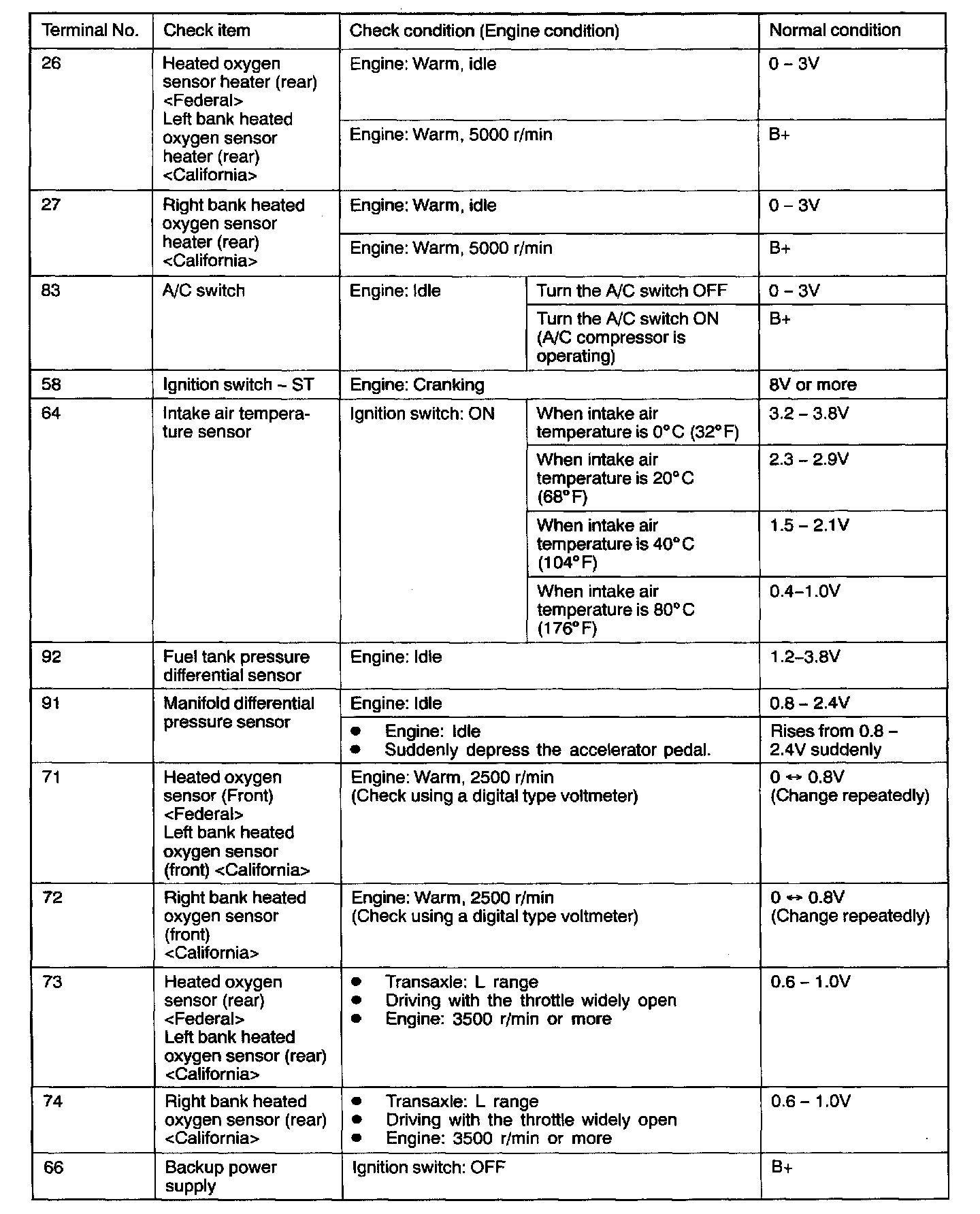

Part 1:

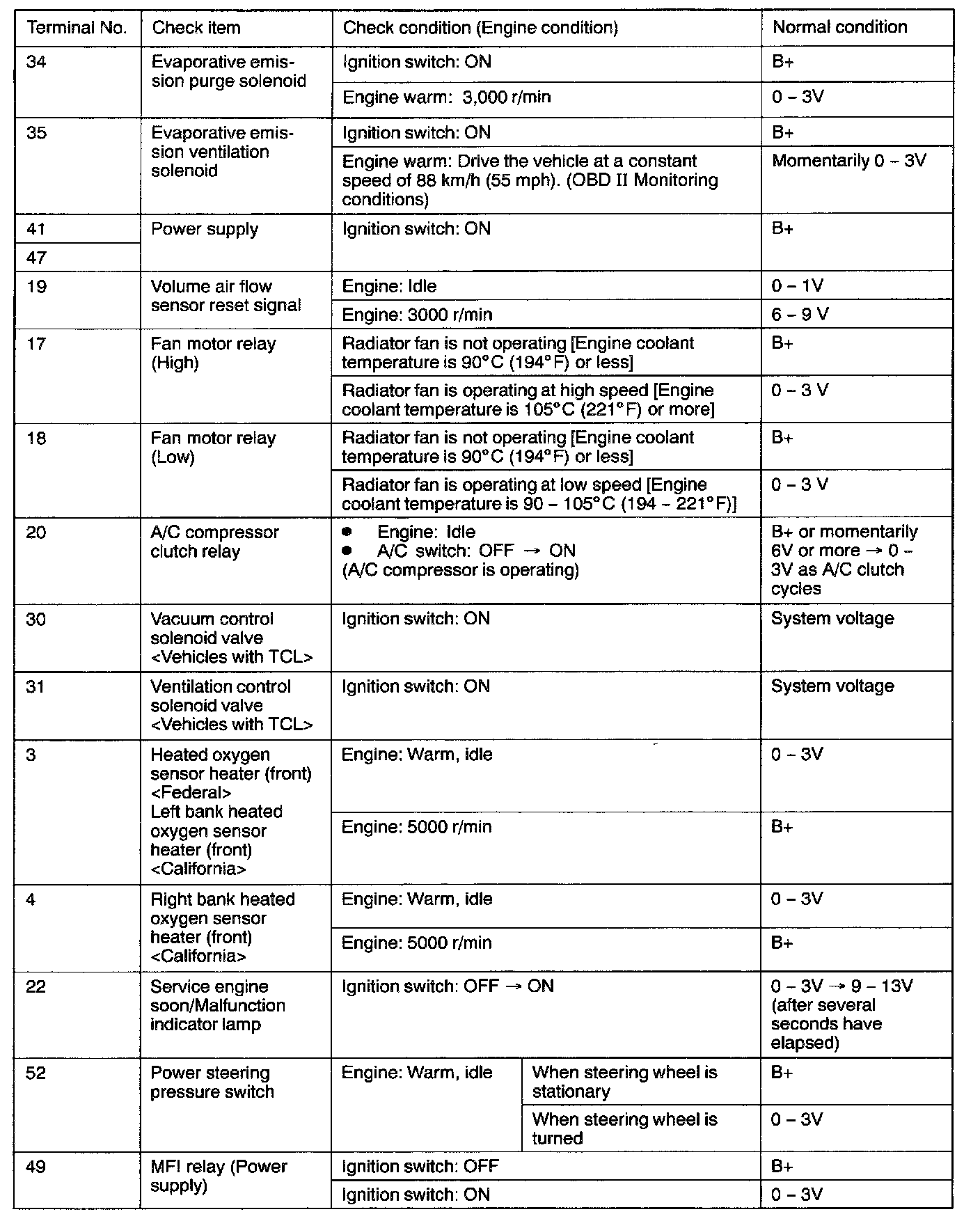

Part 2:

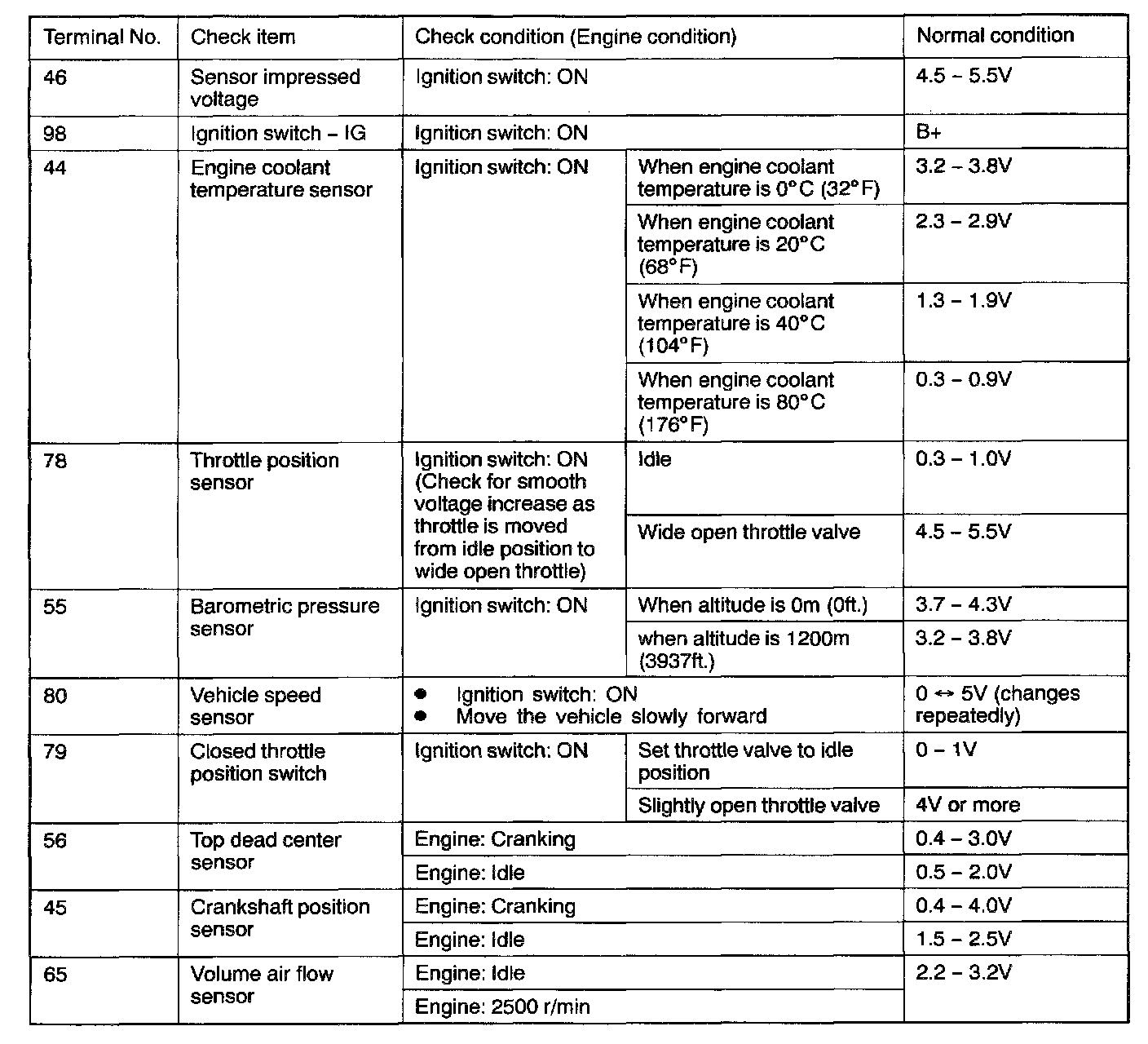

Part 3:





Part 4:
