Compressor Speed Sensor
>>
Locations
Compressor Speed Sensor: Locations

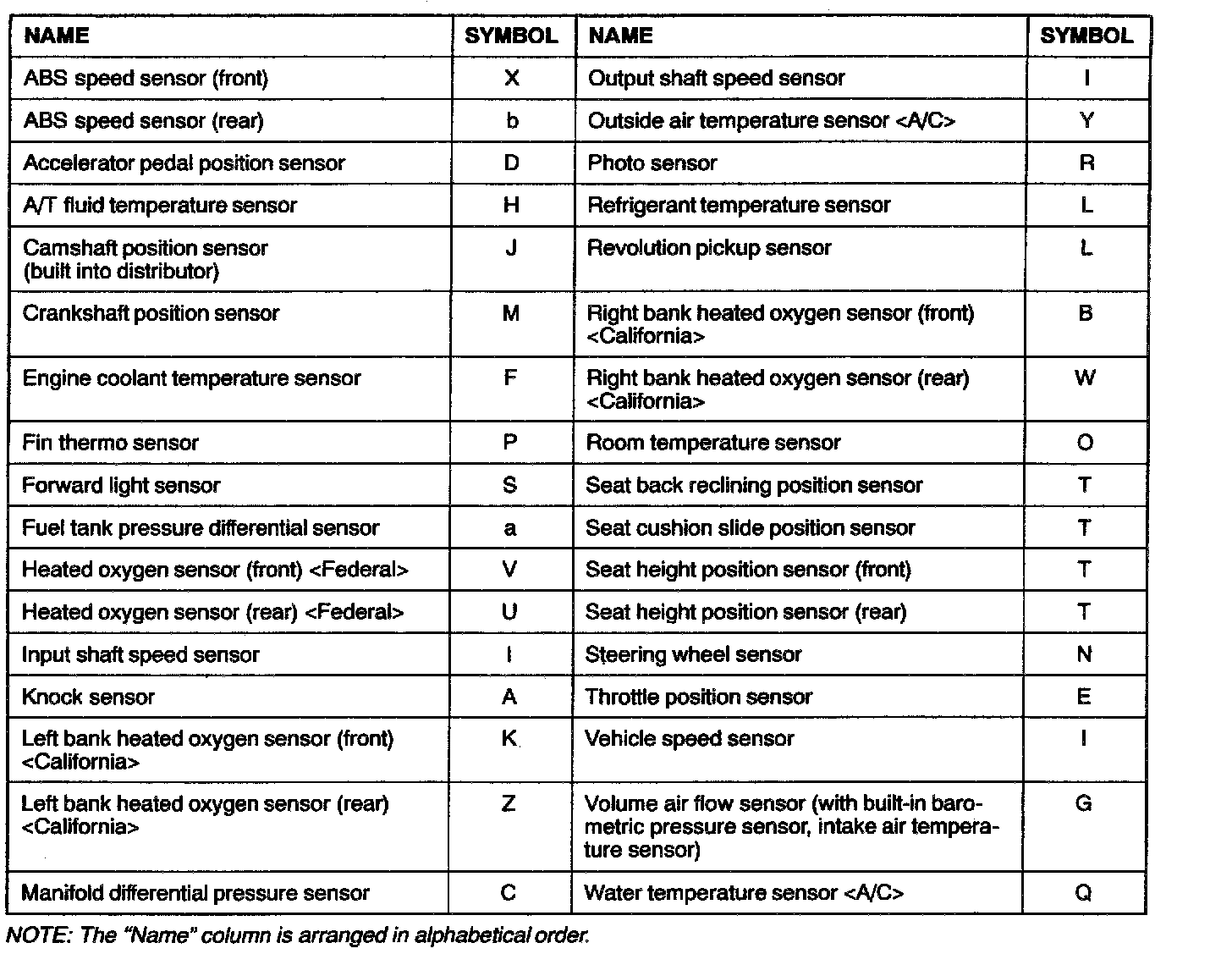

Component Location (Part 1 Of 2):

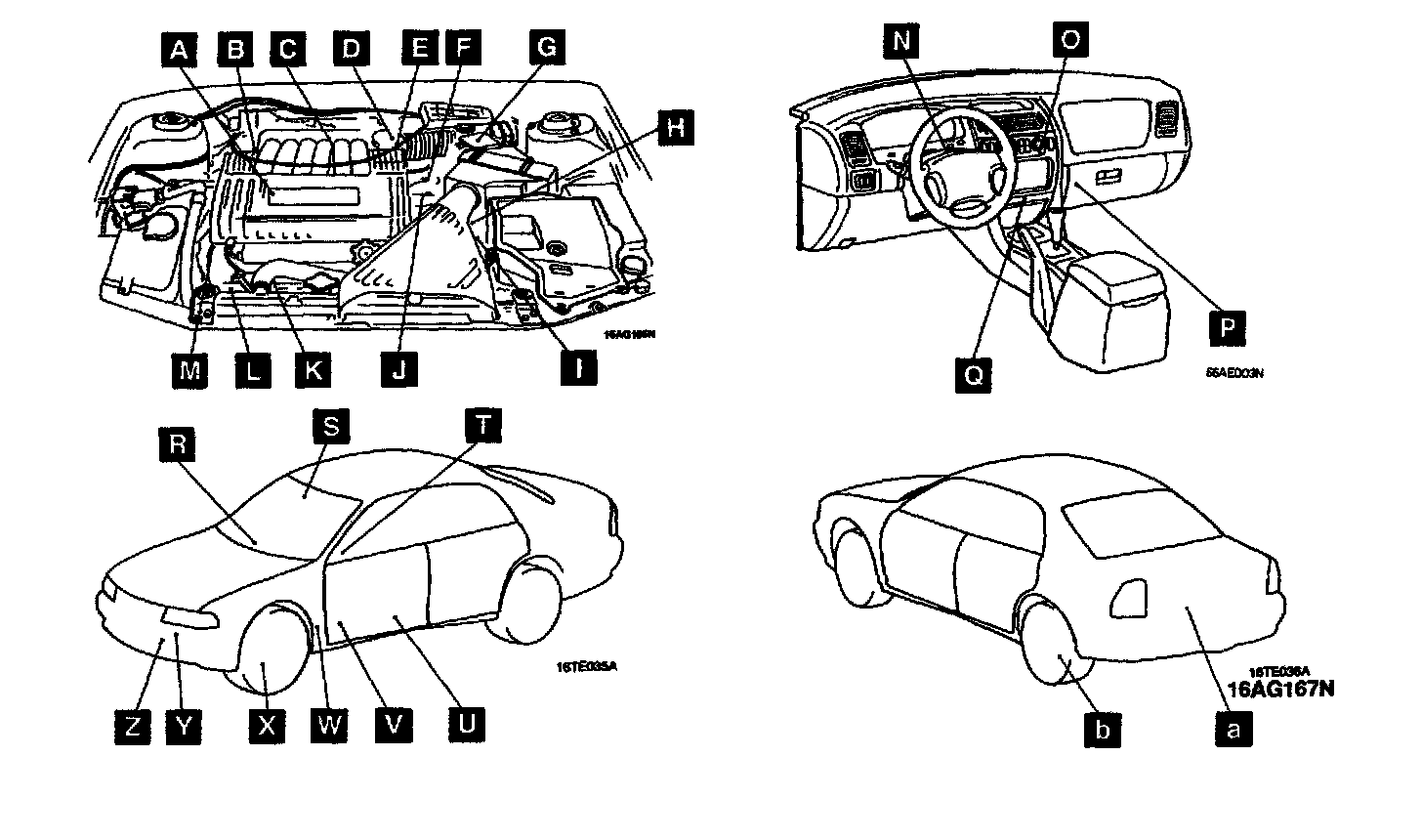

Component Location (Part 2 Of 2):

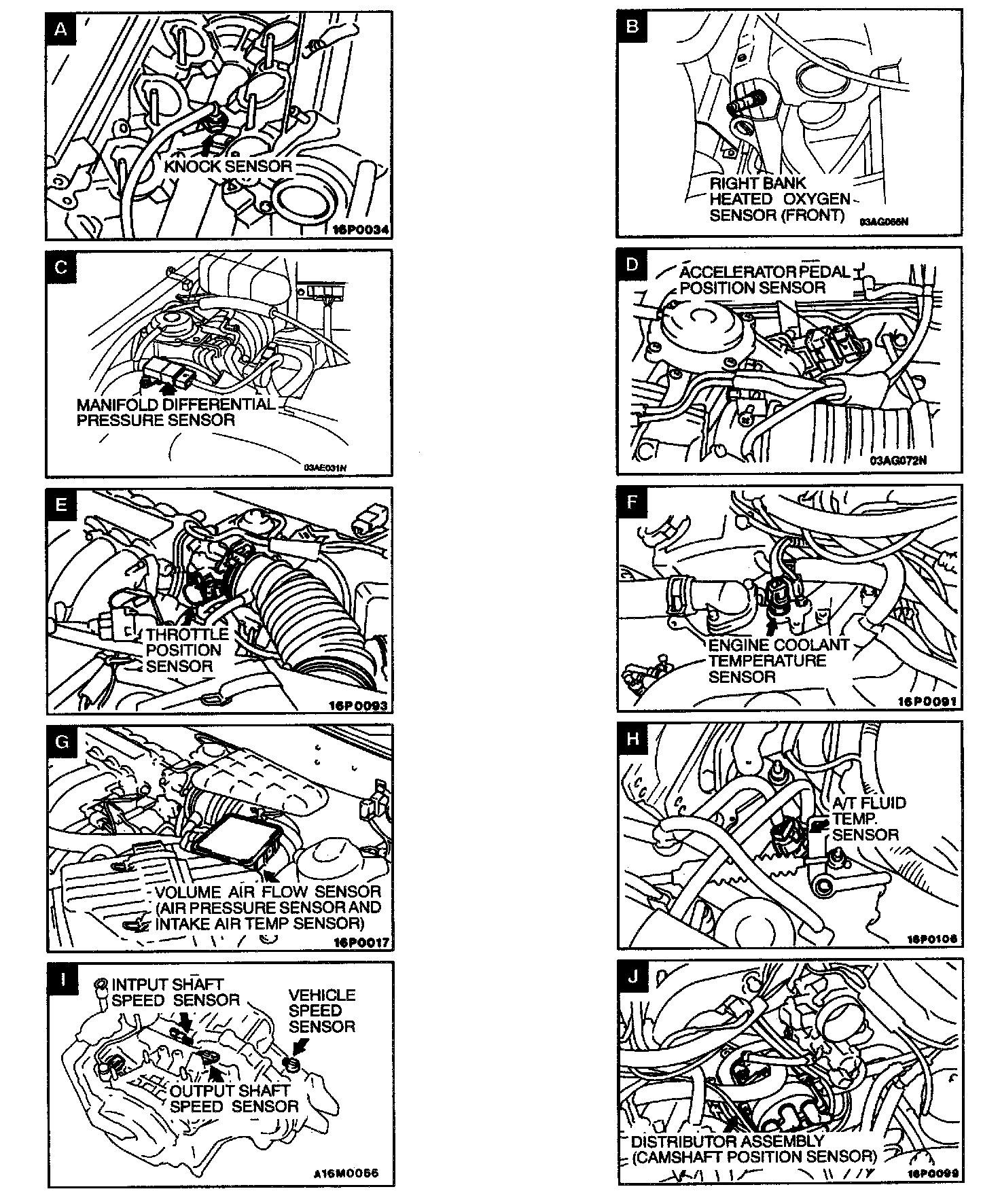

Component Views (Part 1 Of 3):
