Compressor Speed Sensor: Testing and Inspection

REVOLUTION PICK UP SENSOR CHECK

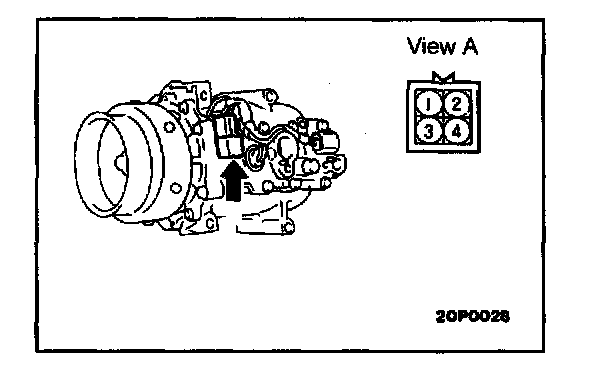

Check that the resistance between connector terminals 1 and 3 is in the standard value range.

Standard value: 405 ± 35 Ohms (at 20 °C)
