Emission Control Systems: Service and Repair

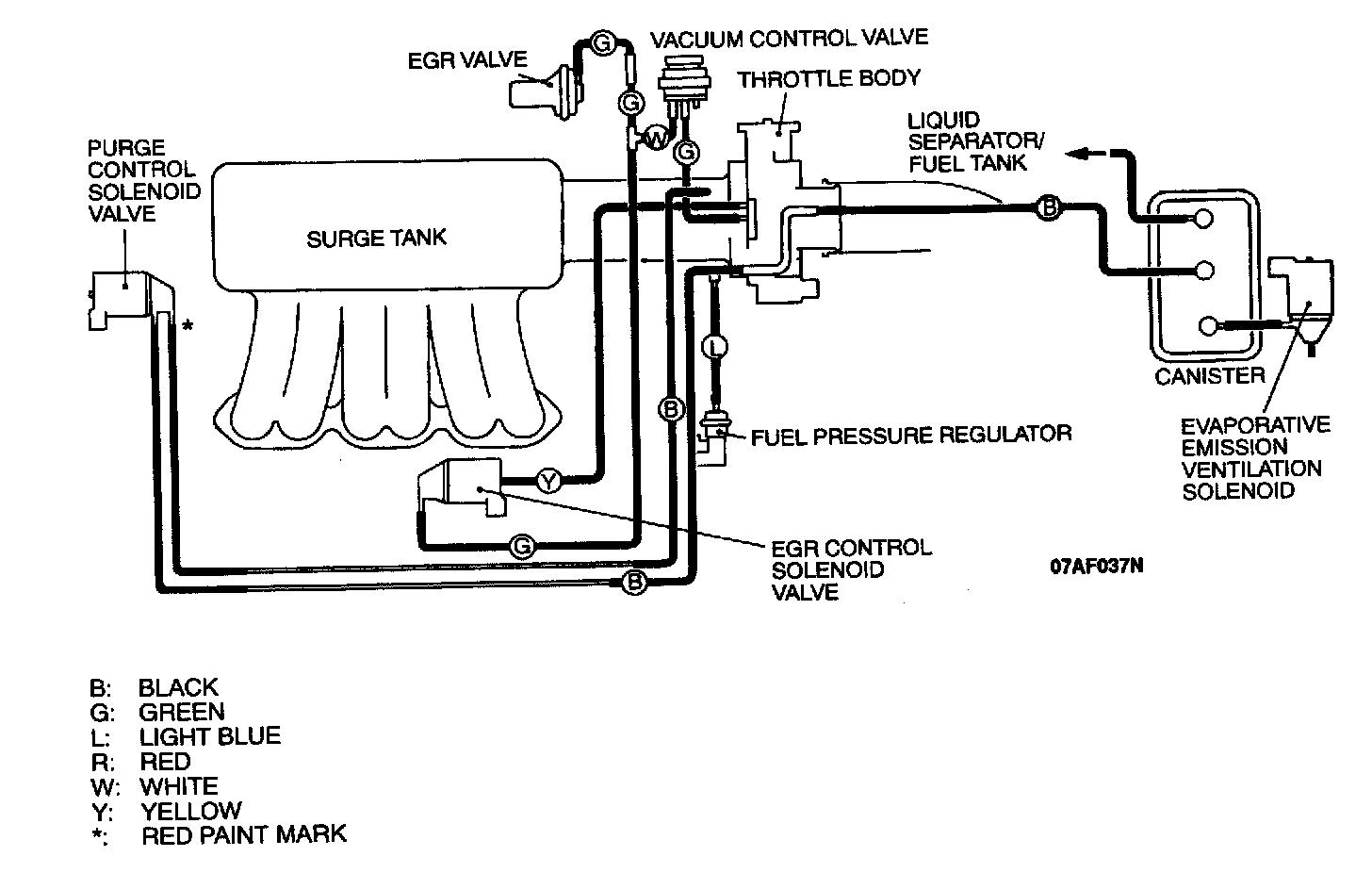

Vacuum Hoses Routing <Non TCL Vehicles>:

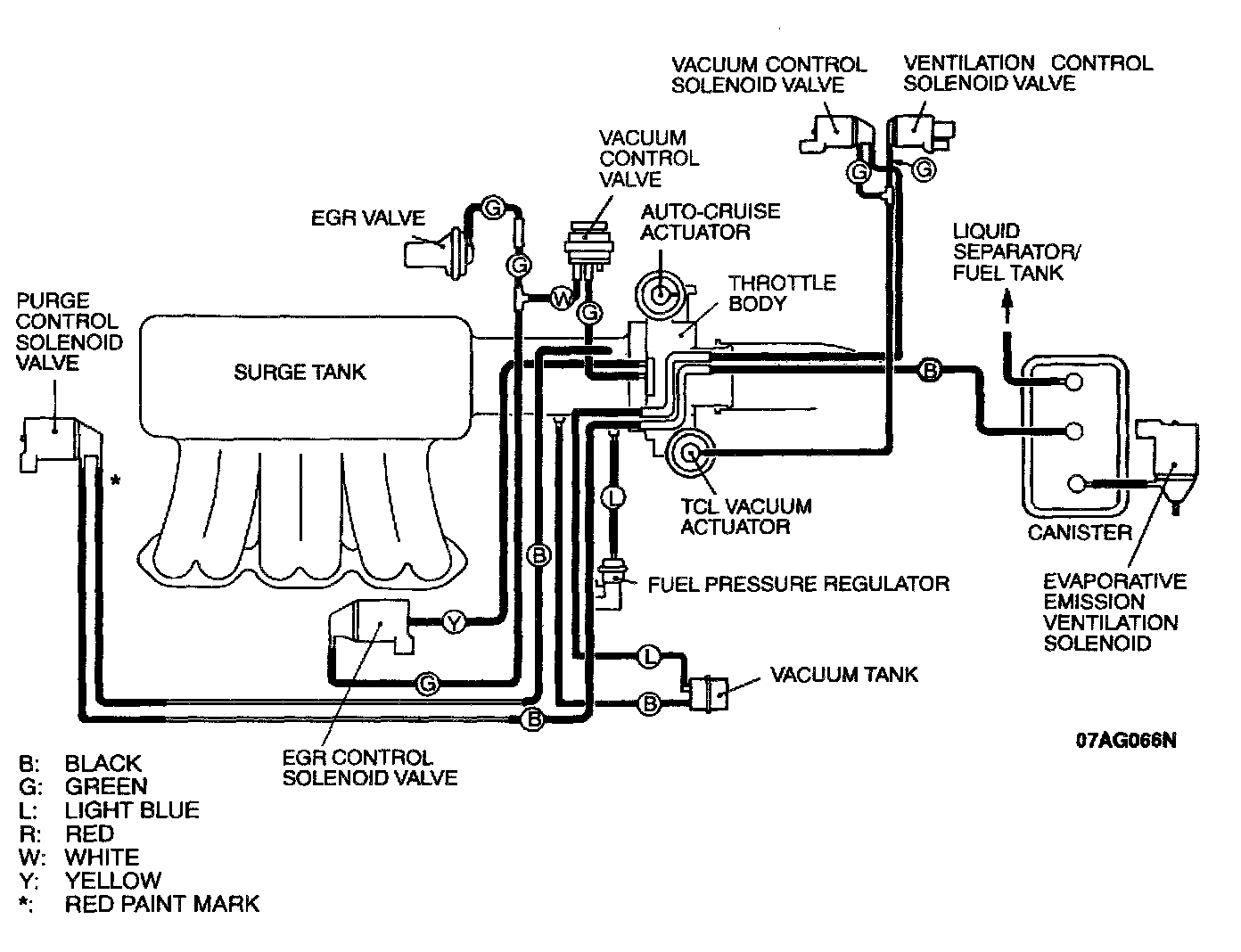

Vacuum Hoses Routing <TCL Vehicles>:

VACUUM HOSE INSTALLATION
1. When connecting the vacuum hoses, they should be securely inserted onto the nipples.
2. Connect the hoses correctly, using the VACUUM HOSE ROUTING as a guide.
