Ignition System: Service and Repair

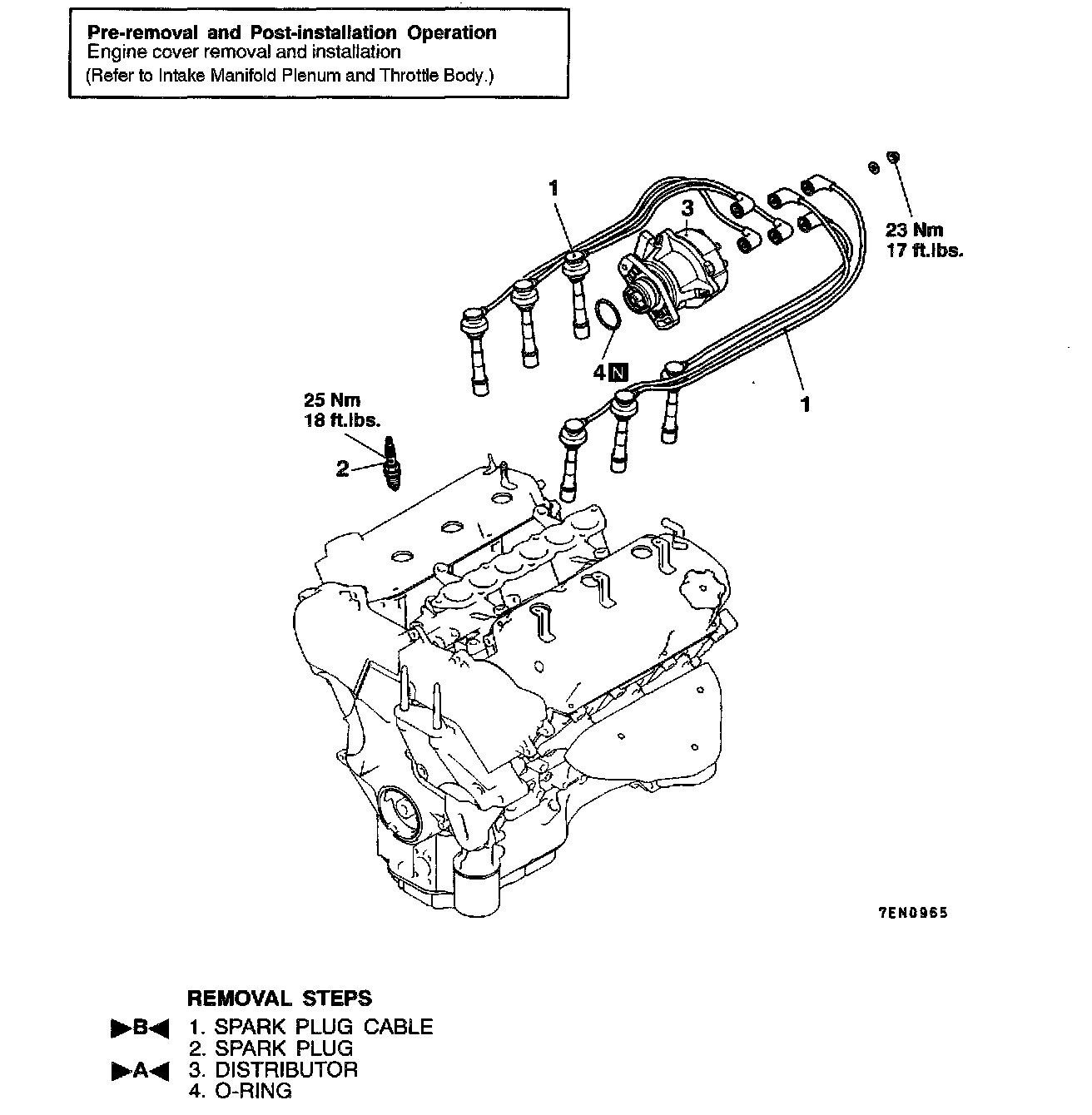

REMOVAL AND INSTALLATION




INSTALLATION SERVICE POINTS

>A< DISTRIBUTOR INSTALLATION
1. Turn the crankshaft so that the No. 1 cylinder is at top dead center.

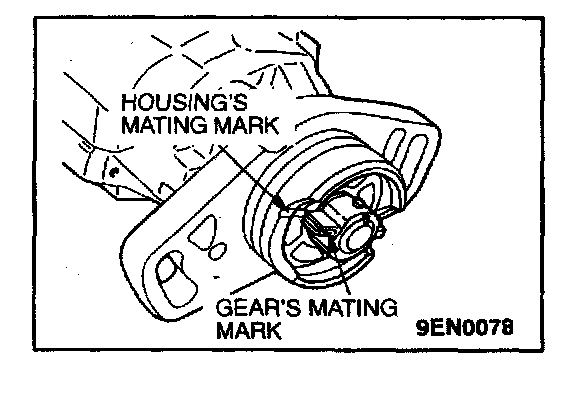

2. Align the distributor housing and gear mating marks and install the distributor.

>B< SPARK PLUG CABLE INSTALLATION
Improper arrangement of spark plug cables will induce voltage between the cables, causing misfiring and developing a surge at acceleration in high-speed operation.

Therefore, be careful to arrange the spark plug cables properly paying attention to the following items.
1. Install the cables securely to avoid possible contact with metal parts.
2. Install the cables neatly, ensuring they are not too tight, loose, twisted or kinked.
