Scan Tool Testing and Procedures

SERVICE DATA REFERENCE TABLE

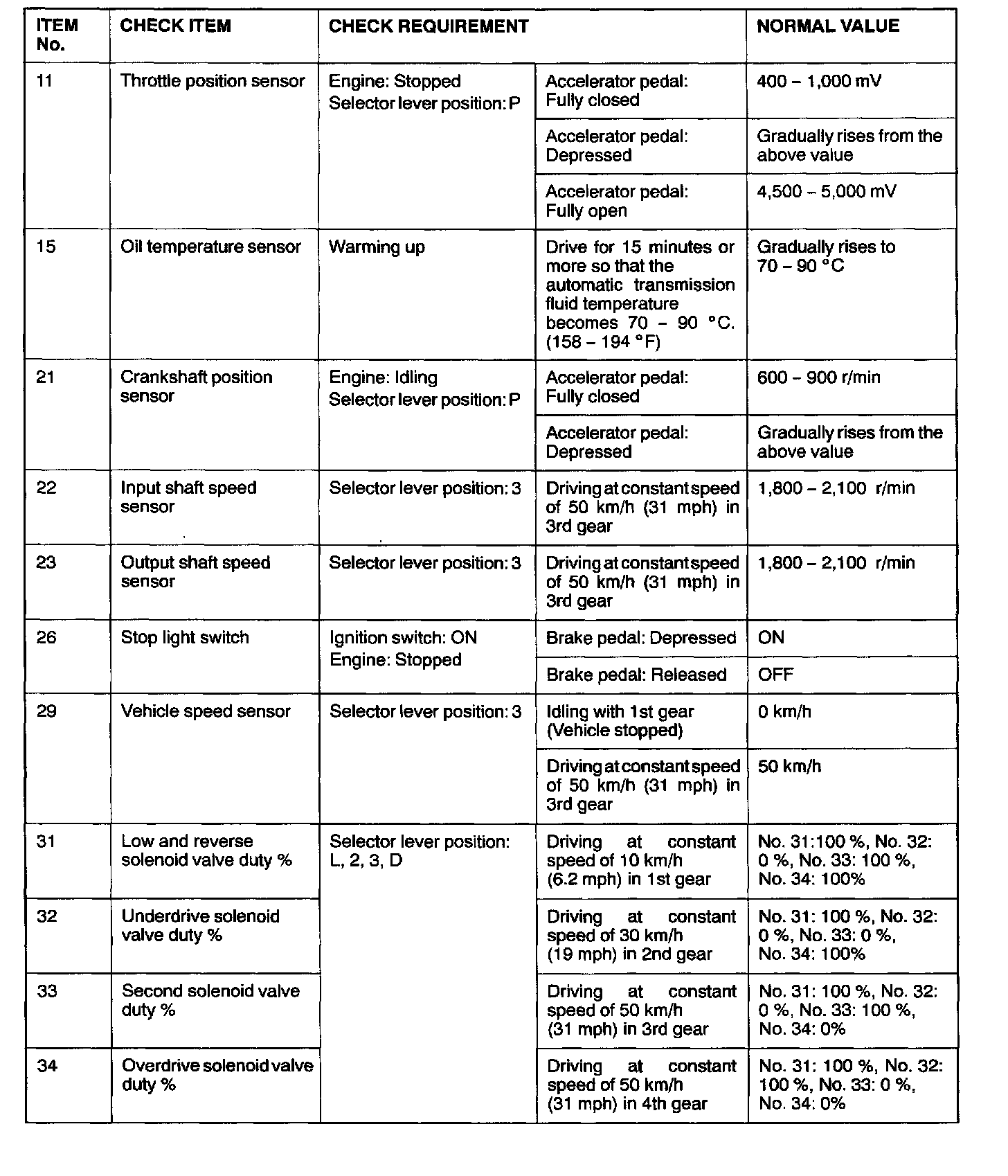

Part 1 of 3

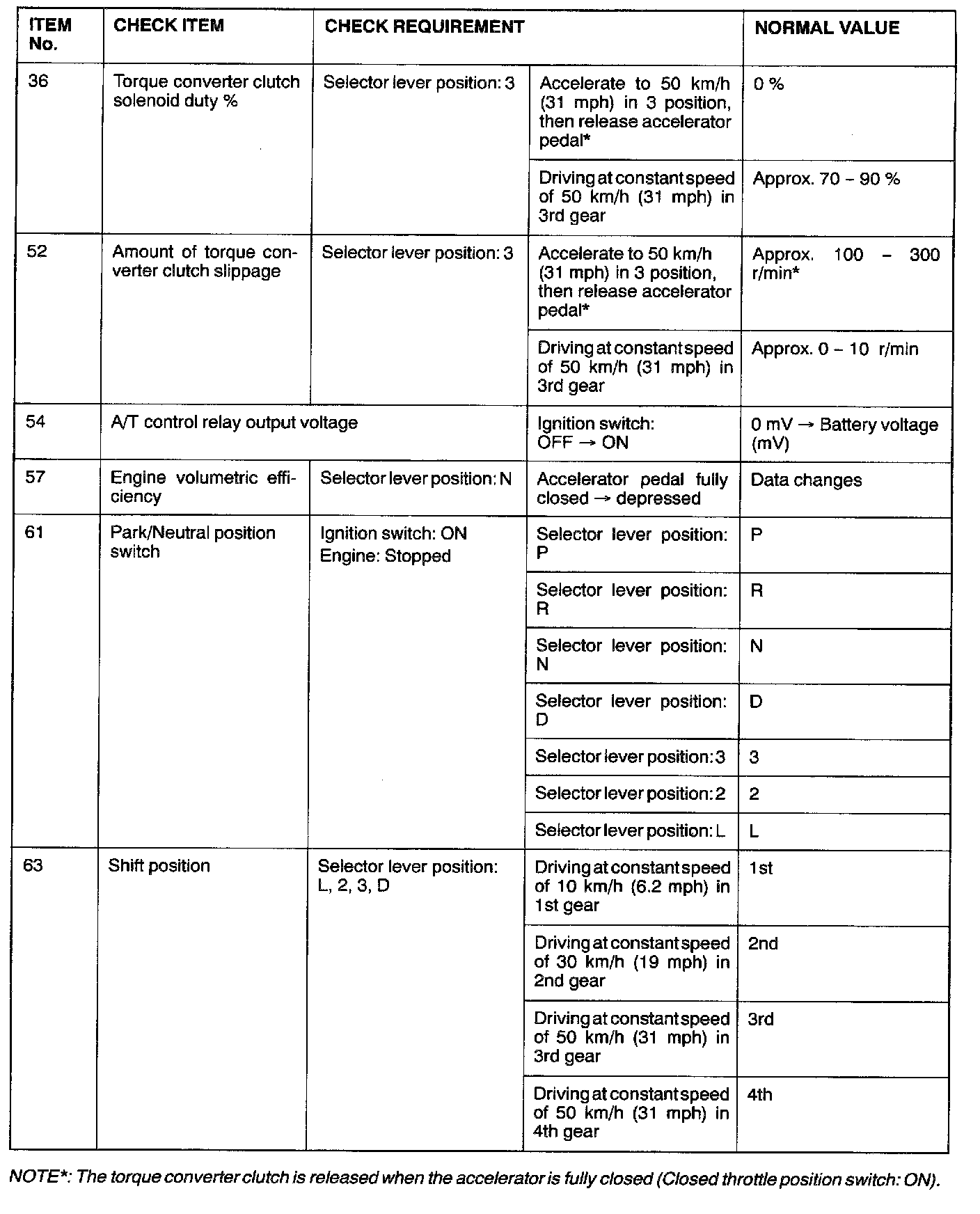

Part 2 of 3

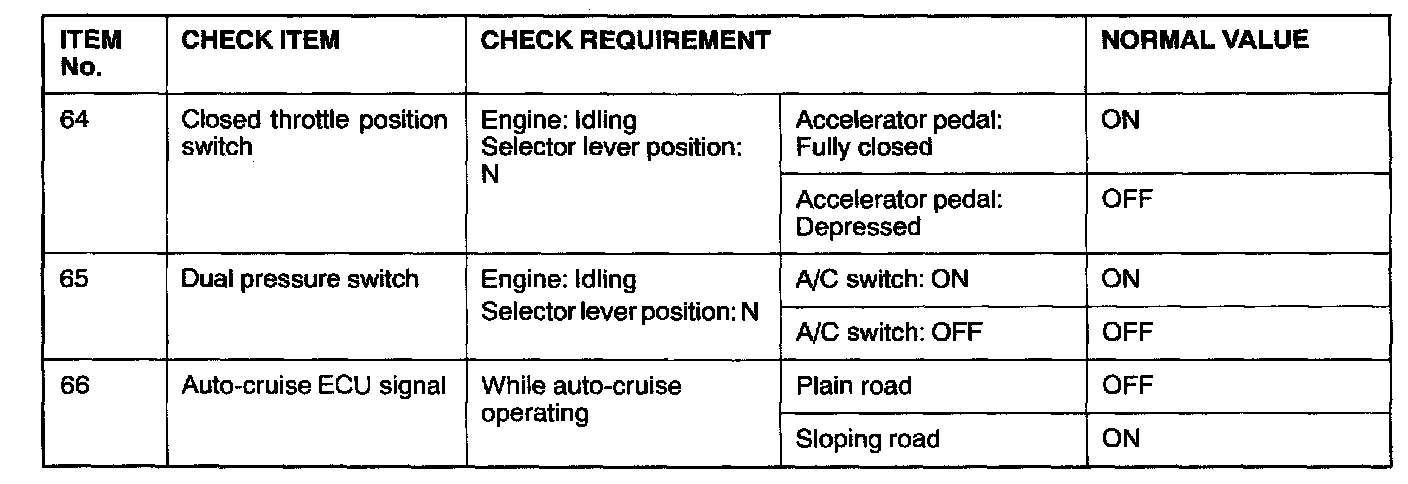

Part 3 of 3

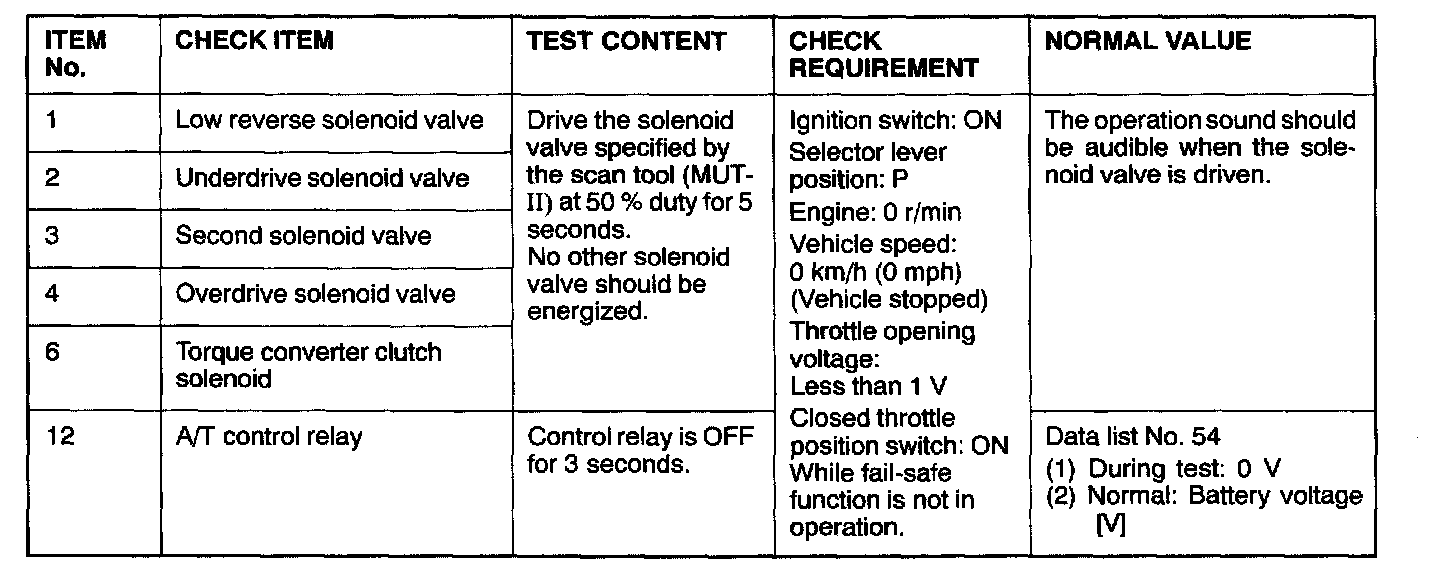

ACTUATOR TEST JUDGEMENT VALUE

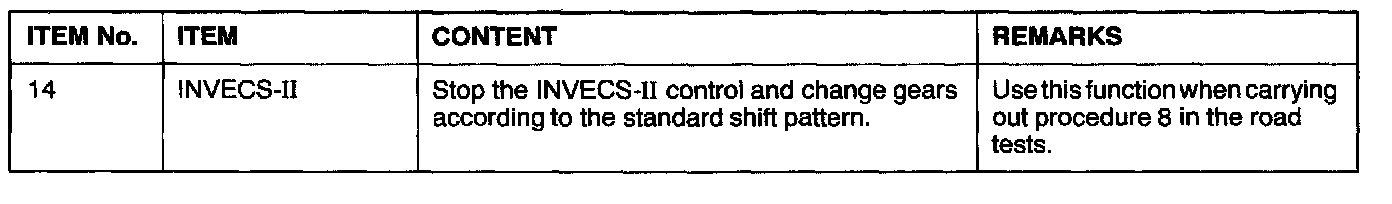

INVECS-II CANCEL COMMAND
