Connecting Rod Bearing Clearance

Connecting Rod Bearing Identification

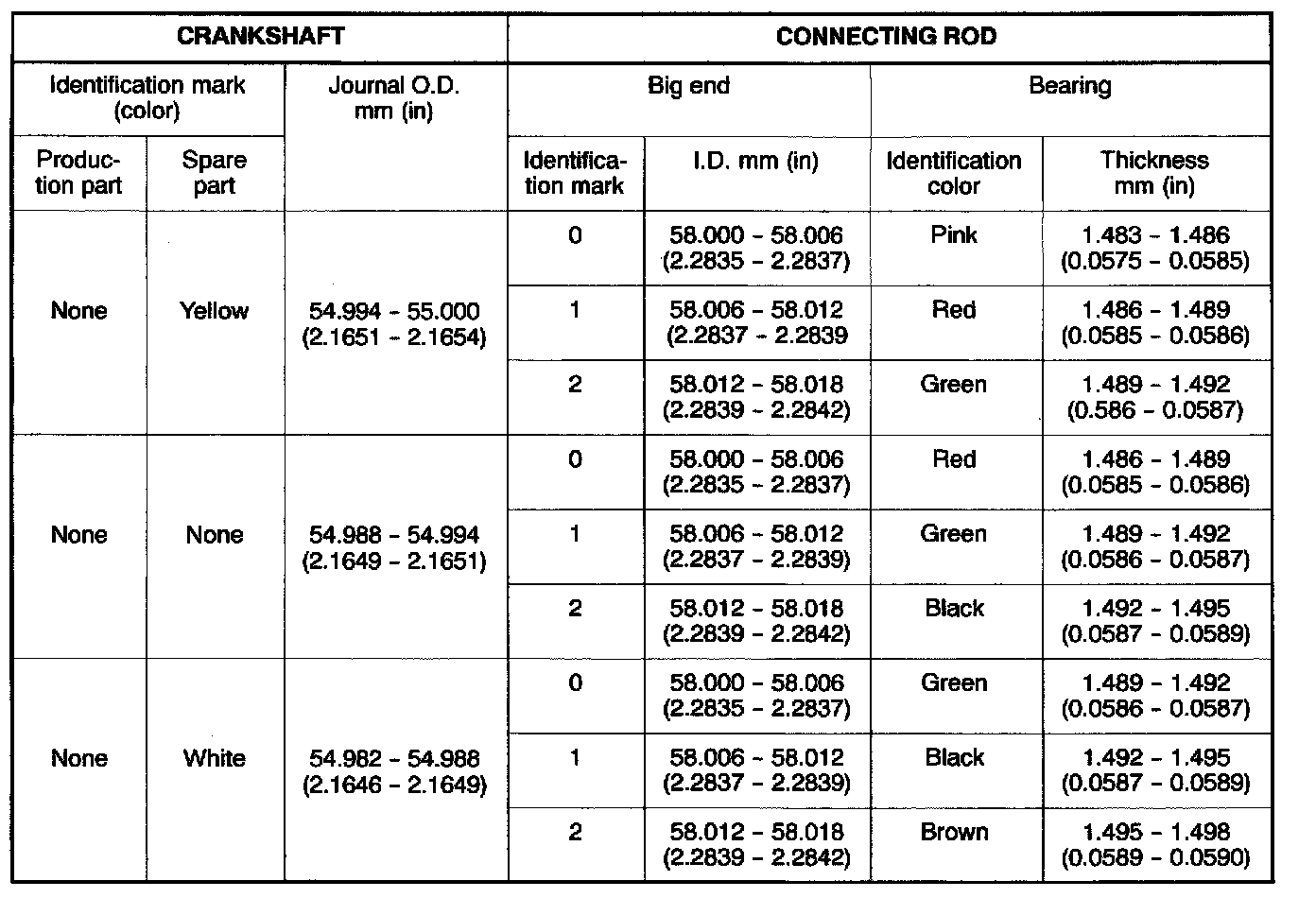

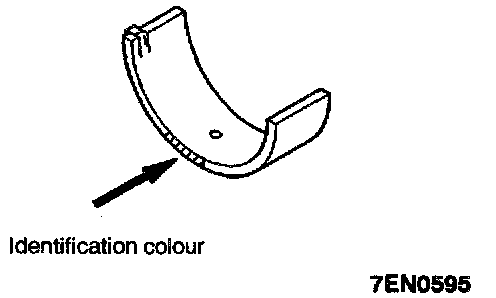

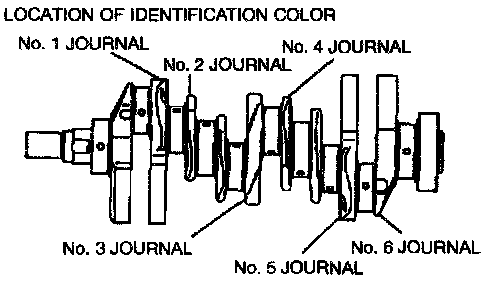

Measure the crankshaft journal diameter and confirm its classification from the table. In the case of a bearing supplied as a service part, its identification color is painted at the position shown in the illustration.

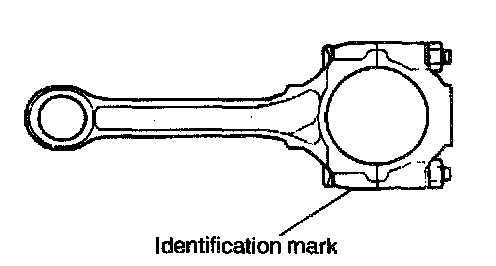

The connecting rod identification mark is stamped at the position shown in the illustration.
