Manual Transmission

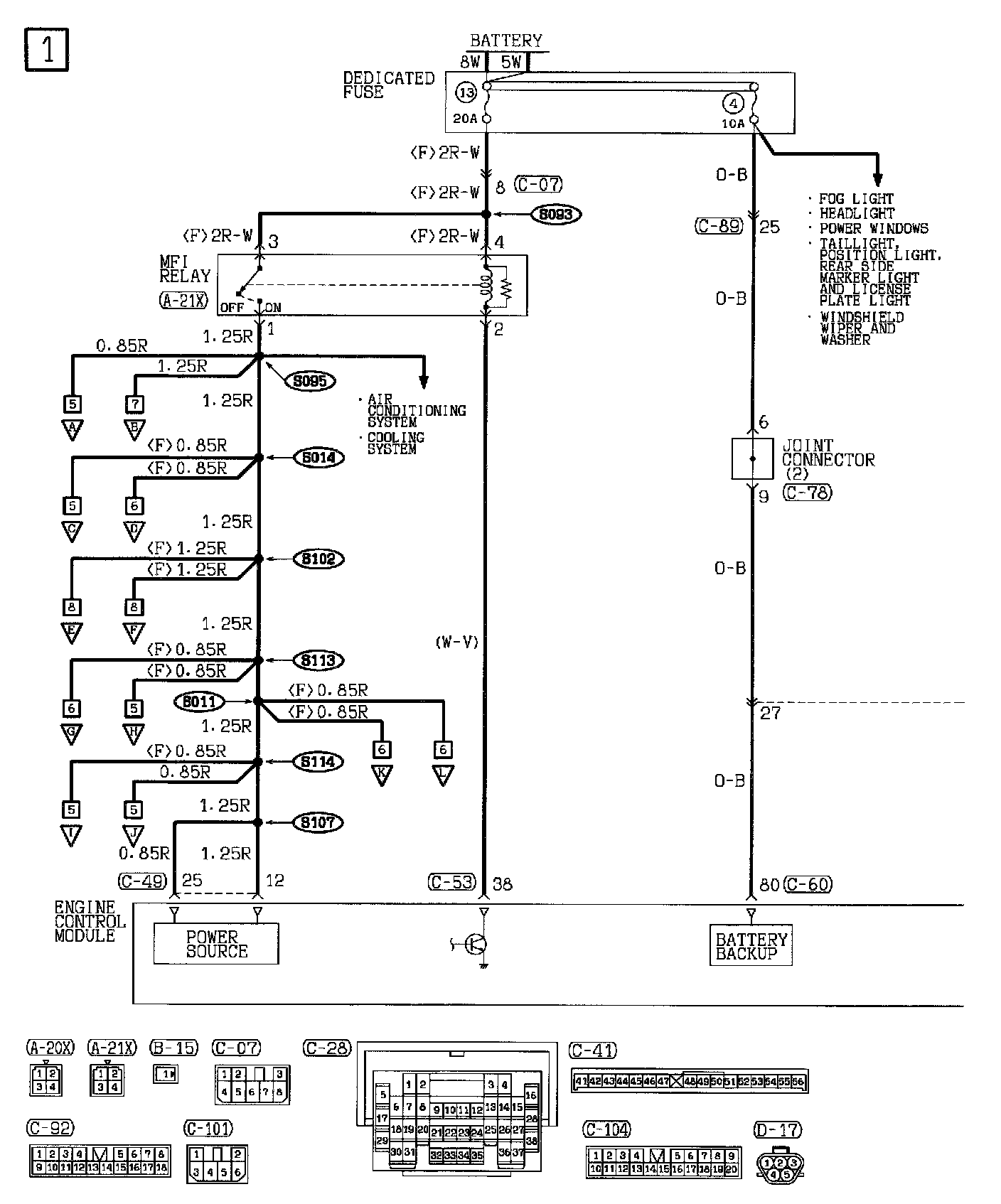

MFI System (Part 1 Of 10):

Battery
Dedicated Fuse
MFI Relay
Joint Connector
Engine Control Module
- Power Source
- Battery Back Up

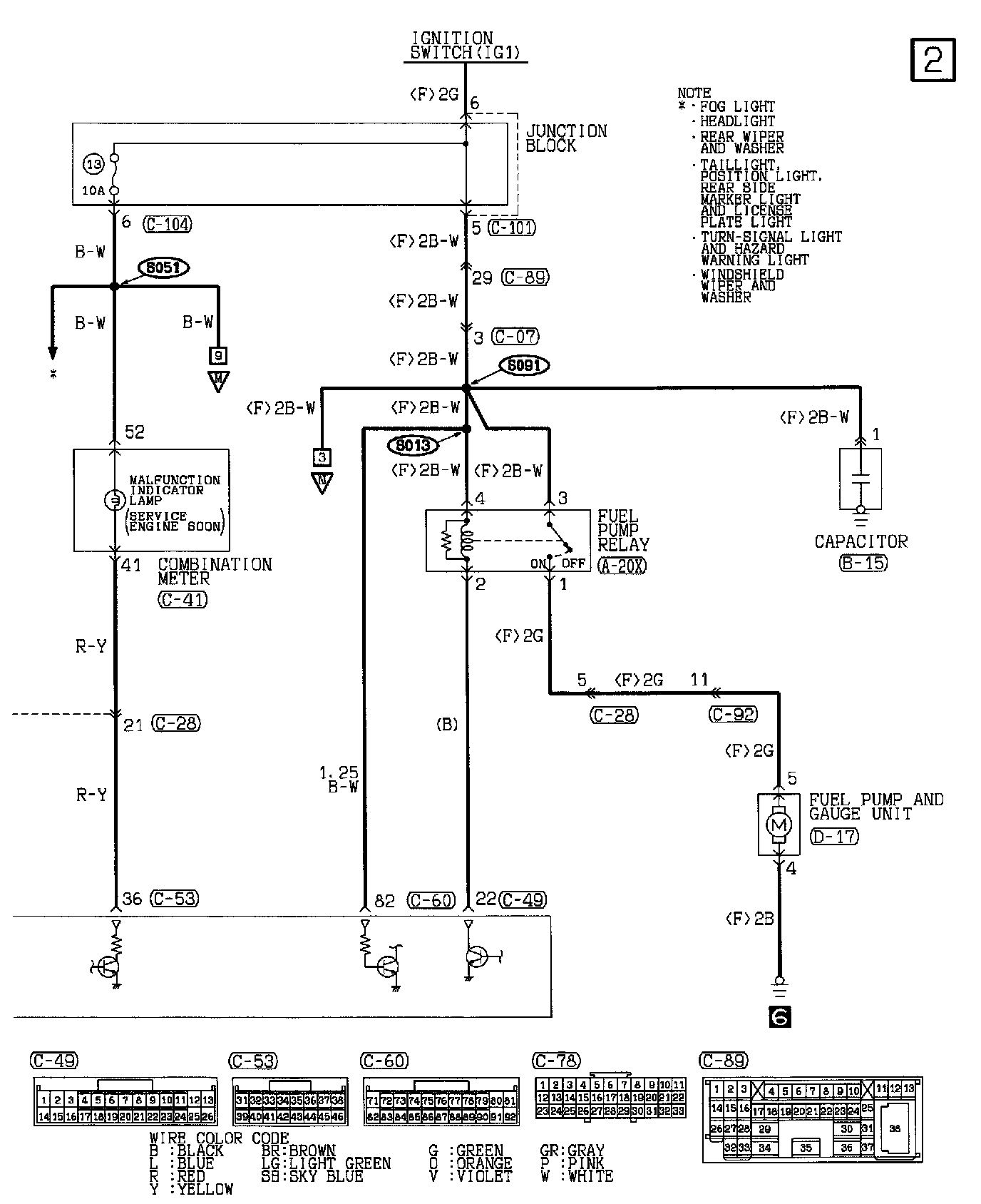

MFI System (Part 2 Of 10):

Junction Block
Combination Meter
Fuel Pump Relay
Capacitor
Fuel Pump and Gauge Unit

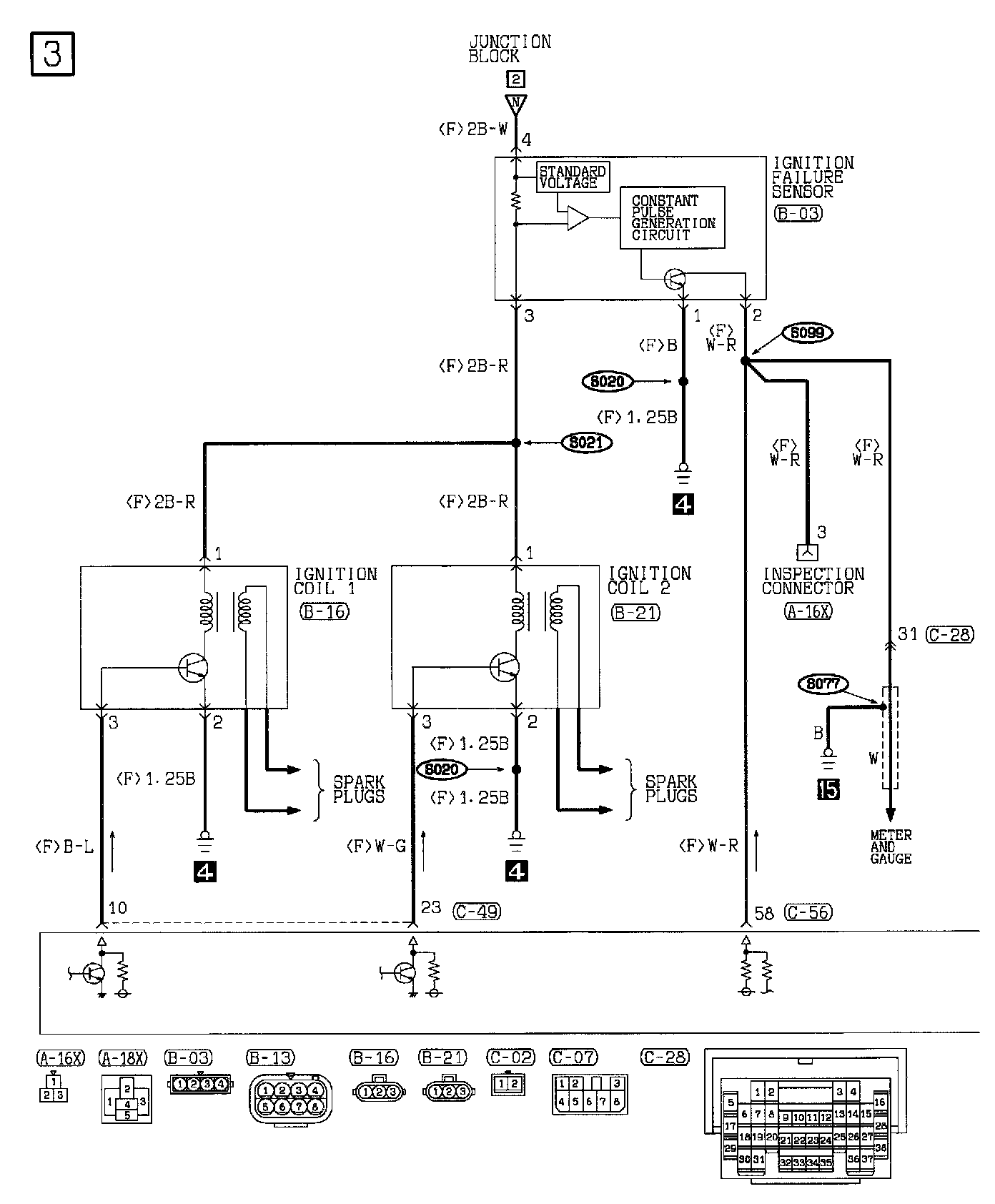

MFI System (Part 3 Of 10):

Ignition Failure Sensor
Ignition Coil

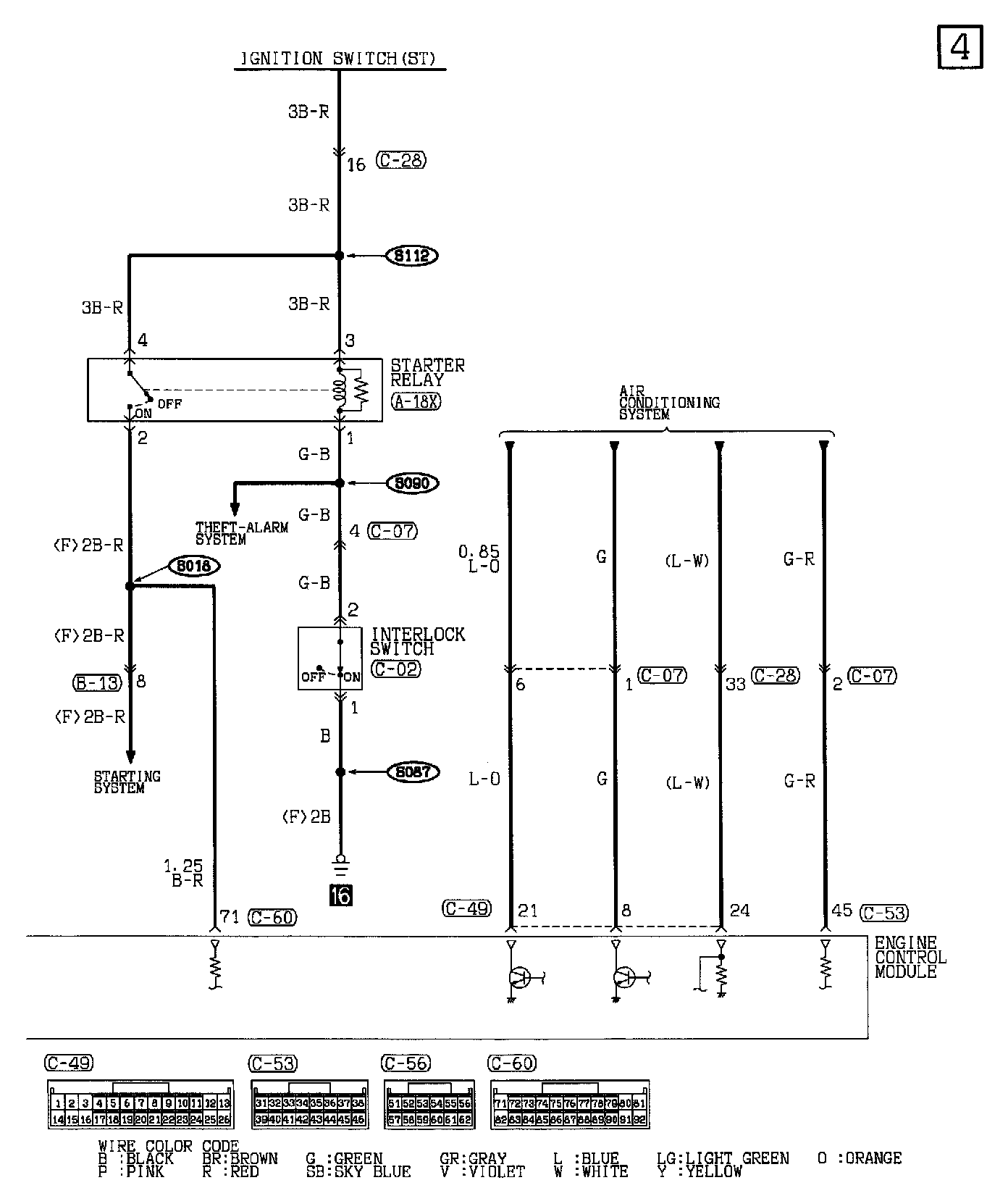

MFI System (Part 4 Of 10):

Starter Relay
Engine Control Module
Interlock Switch

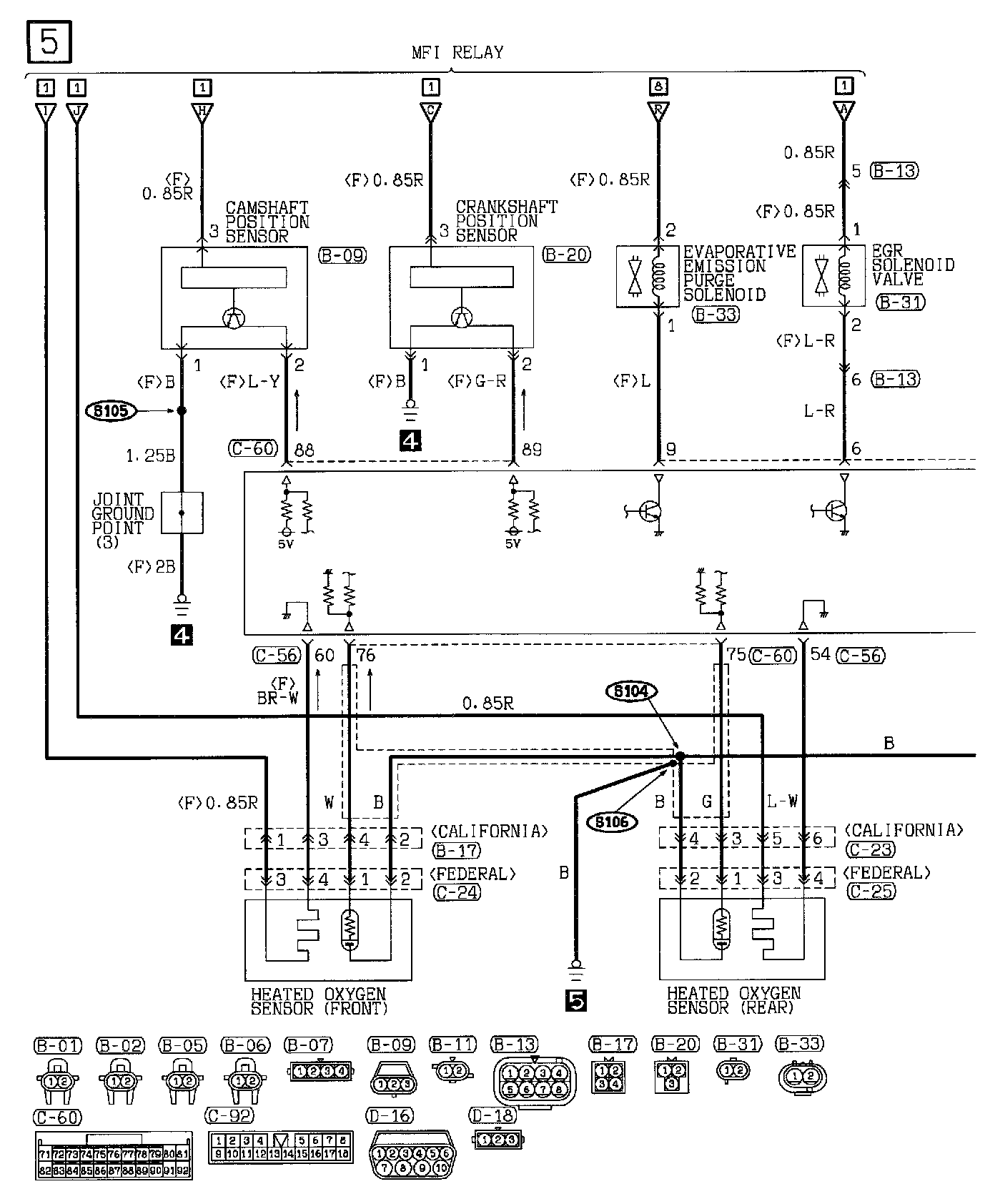

MFI System (Part 5 Of 10):

Camshaft Position Sensor
Crankshaft Position Sensor
Evaporative Emission Purge Solenoid
EGR Solenoid Valve
Joint Ground Point
Heated Oxygen Sensor (Front & Rear)

MFI System (Part 6 Of 10):

Injector
Engine Control Module
Engine Coolant Temperature Sensor
Throttle Position Sensor
Fuel Tank Differential Pressure Sensor

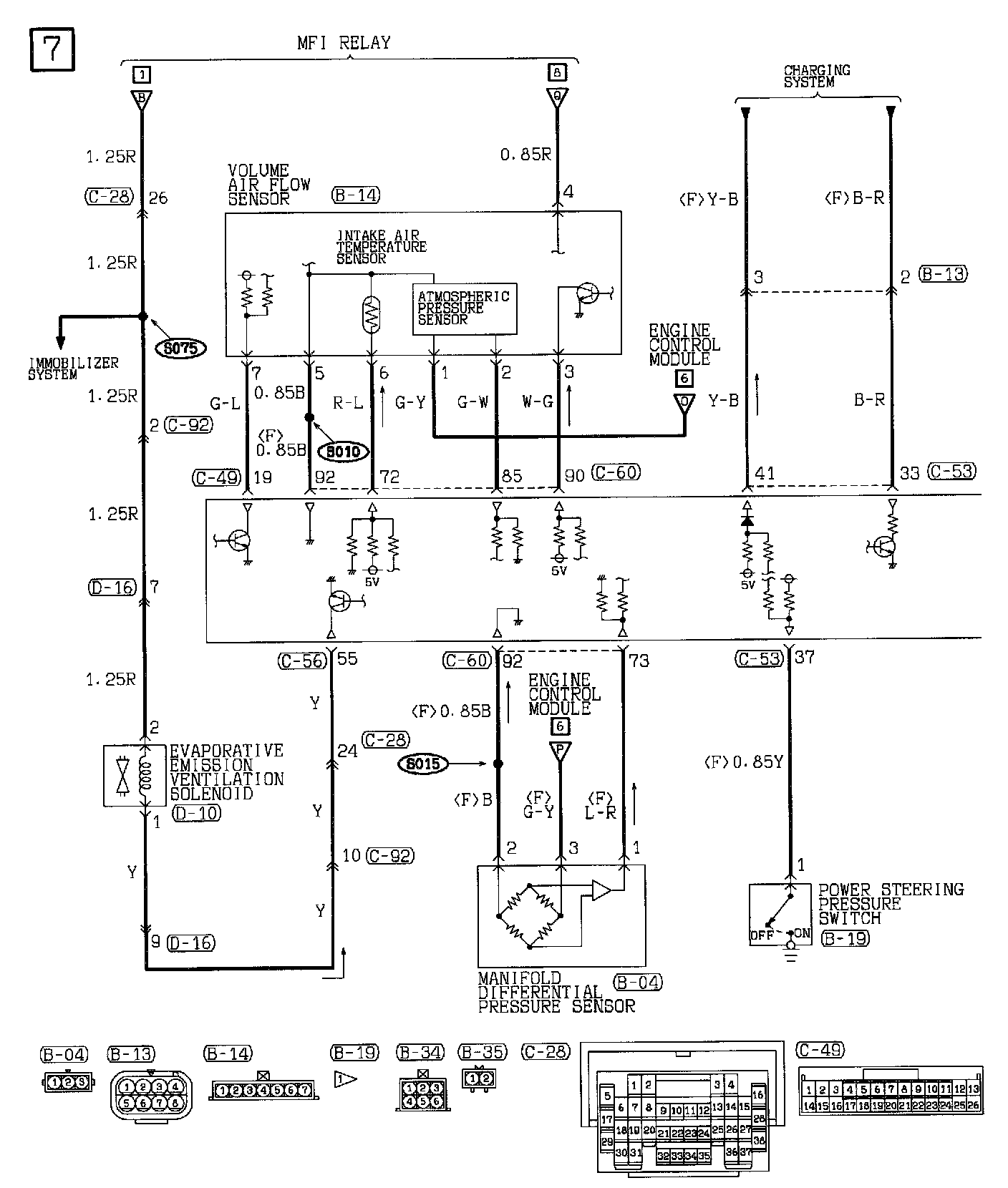

MFI System (Part 7 Of 10):

Volume Air Flow Sensor
Evaporative Emission Ventilation Solenoid
Manifold Differential Pressure Sensor
Power Steering Pressure Switch

MFI System (Part 8 Of 10):

Idle Air Control Motor
Engine Control Module
Joint Ground Point
Knock Sensor

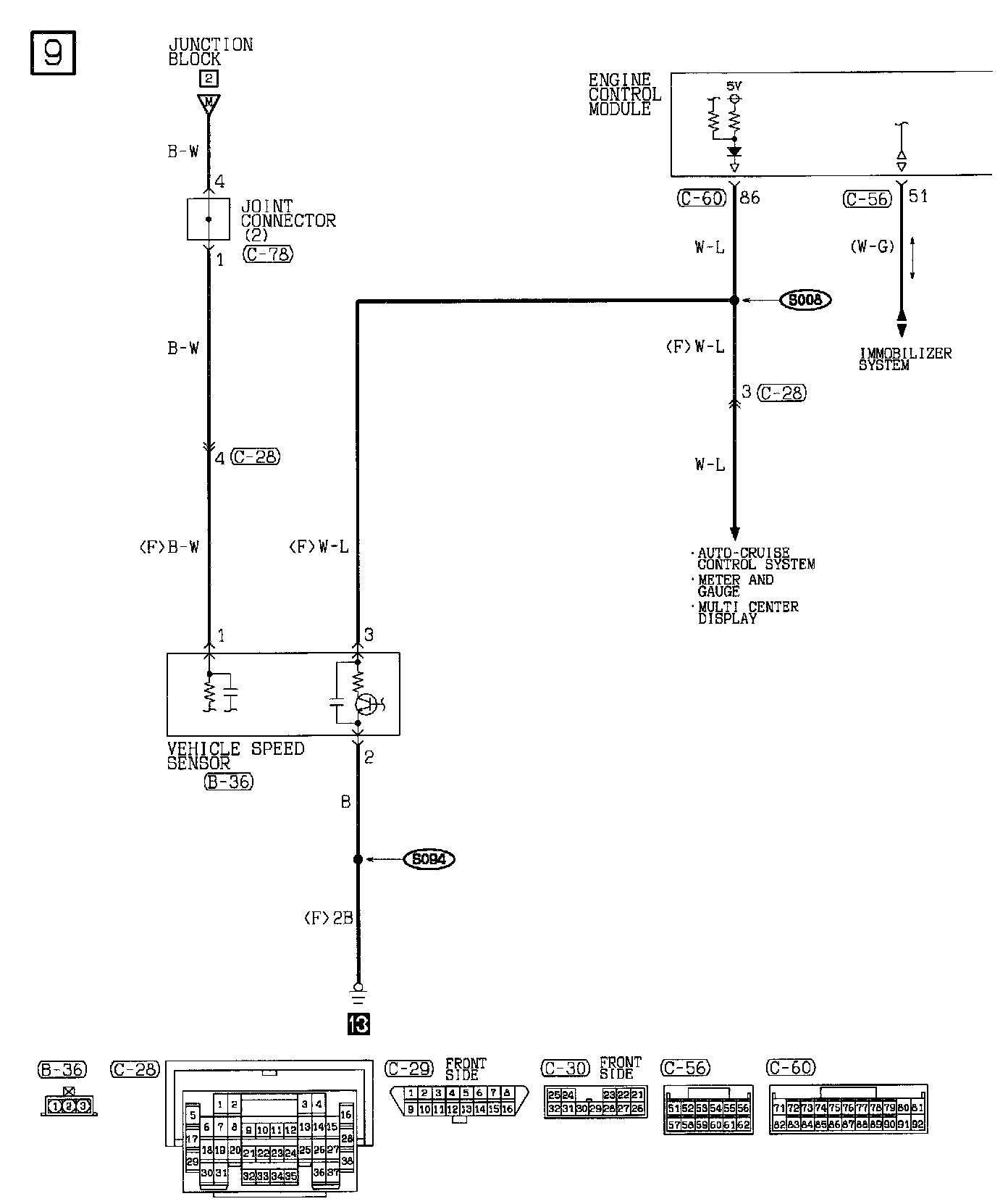

MFI System (Part 9 Of 10):

Joint Connector
Vehicle Speed Sensor
Engine Control Module

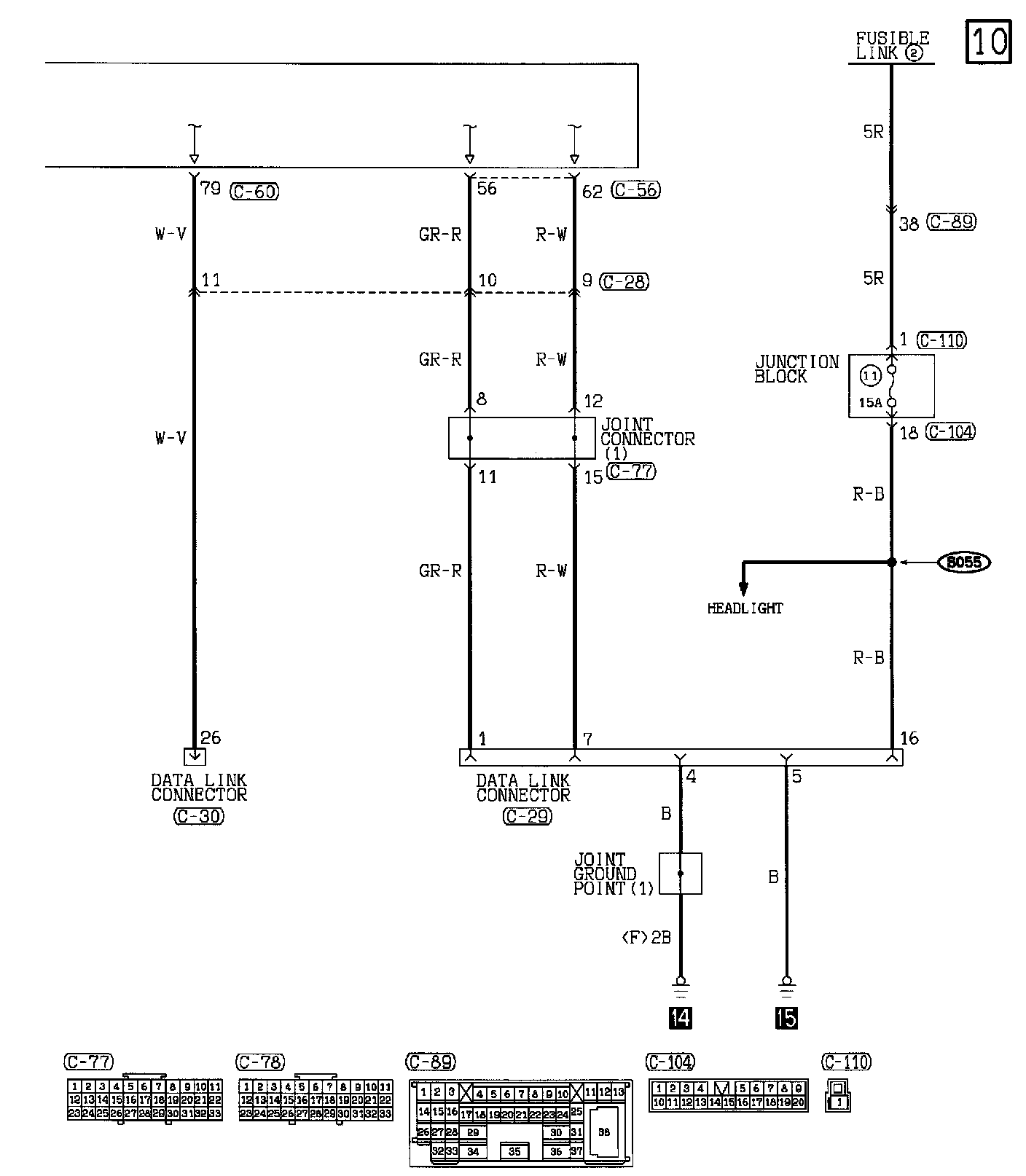

MFI System (Part 10 Of 10):

Joint Connector
Junction Block
Joint Ground Point
