Galant LS V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

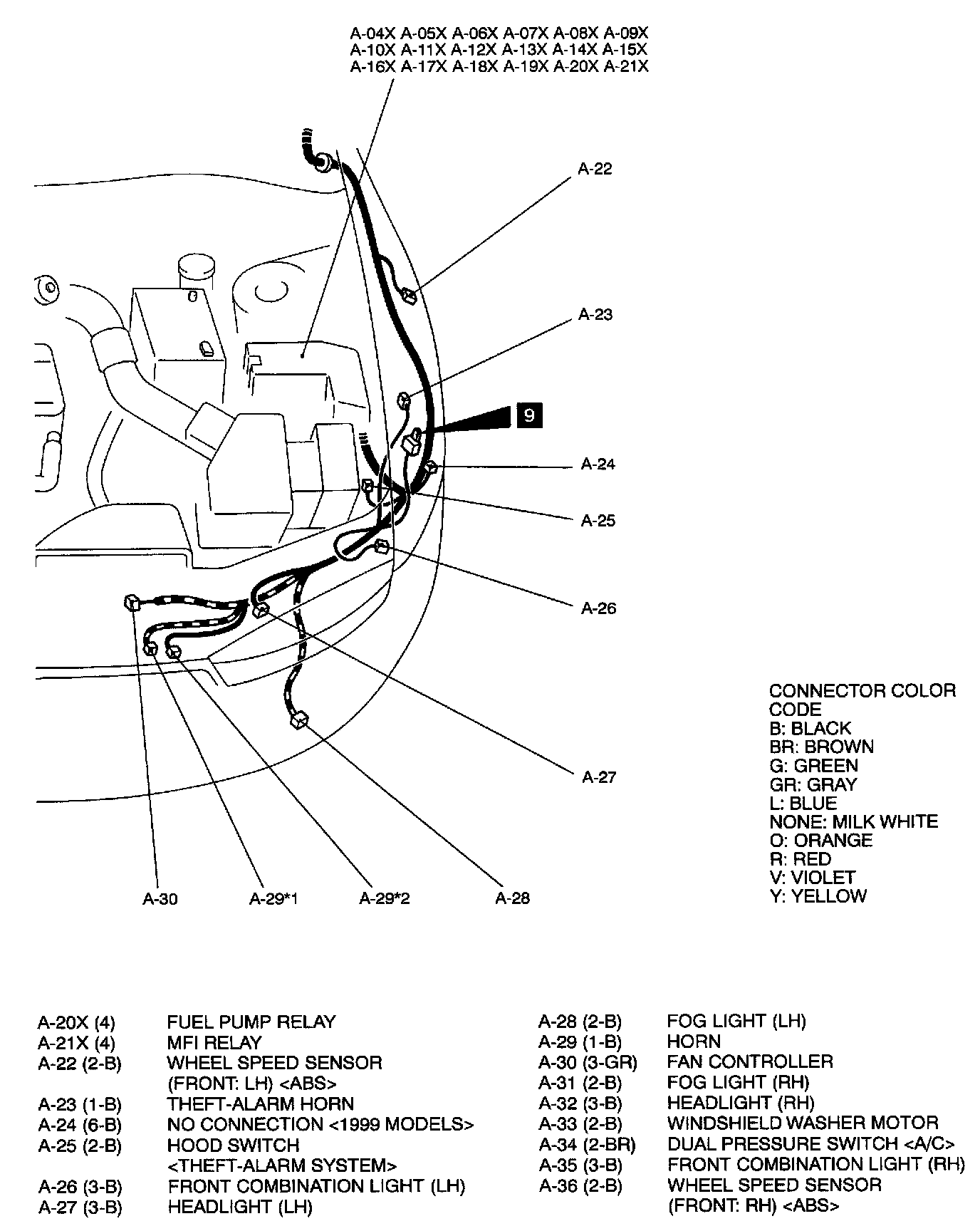

A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness
A-01 (4-B) Thru A-19X (4):
A-20X (4) Thru A-36 (2-B):
