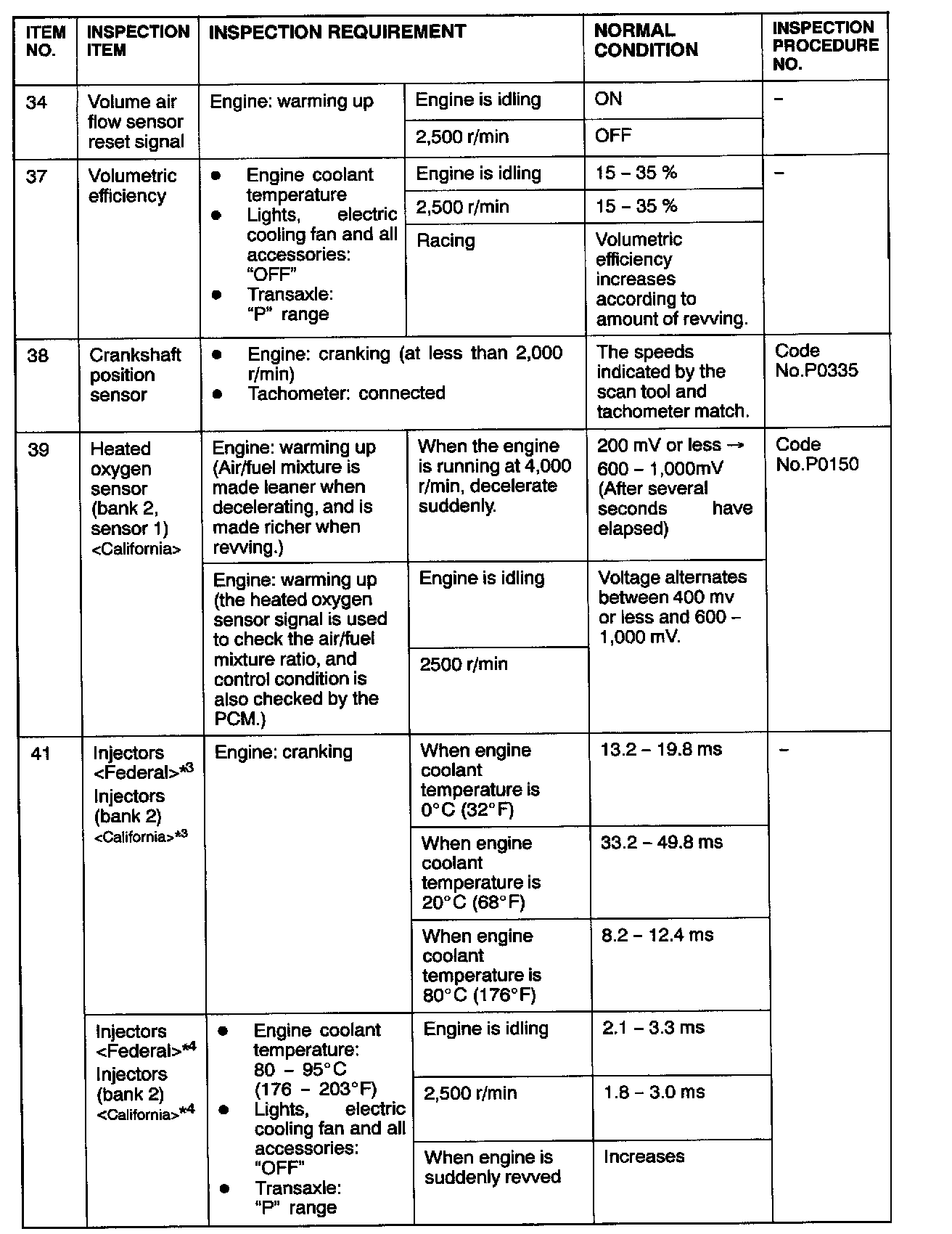

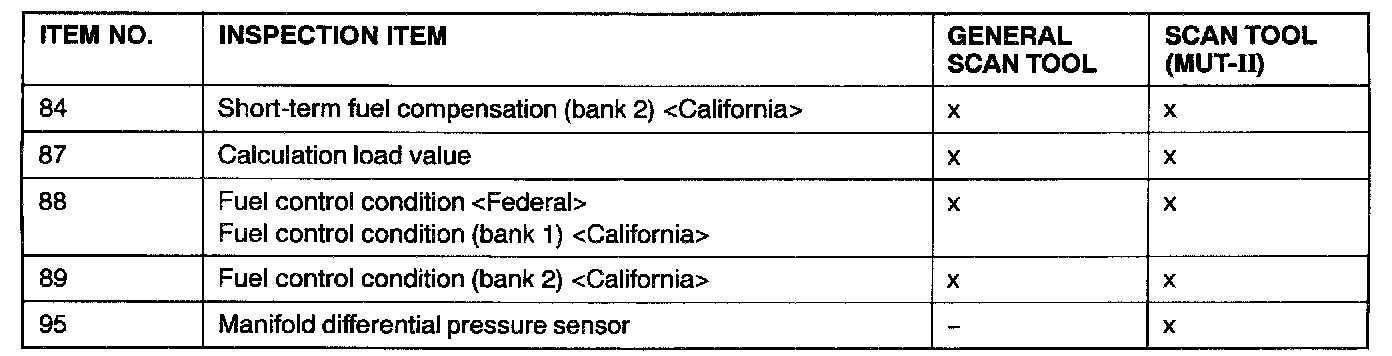

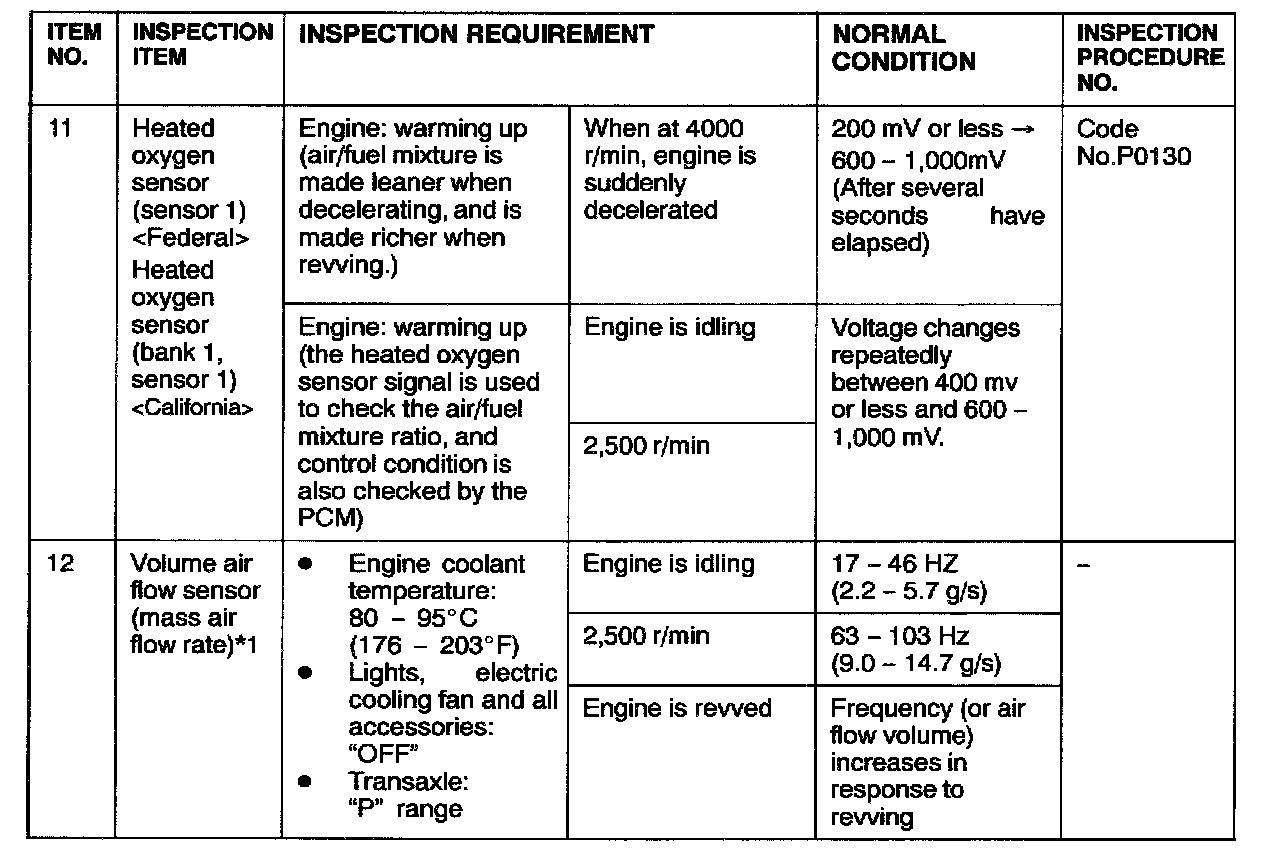

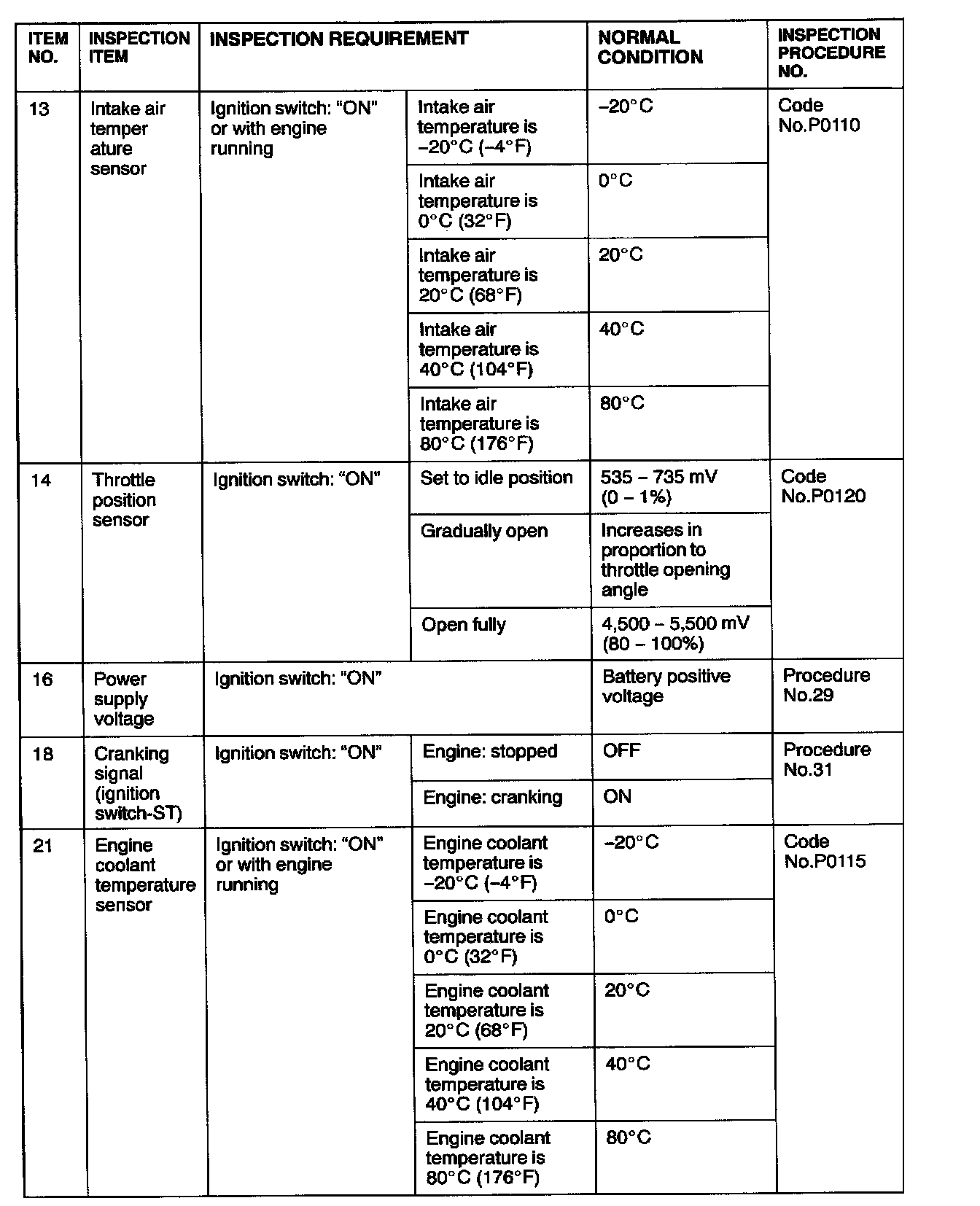

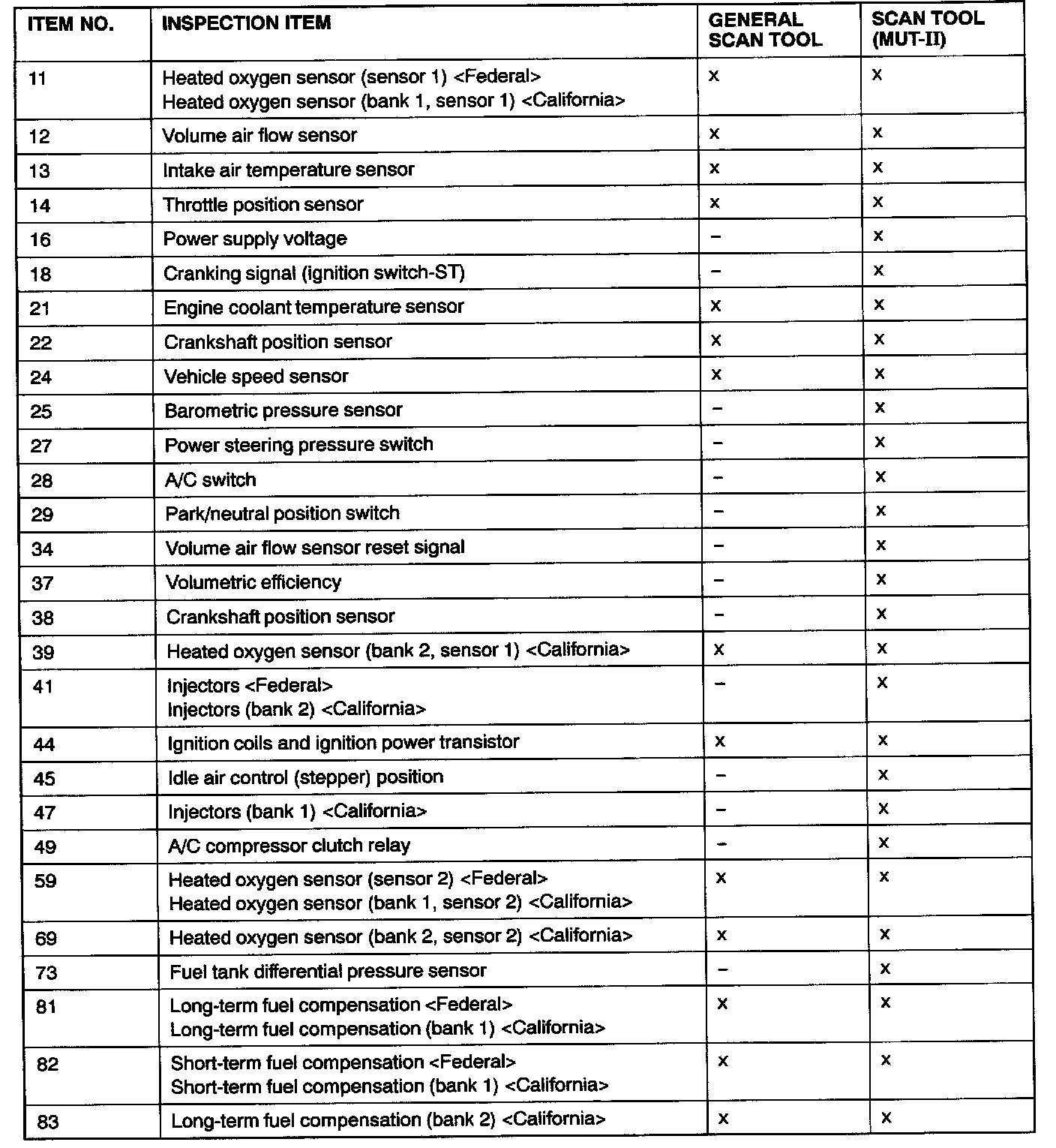

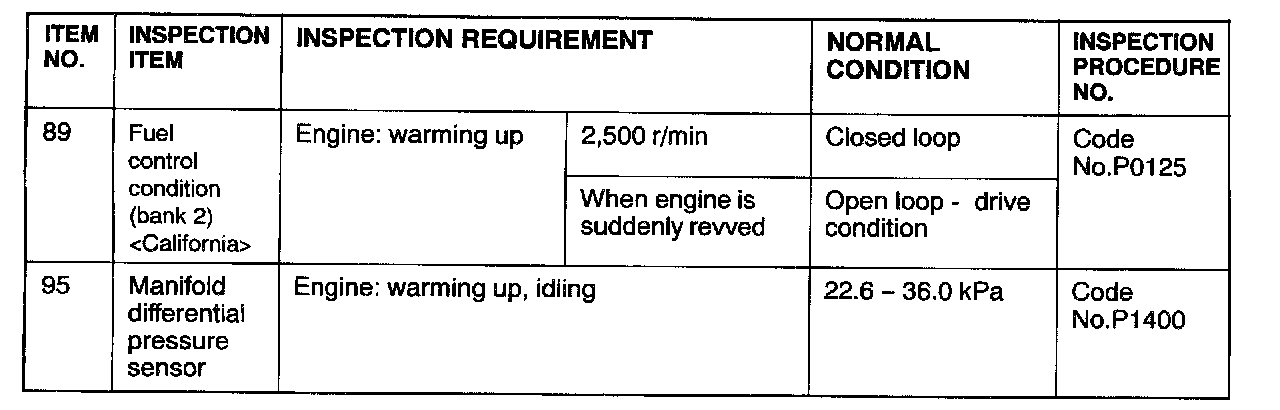

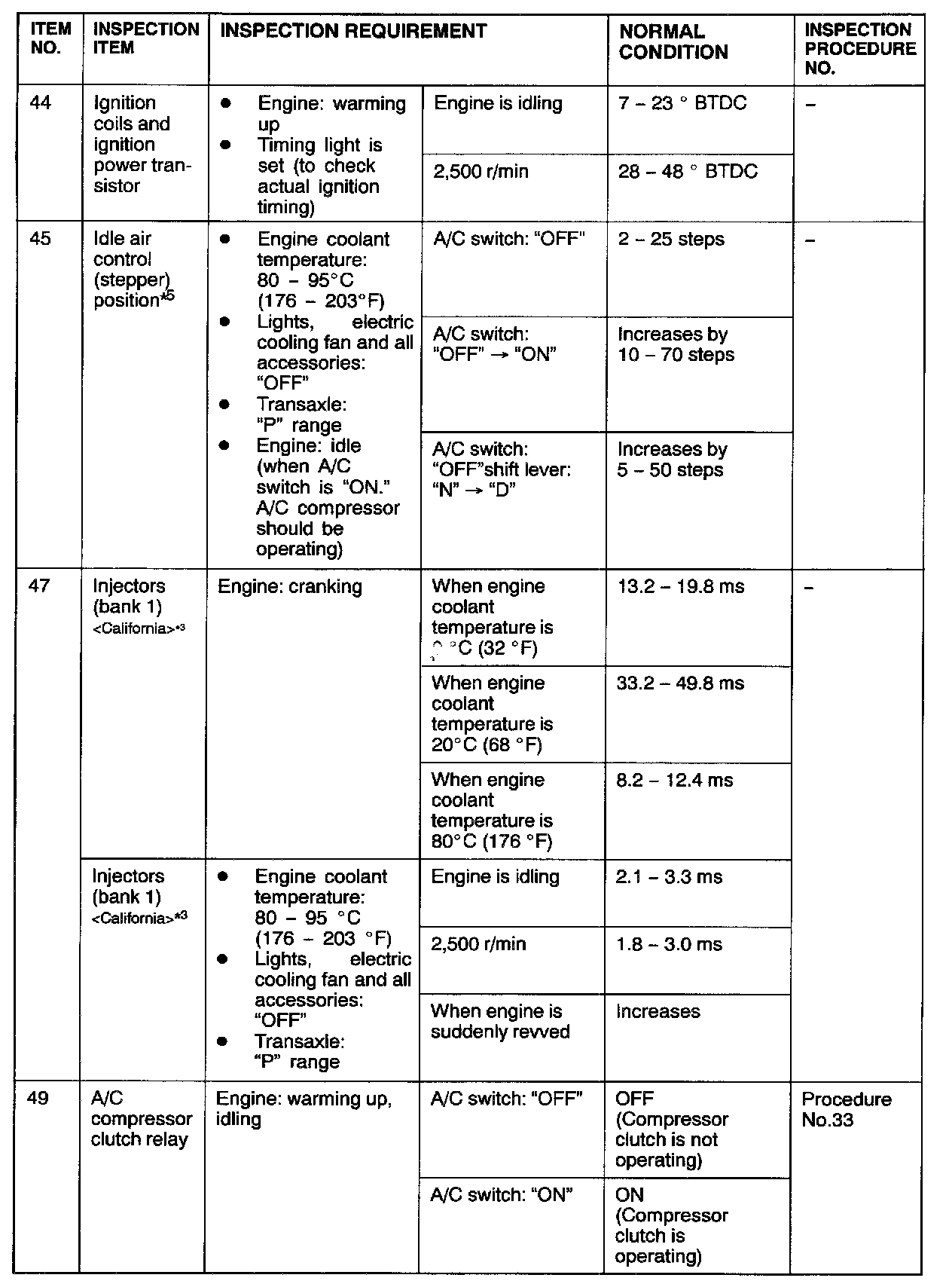

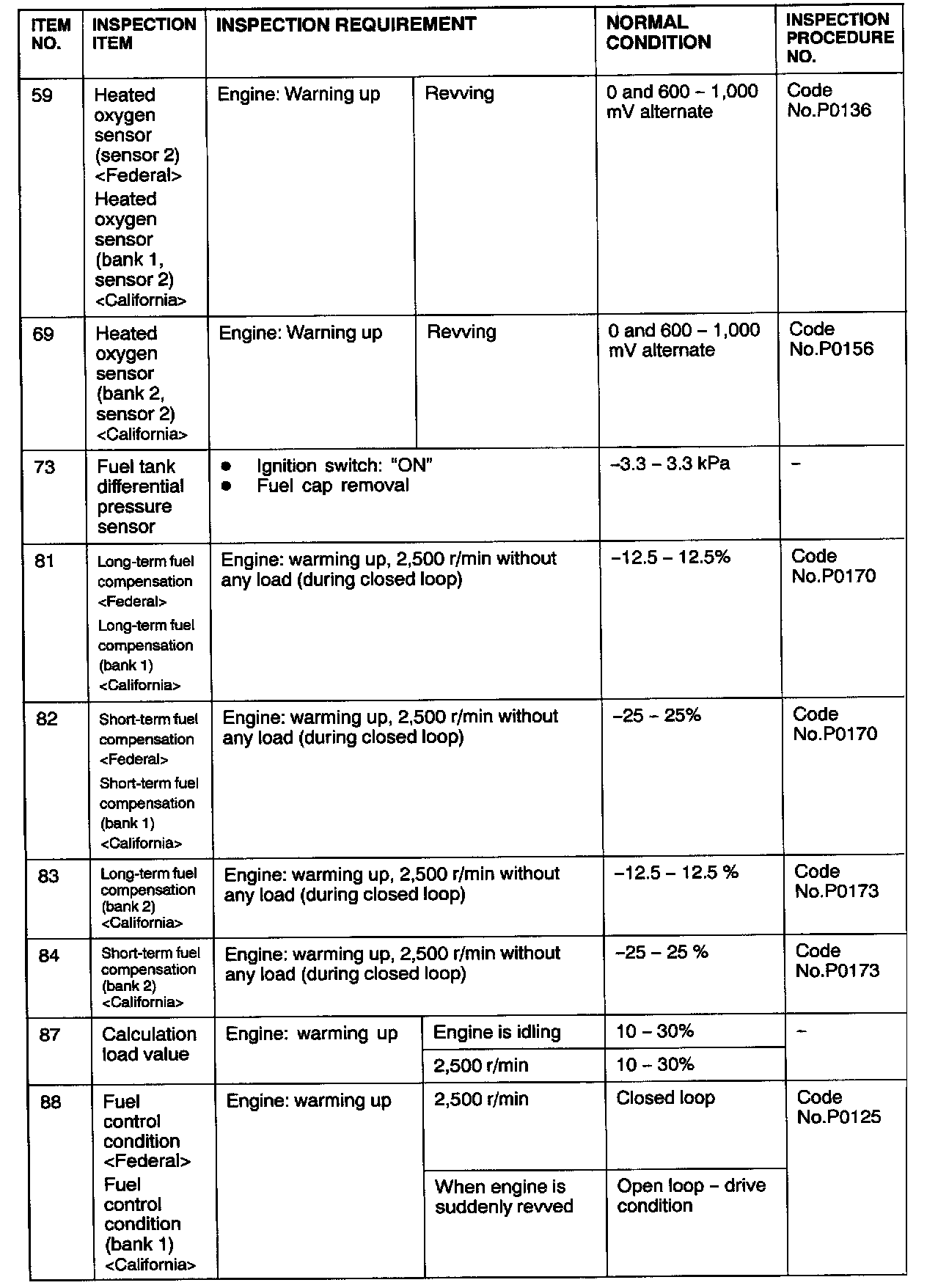

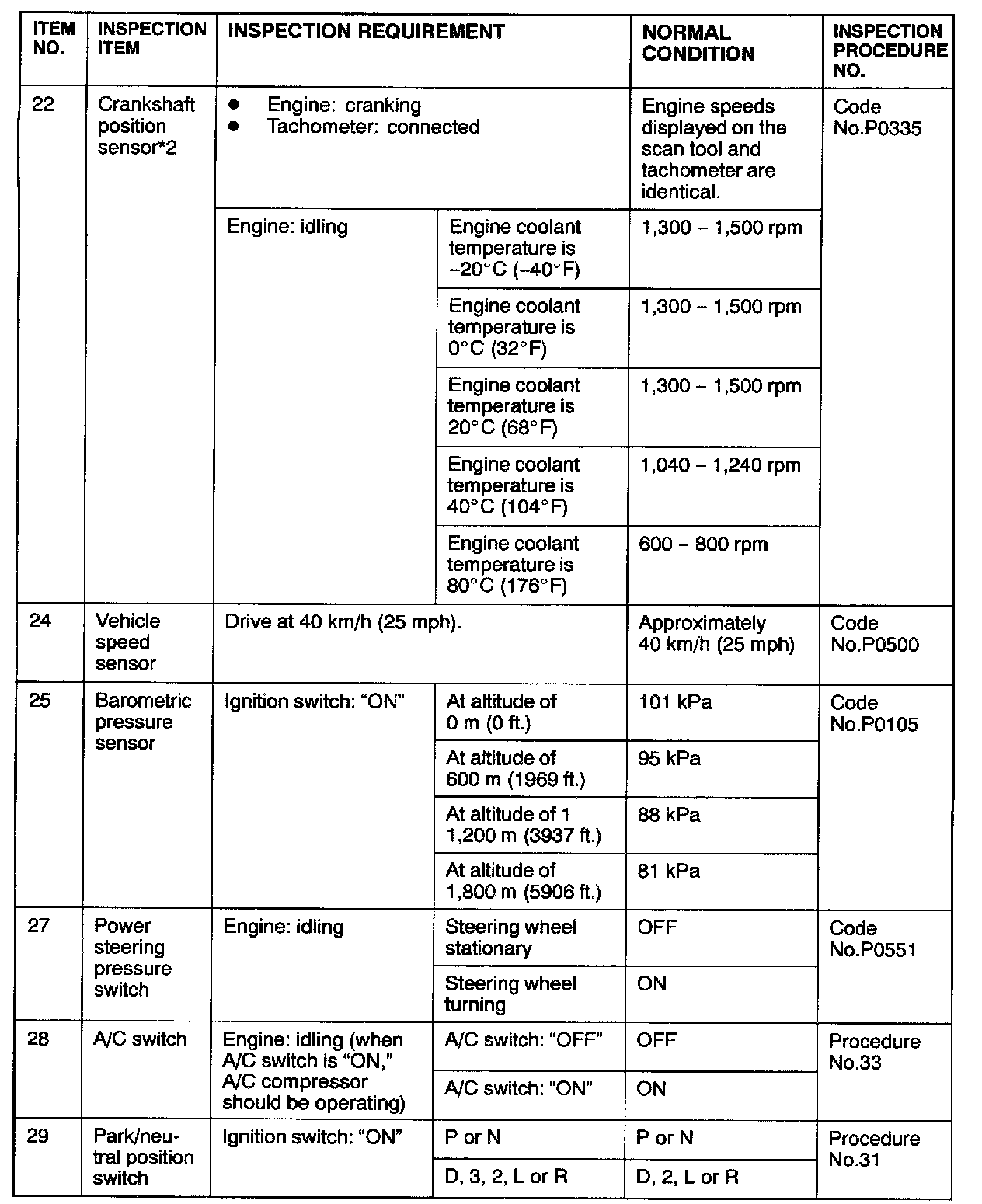

Data List Reference Table

Part 1 Of 2:

Part 2 Of 2:

CAUTION:
- When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

Part 1 Of 7:

Part 2 Of 7:

Part 3 Of 7:

Part 4 Of 7:

Part 5 Of 7:

Part 6 Of 7:

Part 7 Of 7:

NOTE: Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second close to the engine

NOTE: Bank 1 indicates the right bank cylinder, and bank 2 indicates the left bank cylinder.

NOTE: *1: In a new vehicle [driven approximately 500 km (311 mile) or less], the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency.

NOTE: *2: If the idle speed is lower than the standard value on a very cold engine (approximately -20 °C (-4 °F) even when the IAC motor is fully opened, the air volume limiter built in the throttle body could be defective.

NOTE: *3: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.

NOTE: *4: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10% longer than the standard time.

NOTE: *5: In a new vehicle [driven approximately 500 km (311 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value.
