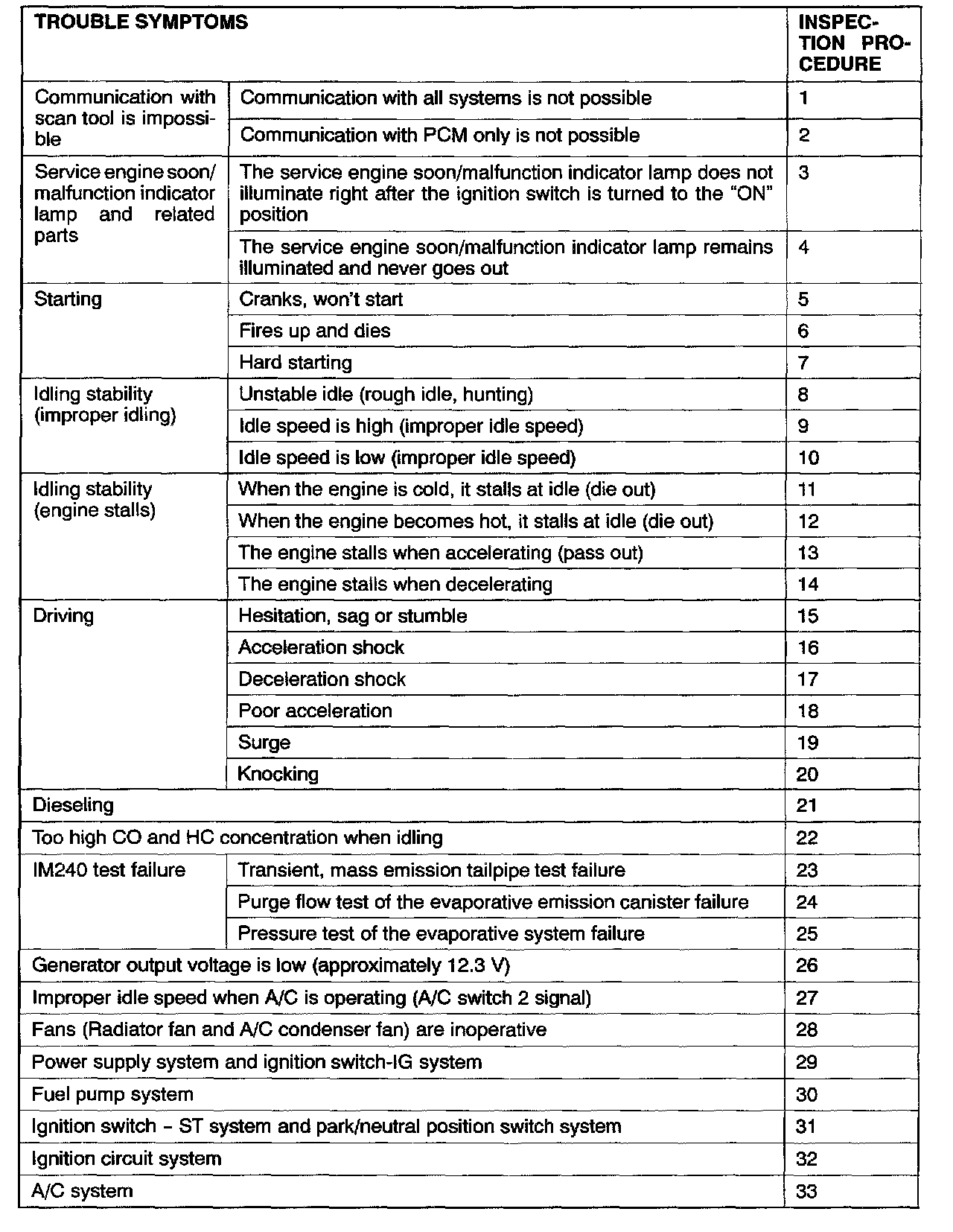

SYMPTOM CHART
NOTE:
Check that the PCM ground circuit is normal before checking for the cause of the problem.
