Axle Shaft Assembly
Axle Shaft Assembly

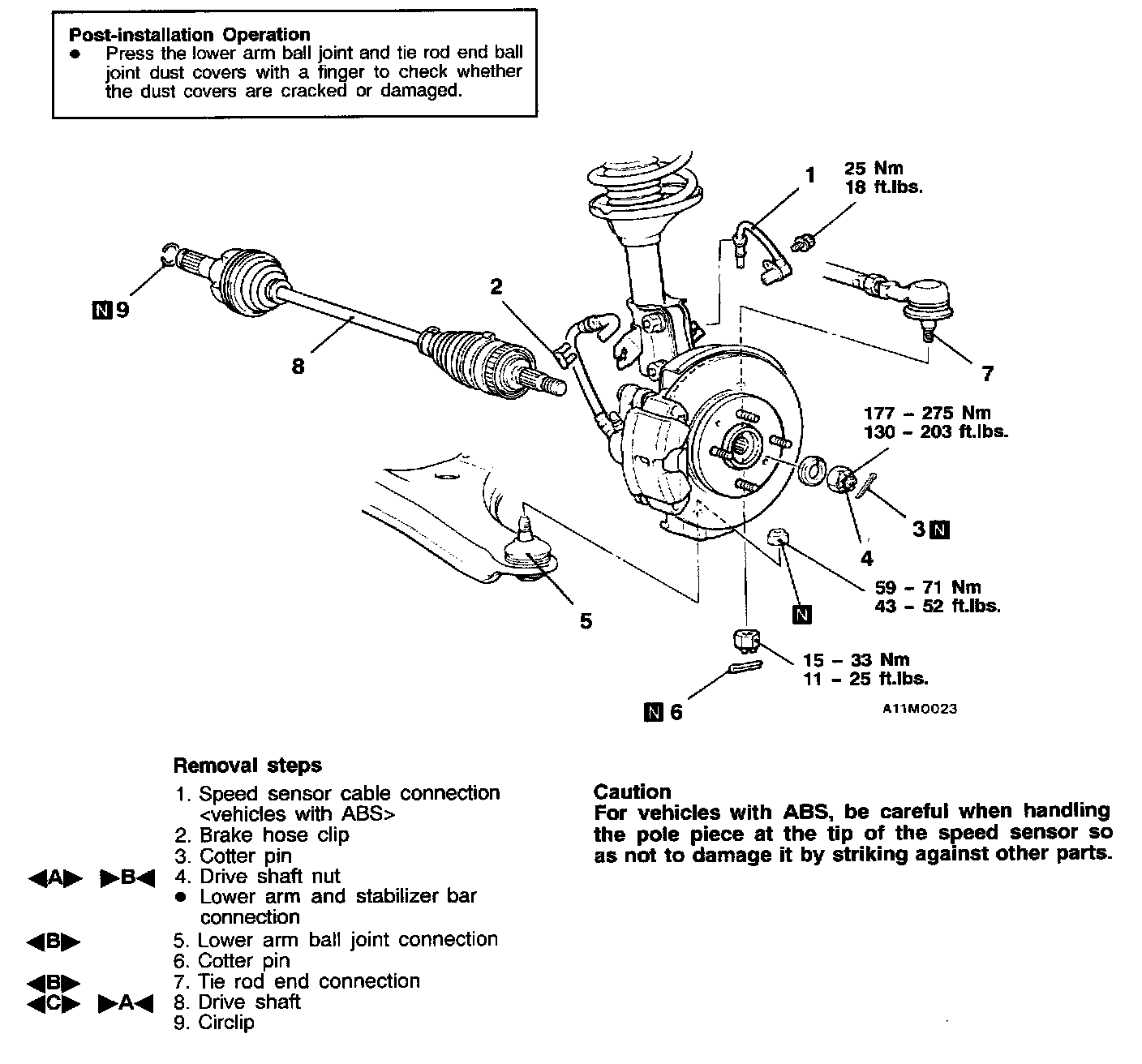

DRIVE SHAFT REPLACEMENT W/ RELATED COMPONENTS

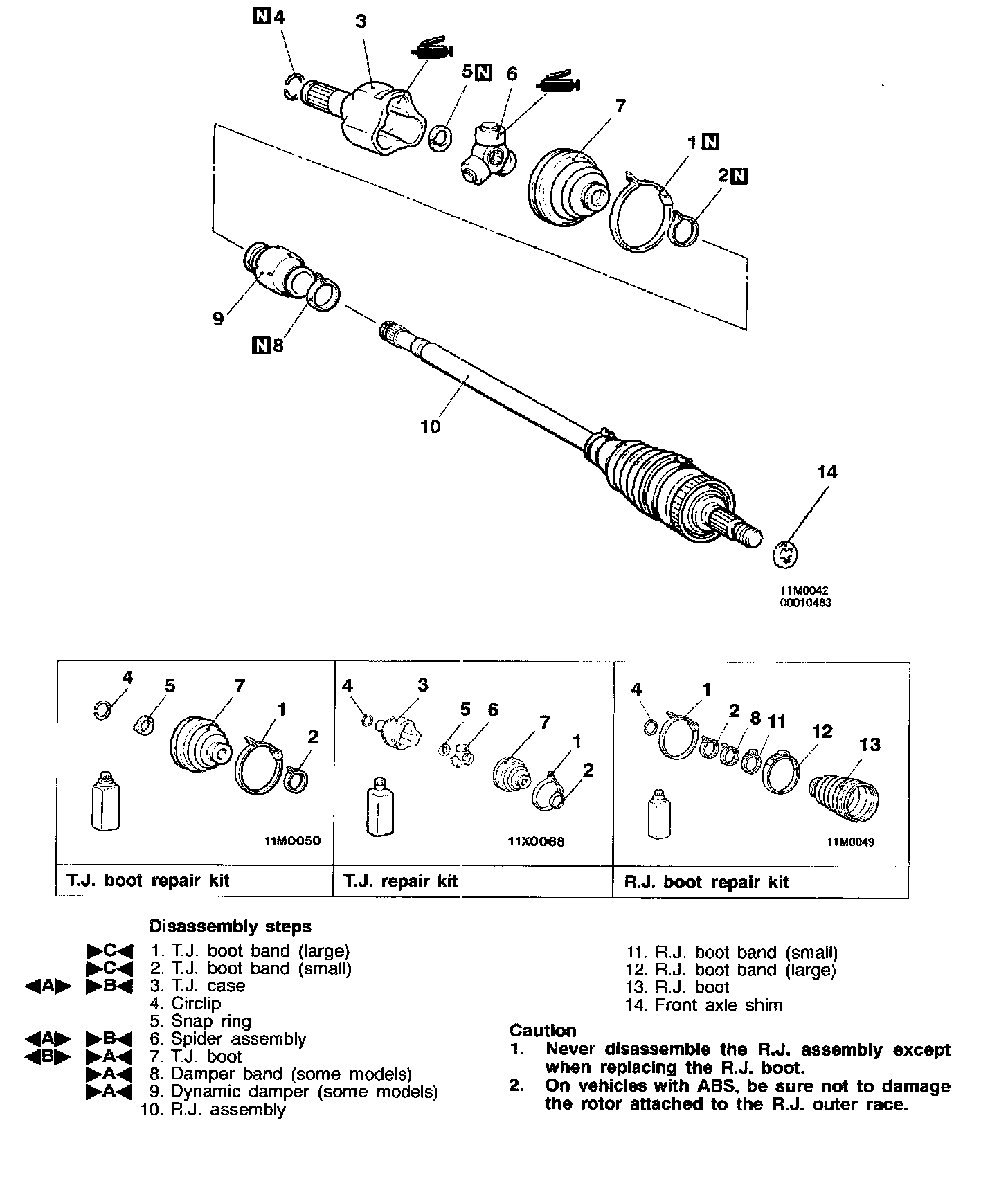

DRIVE SHAFT OVERHAUL W/ RELATED COMPONENTS
