Control Assembly: Service and Repair

REMOVAL SERVICE POINT

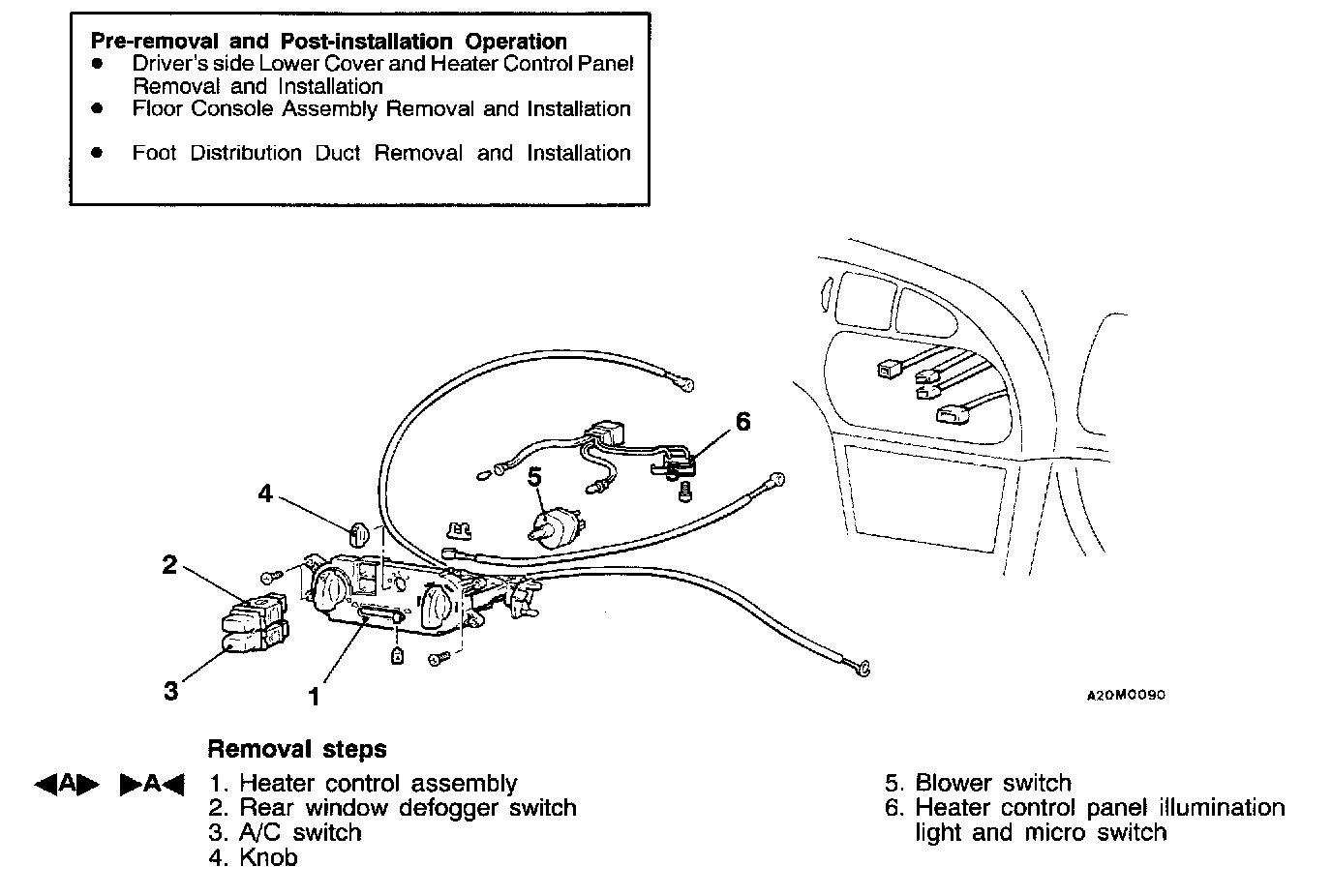

HEATER CONTROL ASSEMBLY REMOVAL

1. Remove the heater control assembly mounting screws.

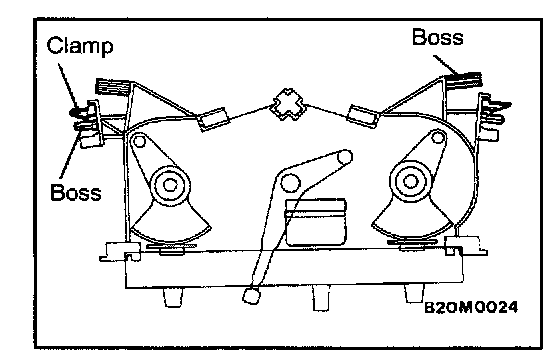

2. Bend the two clamps and the four bosses, which are inserted into the center reinforcement.
3. Remove the heater control assembly.

INSTALLATION SERVICE POINT

>A< HEATER CONTROL ASSEMBLY INSTALLATION

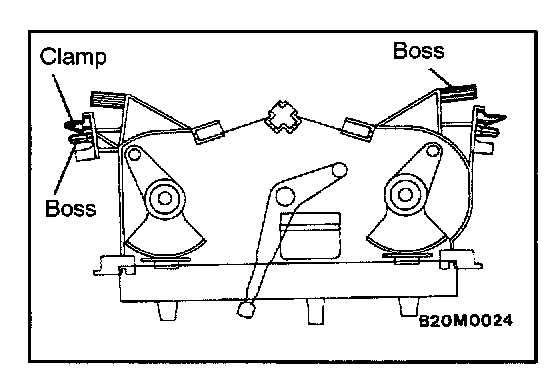

1. Cut off the bosses and clips shown before installing a new heater control assembly.
2. Install the heater control assembly mounting screws.

3. Follow the steps below to install the air outlet changeover damper lever cable.
1. Set the air outlet changeover control knob on the heater control assembly to the DEF position.

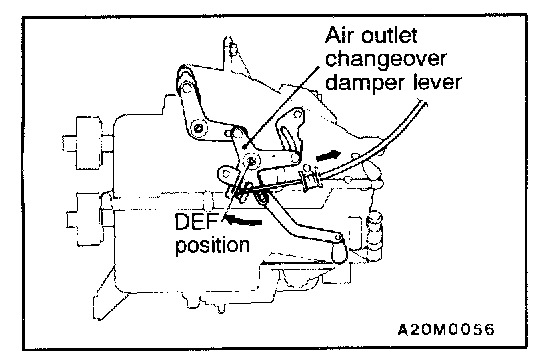

2. Set the air outlet changeover damper lever of the heater unit to the DEF position as shown in the illustration, and then connect the cable to the lever pin.
3. Push the outer cable in the direction of the arrow so that there is no looseness, and then secure it with clip.

4. Follow the steps below to install the air mix damper lever cable.
1. Set the temperature control knob on the heater control assembly to the MAX HOT position.

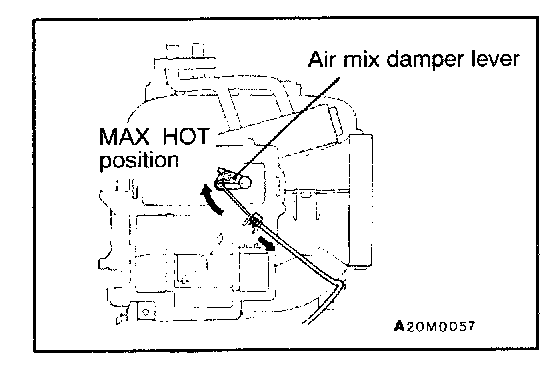

2. Set the air mix damper lever of the heater unit to the MAX HOT position as shown in the illustration, and then connect the cable to the lever pin.
3. Push the outer cable in the direction of the arrow so that there is no looseness, and then secure it with clip.

5. Follow the steps below to install the inside/outside air changeover damper lever cable.
1. Set the inside/outside air changeover control knob on the heater control assembly to the INSIDE position.
2. Set the inside/outside air changeover damper lever of the heater unit to the INSIDE position as shown in the illustration, and then connect the cable to the lever pin.
3. Push the outer cable in the direction of the arrow so that there is no looseness, and then secure it with clip.

6. After installation, ensure that each damper operates smoothly by operating the heater control assembly knob.
