Power Steering Pressure Switch: Locations

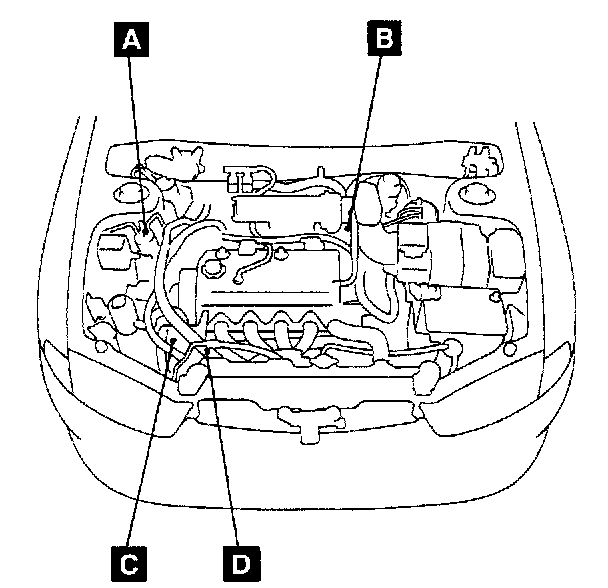

Other Devices Locations Overall View:

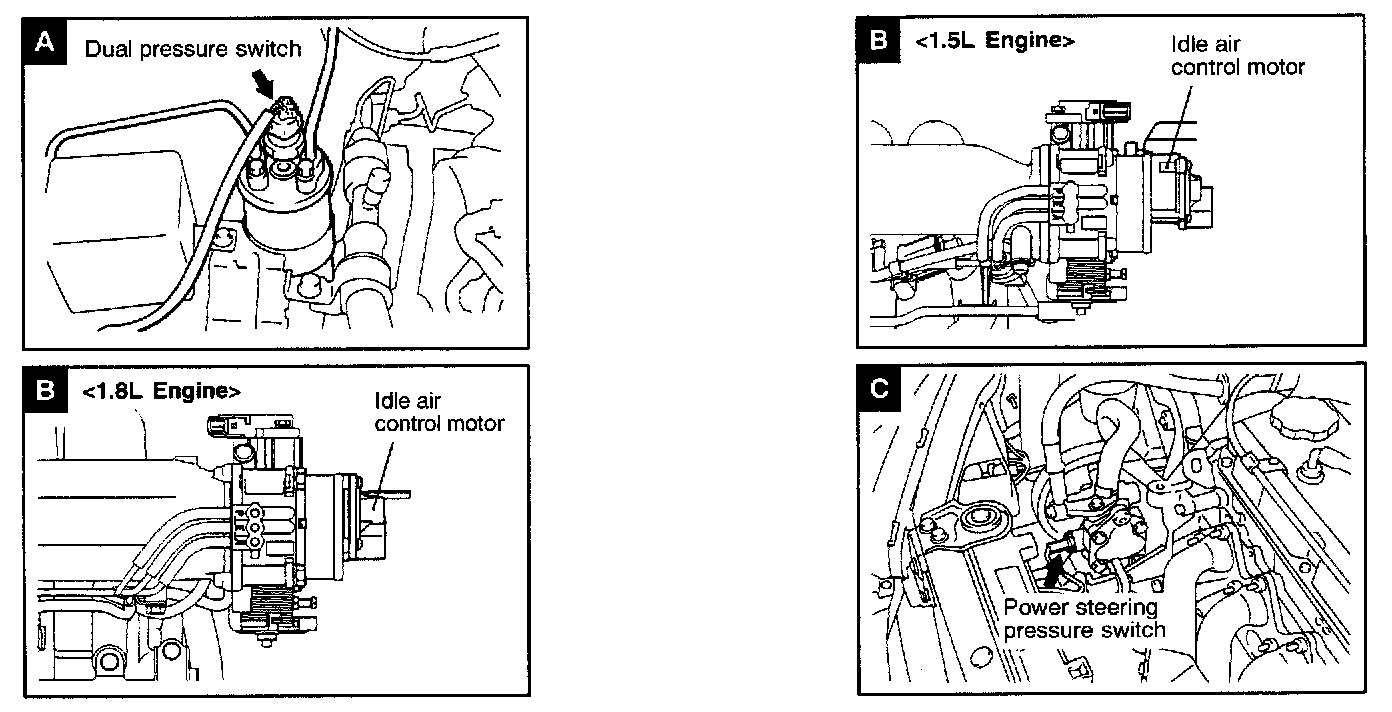

Other Devices Location Views A-C:





Name Symbol
Power Steering Pressure Switch C
