Main Relay (Computer/Fuel System): Locations

Relay Locations Overall View:

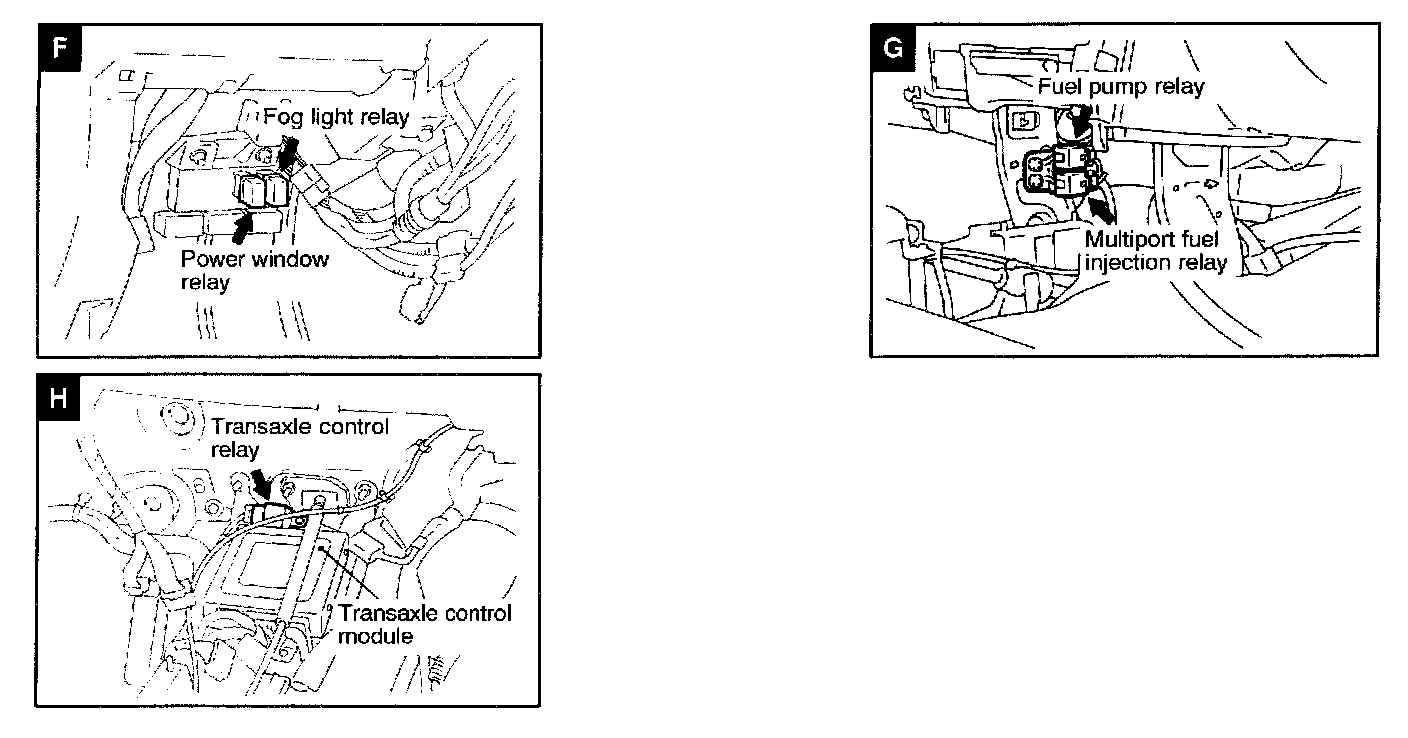

Relay Location Views F-H:





Name Symbol
Multiport Fuel Injection Relay G
