Description of On-Board Diagnostics
>>
Fail-Safe Function Reference Table
Fail-Safe Function Reference Table

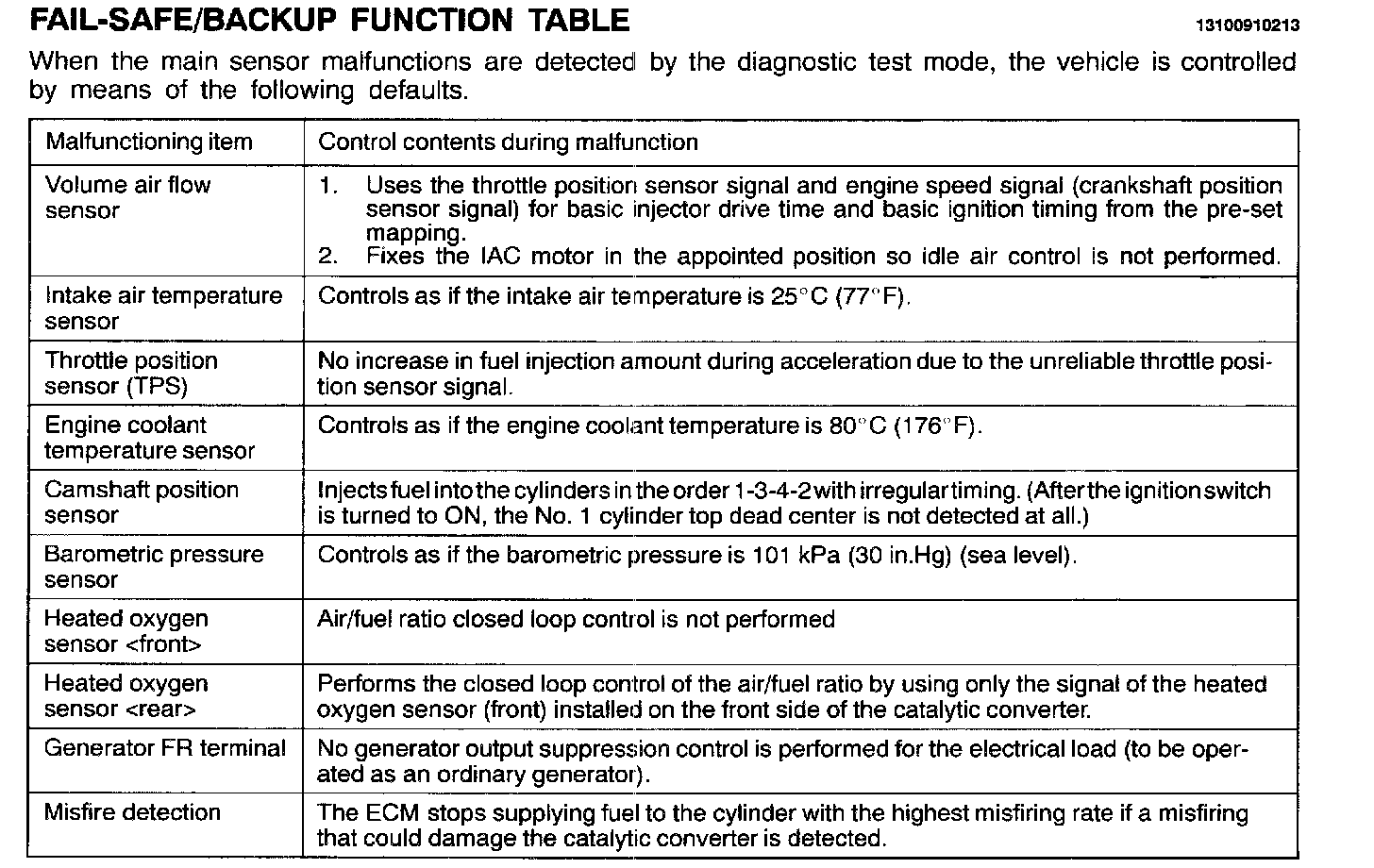

FAIL-SAFE/BACKUP FUNCTION TABLE:
