Oxygen Sensor (O2S) Monitor

Heated oxygen sensor monitor (P0130, P0136)

Test requirements/procedure
1. Test requirements/procedure
1. Engine coolant temperature: 80 °C (176 °F) or more (Engine fully warmed up)
2. Atmospheric temperature: -10 °C (14 °F) or more
3. Condition of A/T:
- Selector lever position: D range

2. One trip monitor will be completed by driving according to the steps below (from start to switch off). It will take 5 minutes.
*1: After warming up the engine, turn off the ignition switch.
*2: Start the engine, and accelerate to 56 - 64 km/h (35 - 40 mph).
<>3: Drive between 56 and 64 km/h (35 and 40 mph) at a constant throttle angle (by not moving the throttle pedal as much as possible) for 120 seconds or more during monitor. Moreover, do not turn the steering wheel suddenly.
*4: Decelerate and stop the vehicle. Then turn off the ignition switch.

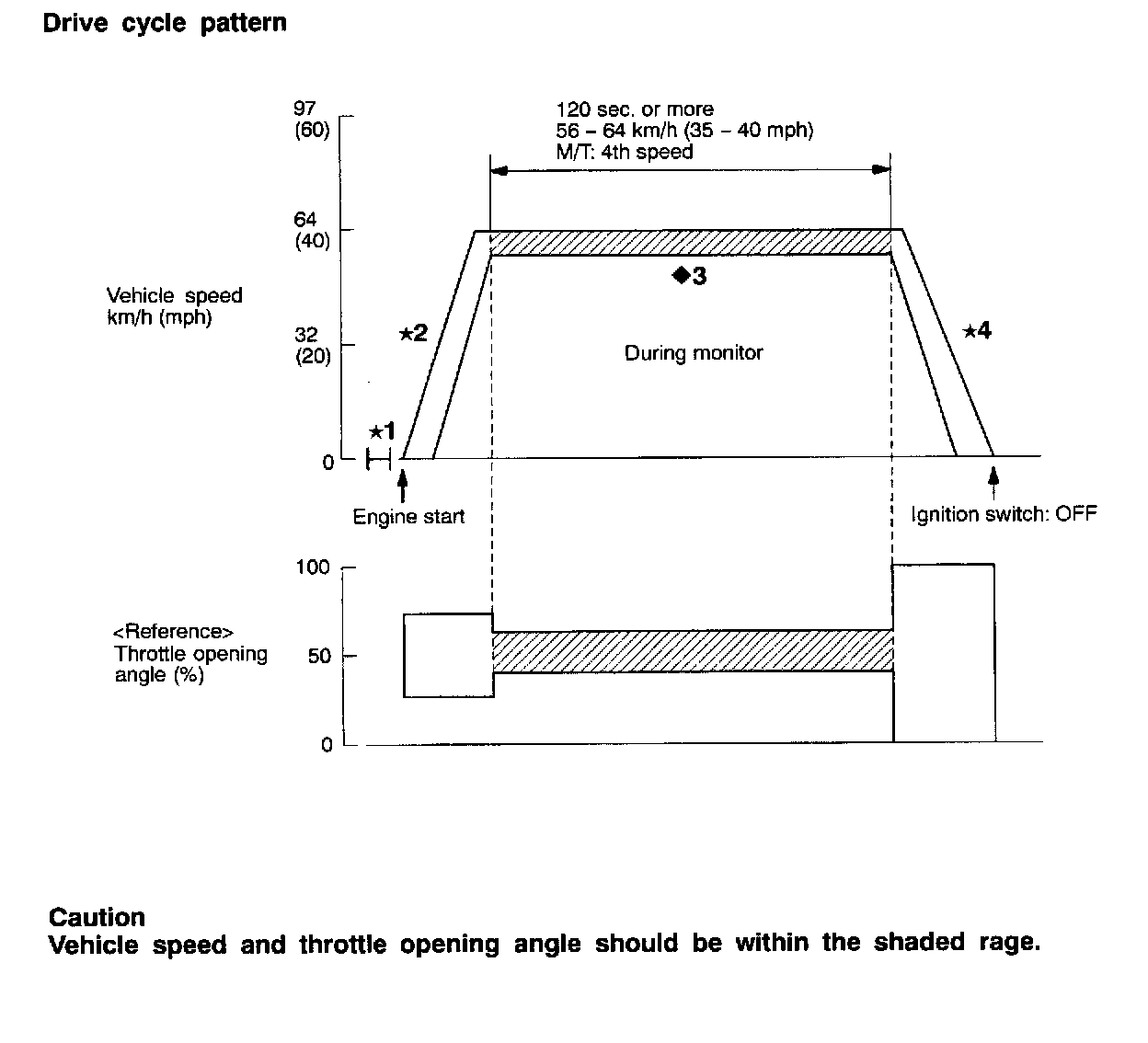

DRIVE CYCLE PATTERN:
